7.1.3 Changing Data
1. Press [Quick Menu] or [Main Menu] key.
2.
Use [
▲
] and [
▼
] keys keys to find parameter group to
edit.
3. Press [OK] key.
4.
Use [
▲
] and [
▼
] keys to find parameter to edit.
5. Press [OK] key.
6.
Use [
▲
] and [
▼
] keys to select correct parameter
setting. Or, to move to digits within a number, use
keys. Cursor indicates digit selected to change. [
▲
]
key increases the value, [
▼
] key decreases the value.
7. Press [Cancel] key to disregard change, or press [OK]
key to accept change and enter new setting.
7.1.4 Changing a Text Value
If the selected parameter is a text value, change the text value
by means of the up/down navigation keys.
The up key increases the value, and the down key decreases
the value. Place the cursor on the value to be saved and press
[OK].

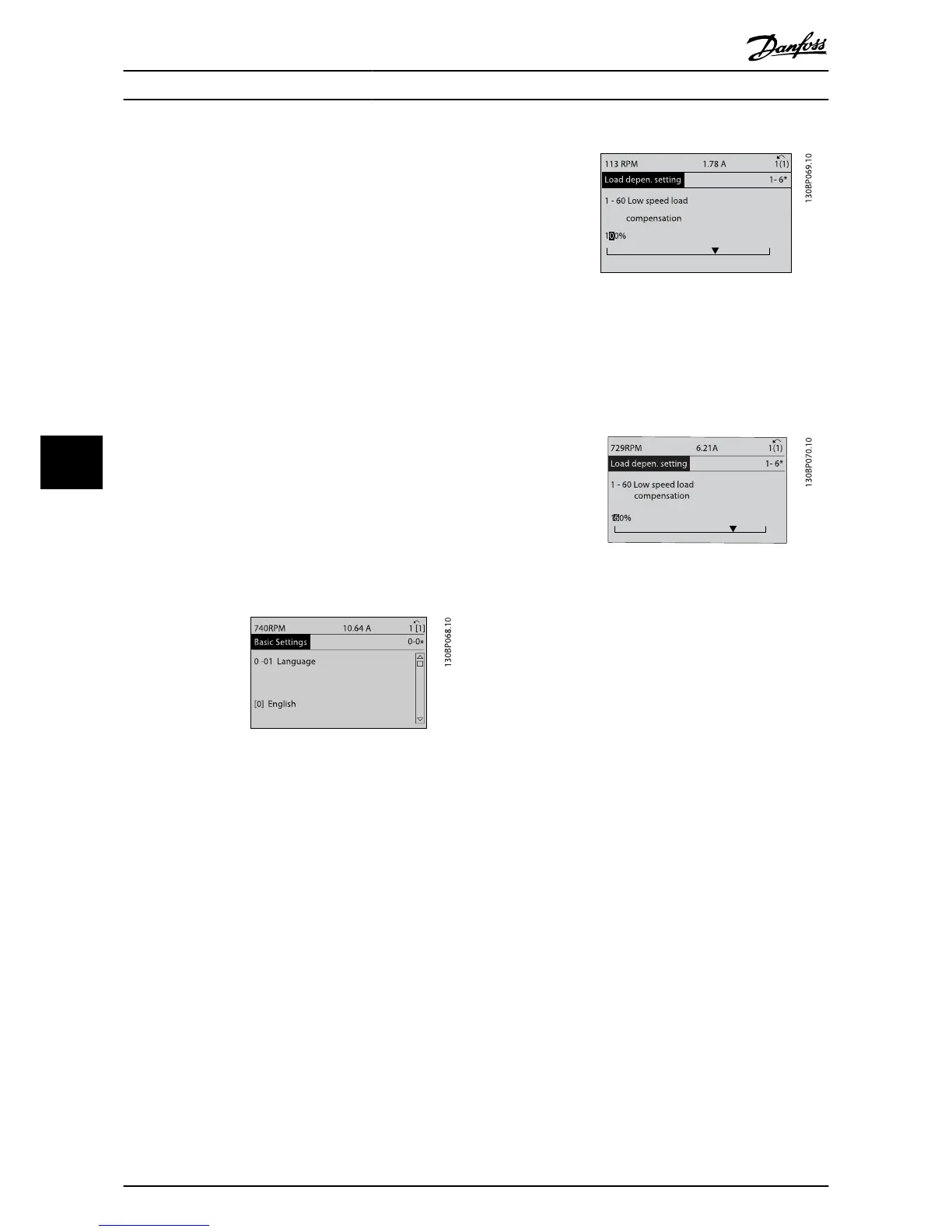

Illustration 7.9: Display example.
7.1.5 Changing a Group of Numeric Data
Values
If the chosen parameter represents a numeric data value,
change the chosen data value by means of the [◄] and [►]
navigation keys as well as the up/down [
▲
] [
▼
] navigation
keys. Use the ◄] and [►] navigation keys to move the cursor
horizontally.
Illustration 7.10: Display example.
Use the up/down navigation keys to change the data value.
The up key enlarges the data value, and the down key reduces
the data value. Place the cursor on the value to be saved and
press [OK].
Illustration 7.11: Display example.
7.1.6 Changing of Data Value, Step-by-Step
Certain parameters can be changed step by step or infinitely
variably. This applies to par. 1-20 Motor Power [kW],
par. 1-22 Motor Voltage and par. 1-23 Motor Frequency.
The parameters are changed both as a group of numeric data
values and as numeric data values infinitely variably.
7.1.7 Read-out and Programming of Indexed
Parameters
Parameters are indexed when placed in a rolling stack.
Par. 15-30 Alarm Log: Error Code to par. 15-32 Alarm Log: Time
contain a fault log which can be read out. Choose a parameter,
press [OK], and use the up/down navigation keys to scroll
through the value log.
Use par. 3-10 Preset Reference as another example:
Choose the parameter, press [OK], and use the up/down
navigation keys keys to scroll through the indexed values. To
change the parameter value, select the indexed value and
press [OK]. Change the value by using the up/down keys. Press
[OK] to accept the new setting. Press [Cancel] to abort. Press
[Back] to leave the parameter.
How to Programme the Frequ...
VLT
®
HVAC Drive Operating Instructions
64 MG.11.AD.02 - VLT
®
is a registered Danfoss trademark
7
7
