0-21 Display Line 1.2 Small
Option: Function:
[0] * None Select a variable for display in line 1, middle position.
The options are the same as listed for par. 0-20.
0-22 Display Line 1.3 Small
Option: Function:
[30120] * Mains Current
[A]
Select a variable for display in line 1,
right position. The options are the
same as listed for par. 0-20.
0-23 Display Line 2 Large
Option: Function:
[30100] * Output Current
[A]
Select a variable for display in line 2.
The options are the same as listed for
par. 0-20.
0-24 Display Line 3 Large
Select a variable for display in line 3.
Option: Function:
[30121] * Mains Frequency The options are the same as those
listed in 0-20 Display Line 1.1 Small.
0-25 My Personal Menu
Range: Function:
Application
dependent
*
[0 -
9999 ]
Define up to 50 parameters to appear in
the Q1 Personal Menu, accessible via the
[Quick Menu] key on the LCP. The
parameters will be displayed in the Q1
Personal menu in the order they are
programmed into this array parameter.
Delete parameters by setting the value to
‘0000’.
For example, this can be used to provide
quick, simple access to just one or up to
50 parameters which require changing on
a regular basis (e.g., for plant
maintenance reasons) or by an OEM to
enable simple commissioning of their
equipment.
3.2.4 0-3* LCP Custom Readout
It is possible to customize the display elements for various
purposes: *Custom Readout. Value proportional to speed
(linear, squared or cubed depending on unit selected in
0-30 Custom Readout Unit) *Display Text. Text string stored in
a parameter.

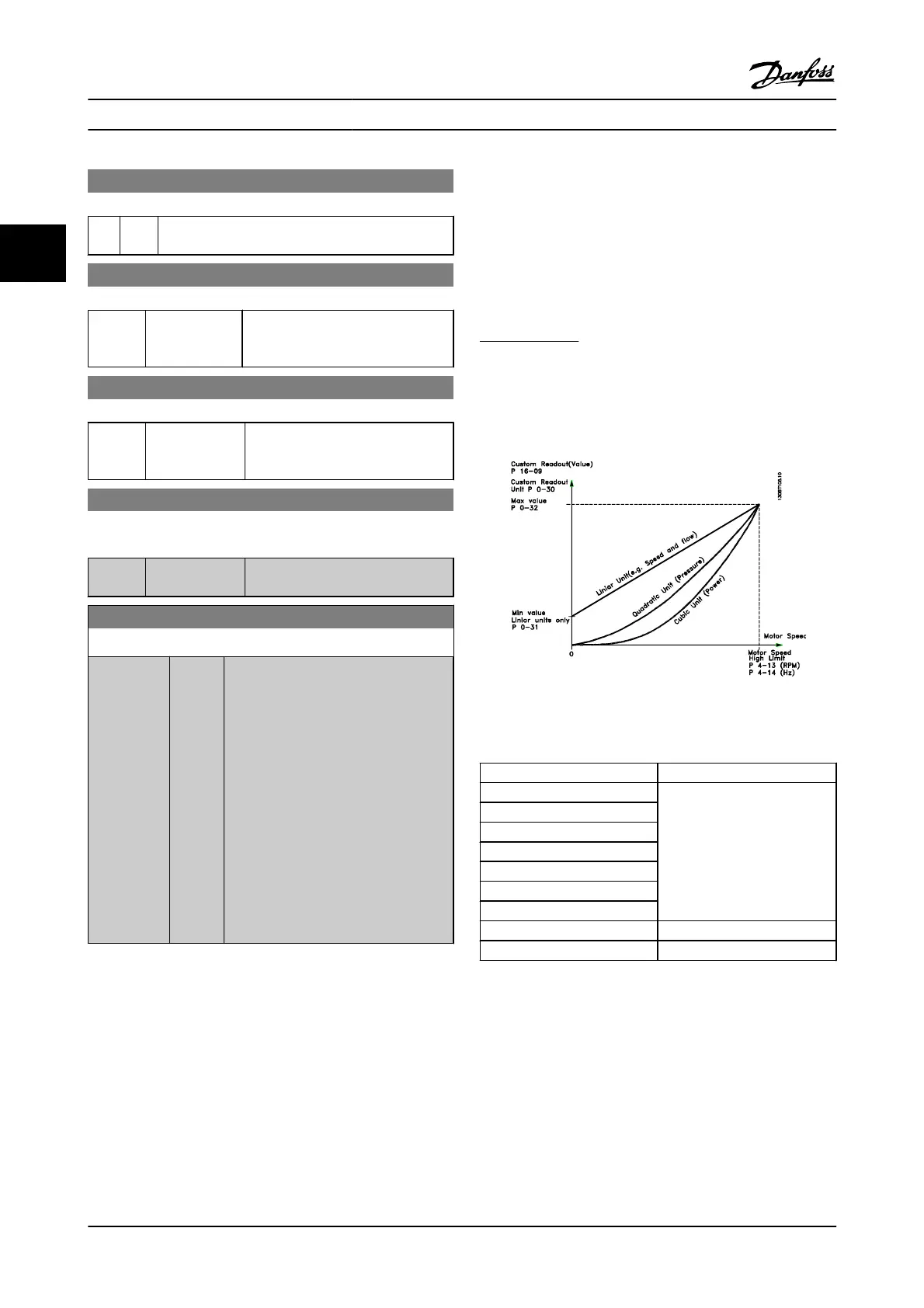

Custom Readout
The calculated value to be displayed is based on settings in
0-30 Custom Readout Unit, 0-31 Custom Readout Min Value
(linear only), 0-32 Custom Readout Max Value, 4-13 Motor
Speed High Limit [RPM], 4-14 Motor Speed High Limit [Hz] and
actual speed.
The relation will depend on the type of unit selected in
0-30 Custom Readout Unit:
Unit Type Speed Relation
Dimensionless Linear
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Pressure Quadratic
Power Cubic
Parameter Descriptions FC 300 Programming Guide
3-8 MG.33.MA.22 - VLT
®
is a registered Danfoss trademark
3
