4-35 Tracking Error
Range: Function:
10 RPM
*
[1 - 600
RPM]
Enter the maximum permissible speed error
between the motor speed and the output of
the ramp when not ramping. In open-loop,
the motor speed is estimated, and in closed-
loop, it is the feedback from encoder/
resolver.
4-36 Tracking Error Timeout
Range: Function:
1.00 s
*
[0.00 - 60.00 s] Enter the timeout period during which
an error greater than the value set in
4-35 Tracking Error is permissible.
4-37 Tracking Error Ramping
Range: Function:
100 RPM
*
[1 - 600
RPM]
Enter the maximum permissible speed
error between the motor speed and the
output of the ramp when ramping. In
open-loop, the motor speed is estimated,
and in closed-loop, it is the feedback from
encoder/resolver.
4-38 Tracking Error Ramping Timeout
Range: Function:
1.00 s
*
[0.00 - 60.00 s] Enter the timeout period during which
an error greater than the value set in
4-37 Tracking Error Ramping while
ramping is permissible.
4-39 Tracking Error After Ramping Timeout
Range: Function:
5.00 s
*
[0.00 - 60.00 s] Enter the timeout period after ramping
where 4-37 Tracking Error Ramping and
4-38 Tracking Error Ramping Timeout are
still active.
3.6.3 4-5* Adjustable Warnings
Use these parameters to adjust warning limits for current,
speed, reference and feedback. Warnings that are shown on
the display can be programmed as an output or sent via
serial bus.
Warnings are shown on display, programmed output or
serial bus.
4-50 Warning Current Low
Range: Function:
0.00 A
*
[Application
dependant]
Enter the I
LOW
value. When the motor
current falls below this limit, the display
reads Current Low. The signal outputs can
be programmed to produce a status
signal on terminal 27 or 29 (FC 302 only)
and on relay output 01 or 02 (FC 302

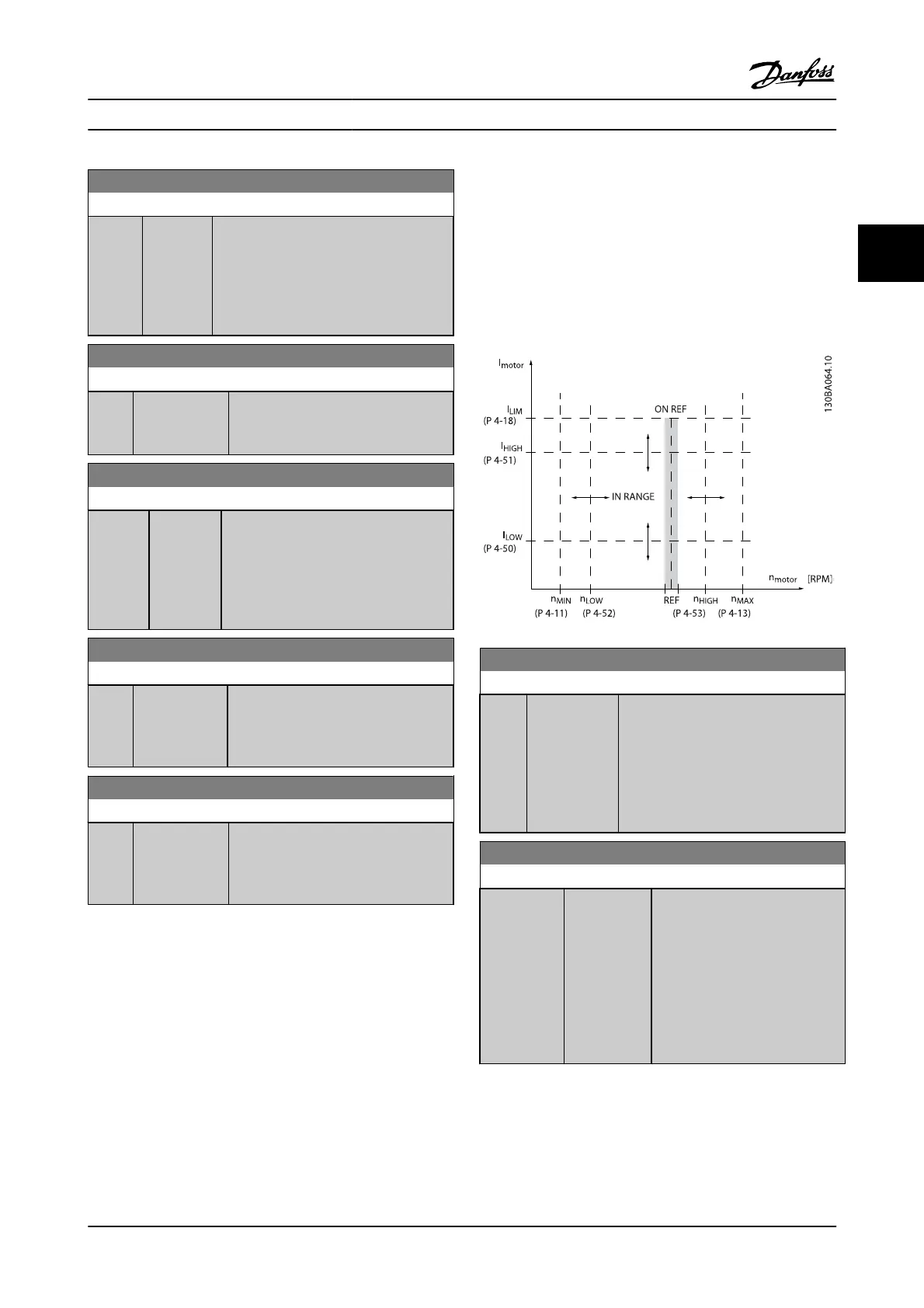

only). Refer to the drawing in this section.
4-51 Warning Current High
Range: Function:
Application
dependent
*
[Application
dependant]
Enter the I
HIGH
value. When the
motor current exceeds this limit,
the display reads Current High. The
signal outputs can be
programmed to produce a status
signal on terminal 27 or 29 (FC 302
only) and on relay output 01 or 02
(FC 302 only). Refer to the drawing
in this section.
Parameter Descriptions FC 300 Programming Guide
MG.33.MA.22 - VLT
®
is a registered Danfoss trademark 3-45
3
3
