8.3.6 MDCIC in Parallel Drive Systems
130BF051.10
1
2
3
4
6
5
7
8
9

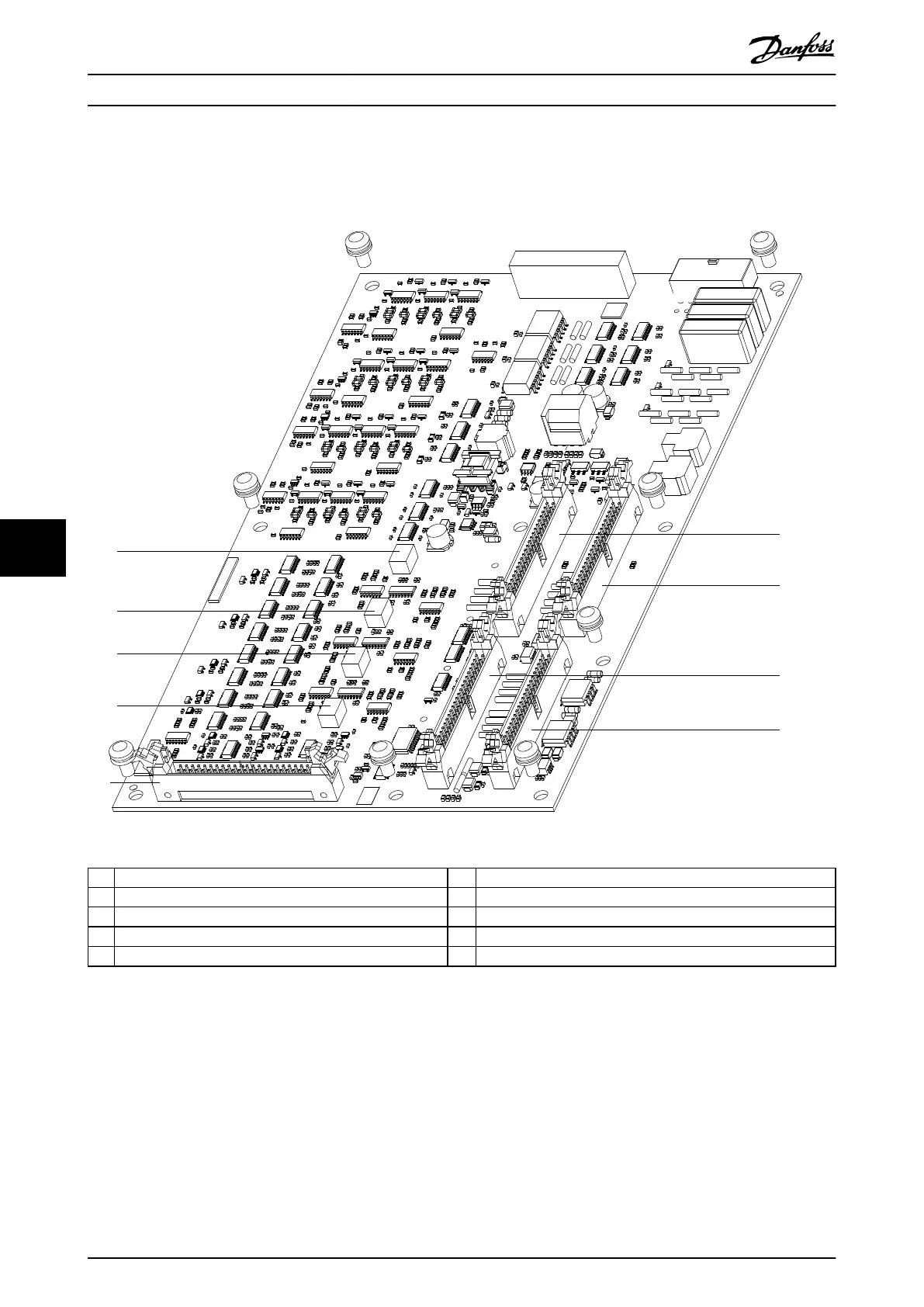

1 MK110: Connector for current scaling card for module 4 6 MK113: Connector to module 3
2 MK109: Connector for current scaling card for module 3 7 MK114: Connector to module 4
3 MK108: Connector for current scaling card for module 2 8 MK111: Connector to module 1
4 MK107: Connector for current scaling card for module 1 9 MK112: Connector to module 2
5 MK100: MDCIC-to-control card connection – –
Illustration 8.6 MDCIC in Parallel Drive Systems
Test Procedures
VLT
®
FC Series, D1h–D8h, Da2/Db2/Da4/Db4, E1h–E4h, J8/J9
96 Danfoss A/S © 02/2019 All rights reserved. MG94A502
