Dimensions
Connection details
Suction and discharge
connections
Oil drain connection
Oil equalisation connection
Oil sight glass
Schrader

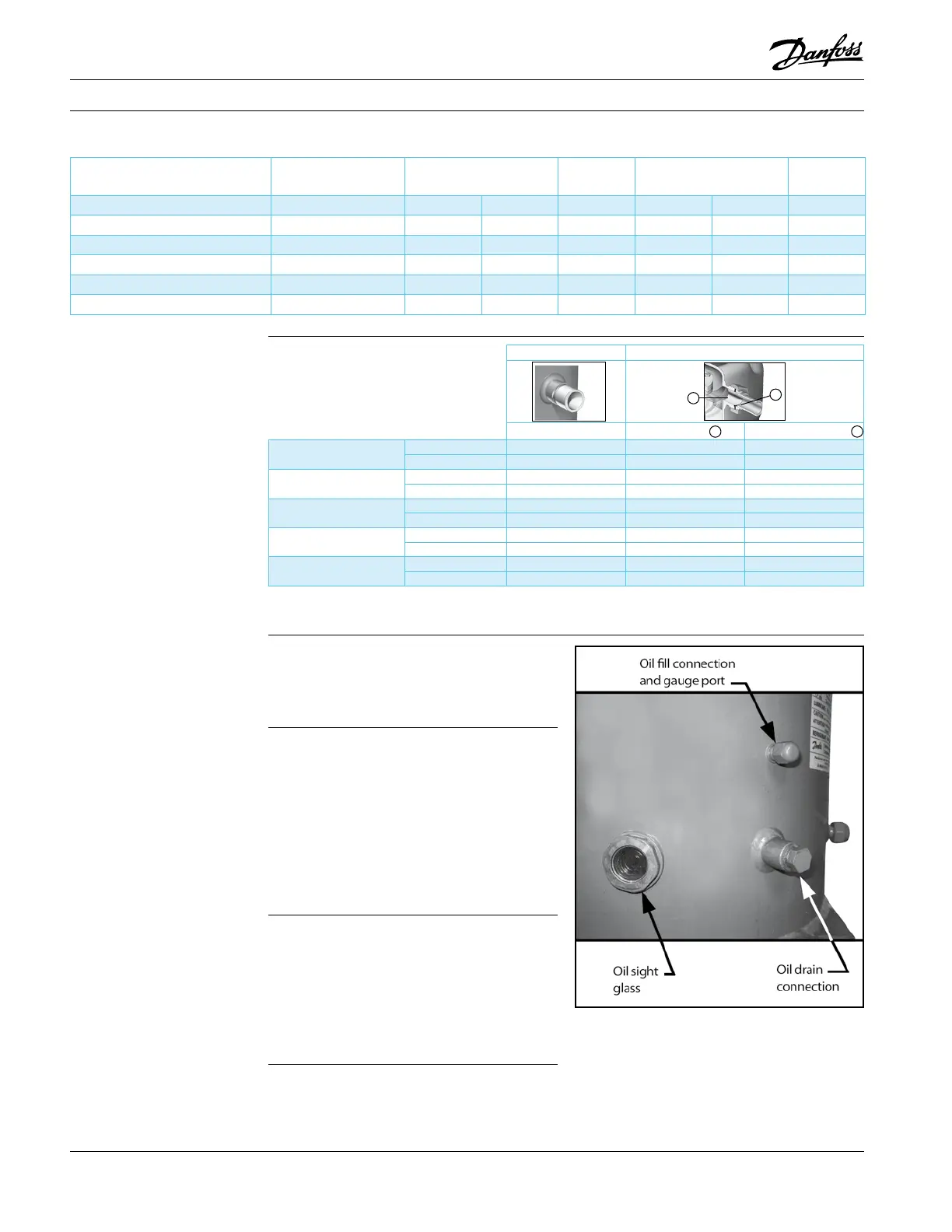

The oil drain connection allows oil to be removed
from the sump for changing, testing, etc. The
tting contains an extension tube into the oil
sump to more eectively remove the oil. The
connection is a female 1/4" are tting.
Note: on SY/SZ 240 to 380, it is not possible to
drain oil from the suction connection.
SM/SZ 112-124-147: 1"3/4 rotolock connector
allowing use of 1"3/4-7/8" or 1"3/4-1"1/8
SY/SZ240-300-380: 1/2" are
Other models: 3/8" are
This connection must be used to mount an oil
equalisation line when two or more compressors
are mounted in parallel (please refer to
Danfoss Parallel Application Guide lines
reference FRCC.PC.005 for details).
The oil ll connection and gauge port is a 1/4"
male are connector incorporating a schrader
valve.
All Danfoss SM / SY / SZ scroll compressors come
equipped with a sight glass (1"1/8-18 UNF) which
may be used to determine the amount and
condition of the oil contained within the sump.
Model
SM/SZ084-090-100-110-
120-148-161
SM/SZ 175 - SM/SZ/SY185
SM 112-124 -
SM/SZ 147
SY/SZ 240 - 300 SY/SZ 380
Version V K-R-S-W-Y C-J-P-U-X AL MA - MB AA - AB AA - AB
Suction and discharge connection brazed rotolock brazed brazed rotolock brazed brazed
Oil sight glass threaded threaded threaded threaded threaded threaded threaded
Oil equalisation connection 3/8’’ are 3/8’’ are 3/8’’ are rotolock 1"3/4 1/2’’ are 1/2’’ are 1/2’’ are
Oil drain connection - 1/4’’ are 1/4’’ are - 1/4’’ are 1/4’’ are 1/4’’ are
Low pressure gauge port (schrader) 1/4’’ are 1/4’’ are 1/4’’ are 1/4" are 1/4’’ are 1/4’’ are 1/4’’ are
Brazed version Rotolock version
Brazed Rotolock Sleeve included
SM/SZ 084-090-100
Suction 1’’ 1/8 - -
Discharge 3/4’’ - -
SM/SZ 110-112-120-
124-147-SM148&161
Suction 1’’ 3/8 - -
Discharge 7/8’’ - -
SM/SZ 175-185
Suction 1’’ 5/8 2’’ 1/4 1’’ 3/8
Discharge 1’’ 1/8 1’’ 3/4 7/8’’
SY/SZ 240-300
Suction 1’’ 5/8 2’’ 1/4 1’’ 5/8
Discharge 1’’ 1/8 1’’ 3/4 1’’ 1/8
SY/SZ 380
Suction 2’’ 1/8 - -
Discharge 1’’ 3/8 - -
1
2
2
1
Application guidelines
14
FRCC.PC.003.A5.22
