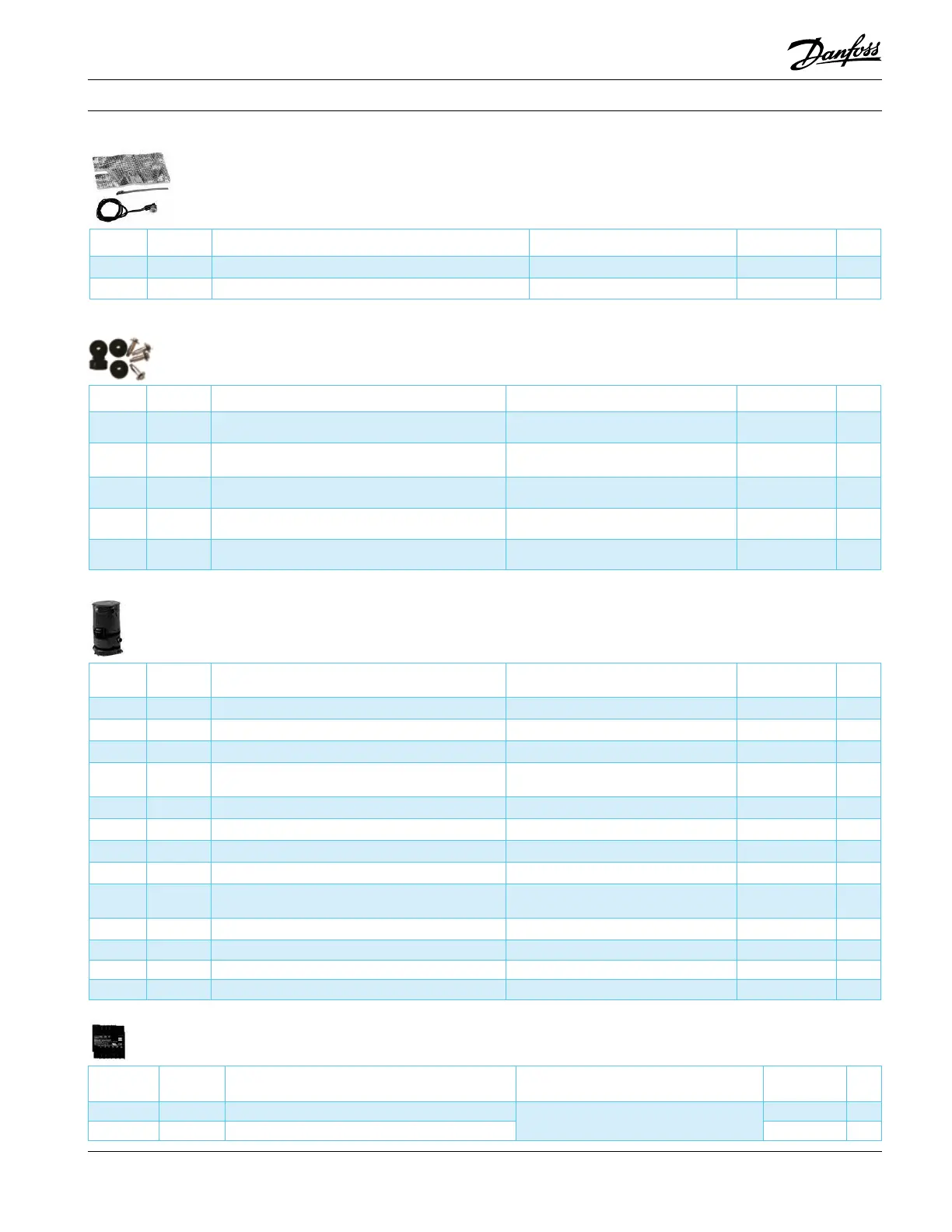

Accessories
Acoustic hoods
Mounting hardware
Discharge temperature protection
Motor protection modules
Type Code n° Description Application Packaging
Pack
size
8169015 Electronic motor protection module, 24 V AC
SY/SZ240-295-380-485
Single pack 1
8169016 Electronic motor protection module, 115/230 V Single pack 1
Type Code No Description Application Packaging
Pack
Size
7755011 Acoustic hood for scroll compressor S084-S090-S100 SM/SZ084-090-100 Single pack 1
7755010 Acoustic hood for scroll compressor S110-S120 SM/SZ110 & SM/SZ120 Single pack 1
7755009 Acoustic hood for scroll compressor S115-S125 SM/SZ125 Single pack 1
7755017
Acoustic hood for scroll compressor S148-S161
(except code 3)
SM/SZ148.161 except code 3 Single pack 1
7755008 Acoustic hood for scroll compressor S160 SM/SZ160 Single pack 1
7755007 Acoustic hood for scroll compressor S175-S185 SM/SZ175-185 Single pack 1
7755016 Acoustic hood for scroll compressor S240-S300 SY/SZ240-300 Single pack 1
7755022 Acoustic hood for scroll compressor S380 SY/SZ380 Single pack 1
120Z0035 Acoustic hood for scroll compressor, SM112-124-147
SM112-124-147 (except SM147 code 3)
SZ147
Single pack 1
120Z0135 Acoustic hood for scroll compressor, SM147-3 SM/SZ147 code 3 Single pack 1
120Z0356 Bottom insulation SM/SZ084-090-100-110-120-148-161 Single pack 1
120Z0353 Bottom insulation SM/SZ175&SM/SY/SZ185 Single pack 1
120Z0355 Bottom insulation SY/SZ240 to SY/SZ380 Single pack 1
Type Code No Description Application Packaging
Pack
Size
8156138
Mounting kit for scroll compressors. Grommets,
sleeves, bolts, washers
SM/SZ084-090-100-110-120-148-161-175-
185
Single pack 1
8156147
Mounting kit for scroll compressors. Grommets,
sleeves, bolts, washers, rotolock nuts, solder sleeves,
gaskets
SM/SZ148-161-175-185 Single pack 1
8156144 Mounting kit for scroll compressors. Grommets, sleeves SY/SZ240 -300 Single pack 1
8156148
Mounting kit for scroll compressors. Grommets,
sleeves, rotolock nuts, solder sleeves, gaskets
SY/SZ240-300 Single pack 1
120Z0066
Mounting kit for scroll compressors. Grommets,
sleeves, bolts, washers
SM112-124-147 - SZ147 Single pack 1
Type Code No Description Application Packaging
Pack
Size
7750009 Discharge thermostat kit All models Multipack 10
7973008 Discharge thermostat kit All models Industry pack 50
53
FRCC.PC.003.A5.22
Application guidelines
