Chapter 5 Function code VFD500 high performance vector control frequency inverter user manual
P45.14
Counter 2
control
Unit’digit: counting method
0: Stop counting after counting the
maximum value
1: Reset after counting the maximum value,
recount from 0
Ten’sdigit: the action after the counter
reaches the set value
0: continue to run
1: Free stop
2: Ramp to stop
3: Emergency stop
Hundred’s digit : Power-down save option
0: Do not save the count value when power
is off
1: save the count value when power is off
100
☆
60 Group Motor 2 basic parameter
P60.00
Control mode
Same as P00.04
0
★
P60.01
Upper limit
frequency
Same as P01.07
0
★
P60.02
Upper limit
frequency digital
setting
L o w e r l i m i t ( P 0 1 . 0 9 ) ～ m a x i m u m
frequency(P01.06)
50.00Hz
☆
P60.04
Accel and Decel
time option
0：same as motor 1#
1：Accel and Decel time 3
When choose 1,Motor 2 can convert
betweens accel and decal time 3 and 4 by
DI terminal function code 55 or switch by
output frequency comparing with P60.05
P60.06）
0
★
P60.05
Accel time
frequency
switchover 2
0.00Hz～maximum frequency (P01.06)
0.00Hz
☆
P60.06
Decel time
frequency
switchover 2
0.00Hz～maxinumm frequency(P01.06)
0.00Hz
☆
61 Group Motor2 parameter
61.xx same as motor 1 parameter P11.xx
62 Group Motor 2 VF control parameter
62.xx same as motor 1 VF control P12.xx
63 Group Motor 2 Vector control parameter
63.xx same as motor 2 Vector control P13.xx

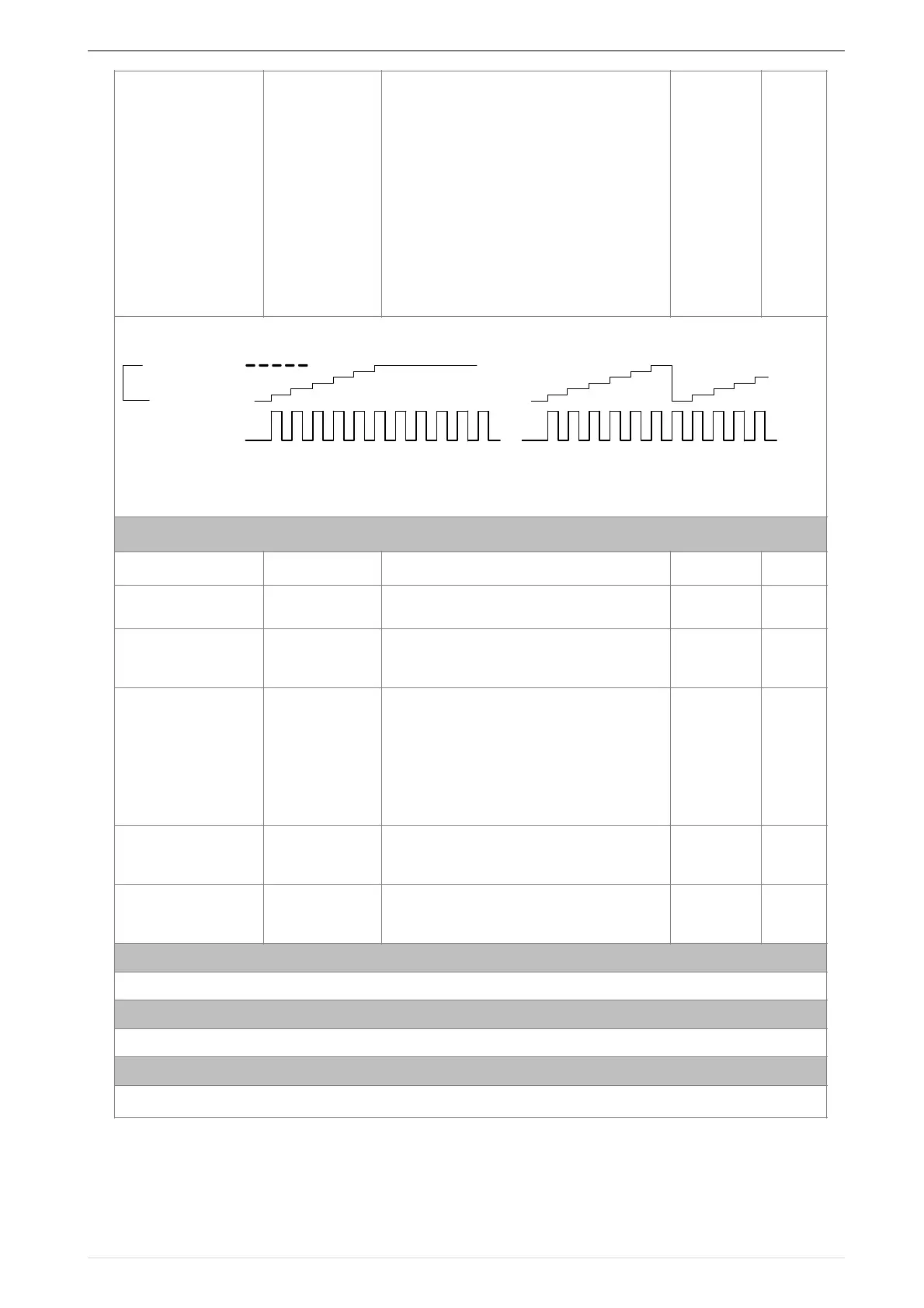

Count 1/2 overflow action:when counter higher than maximum value as following chart
0
1
2
3
4
5
6
0
1
2
3
4
5
6
0
1
2
3
4
Pulse input
Counter
value
Maximum
setting
Stop counting
C o n t i nue c ount i ng
after overflowing
110
