Chapter3 product appearance and wiring VFD500 high performance vector control frequency inverter user manual
!

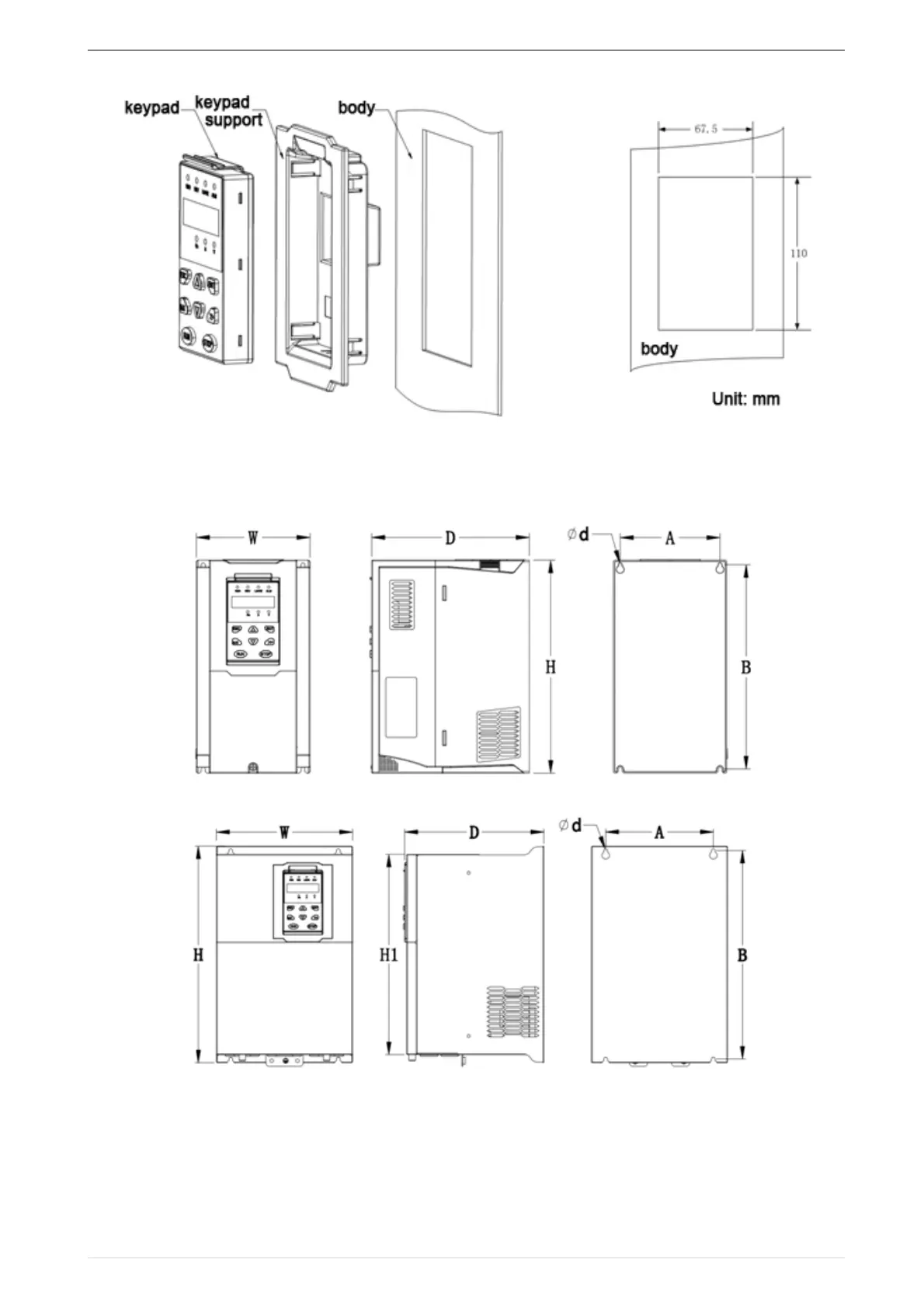

Figure 3-4 Keypad support installation diagram and control cabinet processing dimensions
◆Inverter dimensions and installation dimensions
!
Figure 3-5 SIZE A to SIZE C(0.75KW-15KW) Dimension
!
Figure 3-6 SIZE D~G(18.5KW-90KW) Dimension
