VFD500 high performance vector control frequency inverter user manual Chapter3 Product appearance and wiring
!

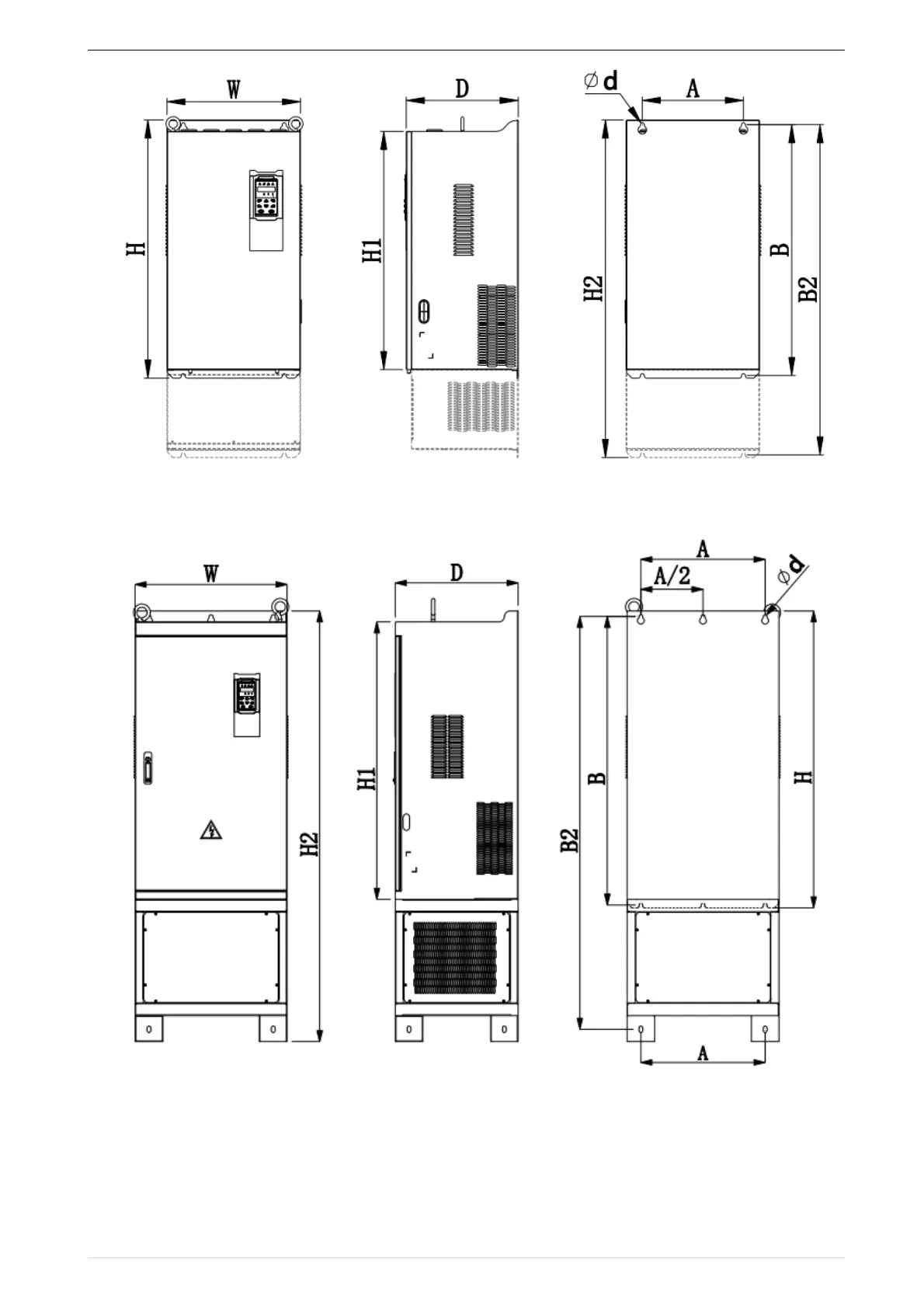

Figure 3-7 SIZE H~J(110KW-250KW) Dimension
Note: SIZE H~SIZE J (110kw-200kw) standard model without reactor and bottom base
Reactor and bottom base for option
!
Figure 3-8 SIZE K~J(280KW-315KW) Dimension
