VFD500 high performance vector control frequency inverter user manual Chapter2 production information
Chapter 2 Product Information

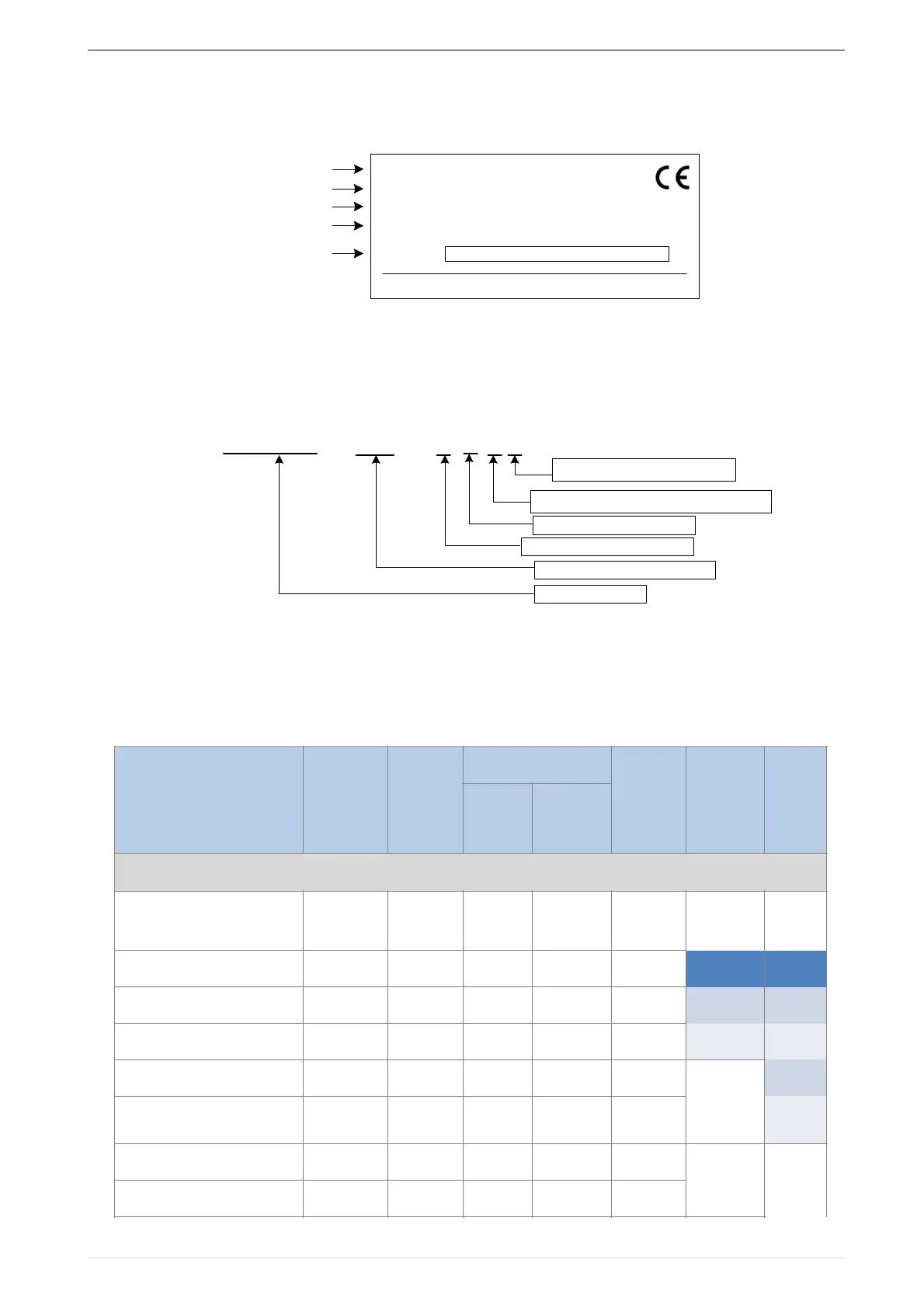

2.1 Designation Rules
Name plate：
!
2-1 Name Plate
Model instruction：
#
2-2Model instruction
2.2Product series instruction
Table 2-1VFD500 inverter models and technical data
MODEL: VFD500 -2R2GT4B
POWER: 2.2kW/4.0kW
INPUT: 3PH AC380~440V 50Hz/60Hz
OUTPUT: 3PH 0~440V 0~600Hz 5.6A/9.4A
S/N:
TYPE
POWER
INPUT
OUTPUT
CODE
Model
Power
capacity
(KVA)
Input
current
(A)
Output current(A)
Adapta
ble
Motor
(KW)
SIZE
Brake
Unit
Heavy
load
Light
load
Three phase: 380-480V，50/60Hz
VFD500-R75GT4B
1.5
3.4
2.5
4.2
0.75
SIZE A
Intern
al
VFD500-1R5GT4B
3
5
4.2
5.6
1.5
VFD500-2R2GT4B
4
5.8
5.6
9.4
2.2
VFD500-4R0G/5R5PT4B
5.9
10.5
9.4
13.0
3.7
VFD500-5R5G/7R5PT4B
8.9
14.6
13.0
17.0
5.5
SIZE B
VFD500-7R5G/011PT4B
11
20.5
17.0
23.0
7.5
VFD500-011G/015PT4B
17
26.0
25.0
31.0
11
SIZE C
Intern
al
VFD500-015G/018PT4B
21
35.0
32.0
37.0
15
6
VFD500 -2R2  G T 4 B
T:three phase
Load type :G normal duty
Power2R2 means 2.2kW
Product series
B means breaking units
4:380-480v three phase 2: 200 -240v
