The VFD500 provides four groups of acceleration and deceleration time. The actual acceleration /
deceleration time can be selected by different methods such as DI terminal, output frequency and PLC running
segments. Several methods can not be used at the same time. Factory default is to use acceleration /
deceleration time
1.DI terminal select acceleration and deceleration time of the mapping table is as follows:：
Acceleration and deceleration time DI terminal 2 Acceleration and deceleration time DI terminal 1
Acceleration and deceleration time
Ineffective Ineffective Acceleration and deceleration time terminal 1（P03.01,P03.02）
Ineffective Effective Acceleration and deceleration time terminal 2（P03.03,P03.04）
Effective Ineffective Acceleration and deceleration time terminal 3（P03.05,P03.06）
Effective Effective Acceleration and deceleration time terminal 4（P03.07,P03.08）

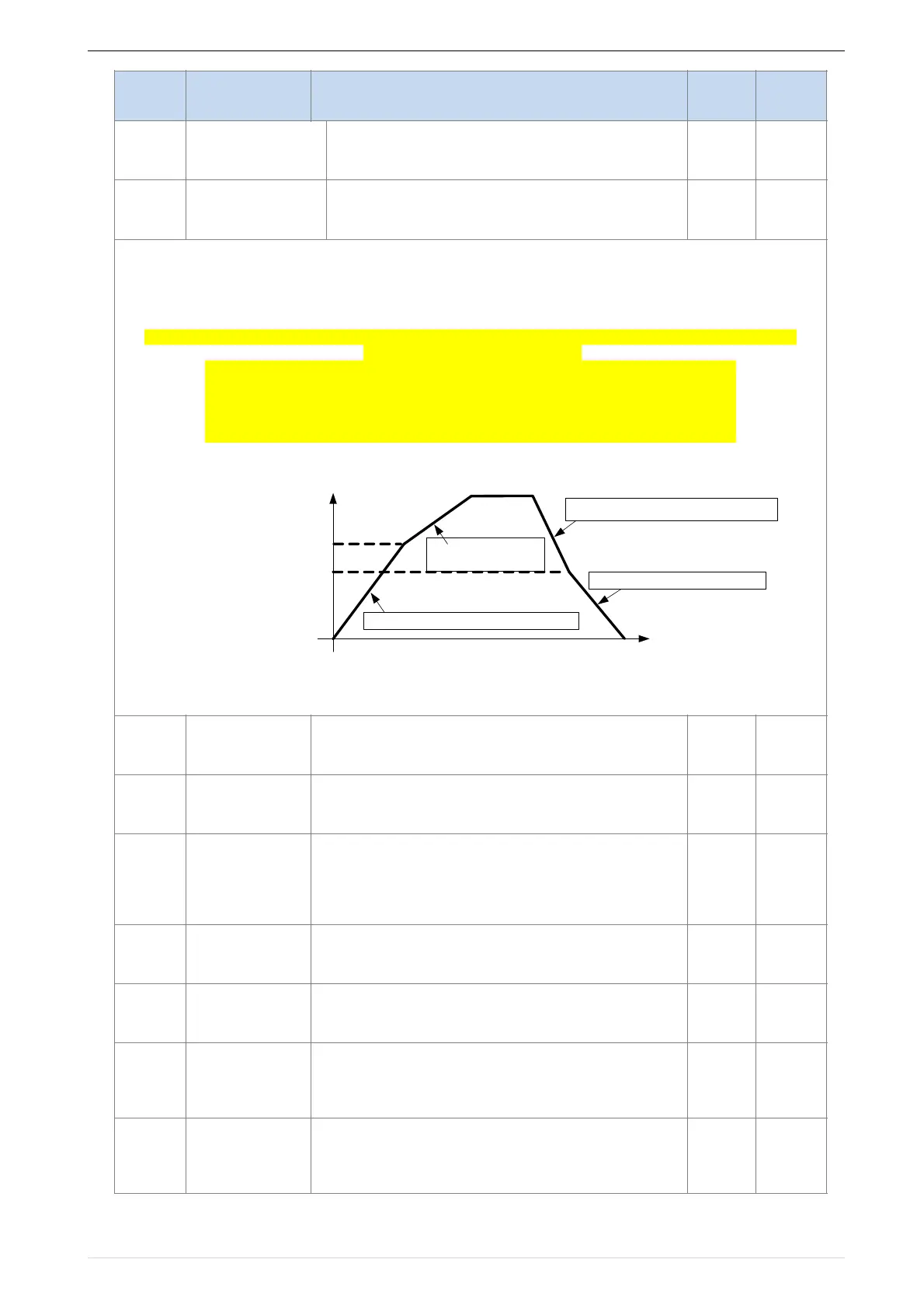

The schematic diagram of selecting acceleration / deceleration time according to the output frequency is as
follows：
Other ways to select acceleration / deceleration time can be found in the description of relevant
parameters。
