the frequency converter via the door fan and to maintain
the IP21/NEMA 1 or IP54/NEMA 12 degrees of enclosure
protections.

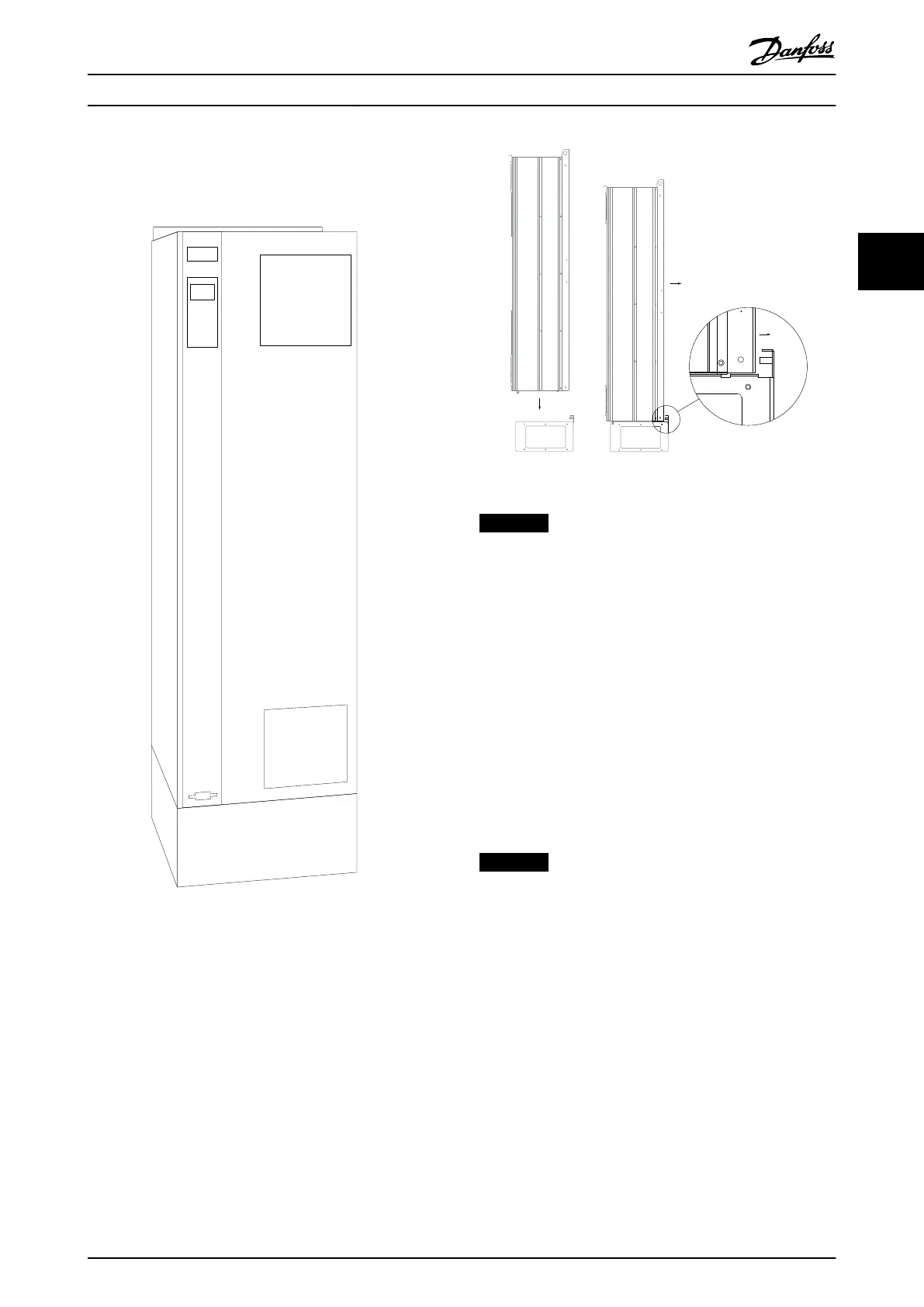

Illustration 3.51 Frequency Converter on Pedestal
There is one pedestal that fits both enclosure types D1 and
D2. Its ordering number is 176F1827. The pedestal is
standard for enclosure type E1.
Illustration 3.52 Mounting of Frequency Converter to Pedestal
NOTICE
See the Pedestal Kit Instruction Manual, for further
information.
3.4.10 Installation of Mains Shield for
Frequency Converters
This section is for the installation of a mains shield for the
frequency converter series with enclosure types D1, D2
and E1. It is not possible to install in the IP00/Chassis
versions as these have included as standard a metal cover.
These shields satisfy VBG-4 requirements.
Ordering numbers:
Enclosure types D1 and D2: 176F0799
Enclosure type E1: 176F1851
NOTICE
For further information, see the Instruction Sheet,
175R5923
Mechanical Installation VLT HVAC Drive FC 102 Operating Instructions
MG11F402 - Rev. 2013-12-16 41
3 3
