NOTICE
Power connections can be made to positions A or B
Enclosure
type
Unit type Dimensions [mm]/(inch)
E2
IPOO/CHASSIS A B C D E F
250/315 kW (400 V) AND 355/450-500/630
KW (690 V)
396 (15.6) 268 (10.6) 333 (13.1) 398 (15.7) 221 (8.7) N/A
315/355-400/450 kW (400 V) 408 (16.1) 239 (9.4) 319 (12.5) 399 (15.7) 113 (4.4) 153 (6.0)
Table 3.9 Dimensions for Disconnect Terminal
3.3.5 Terminal Locations - Enclosure type F
NOTICE
The F enclosures have 4 different sizes, F1, F2, F3 and F4. The F1 and F2 consist of an inverter cabinet on the right and
rectifier cabinet on the left. The F3 and F4 have an additional options cabinet left of the rectifier cabinet. The F3 is an
F1 with an additional options cabinet. The F4 is an F2 with an additional options cabinet.
Terminal locations - enclosure types F1 and F3
130BA849.13
.0 [.0]
54.4[2.1]
169.4 [6.7]
284.4 [11.2]
407.3 [16.0]
522.3 [20.6]
637.3 [25.1]
287.4 [11.3]
253.1 [10.0]
.0 [.0]
.0 [.0]
339.4 [13.4]
287.4 [11.3]
.0 [.0]
339.4 [13.4]
308.3 [12.1]
465.6 [18.3]
465.6 [18.3]
198.1[7.8]
234.1 [9.2]
282.1 [11.1]
318.1 [12.5]
551.0 [21.7]
587.0 [23.1]
635.0 [25.0]
671.0 [26.4]
44.40 [1.75]
244.40 [9.62]
204.1 [8.0]
497.1 [19.6]
572.1 [22.5]
180.3 [7.1]
129.1 [5.1]
4
6
4
1
2
3
5

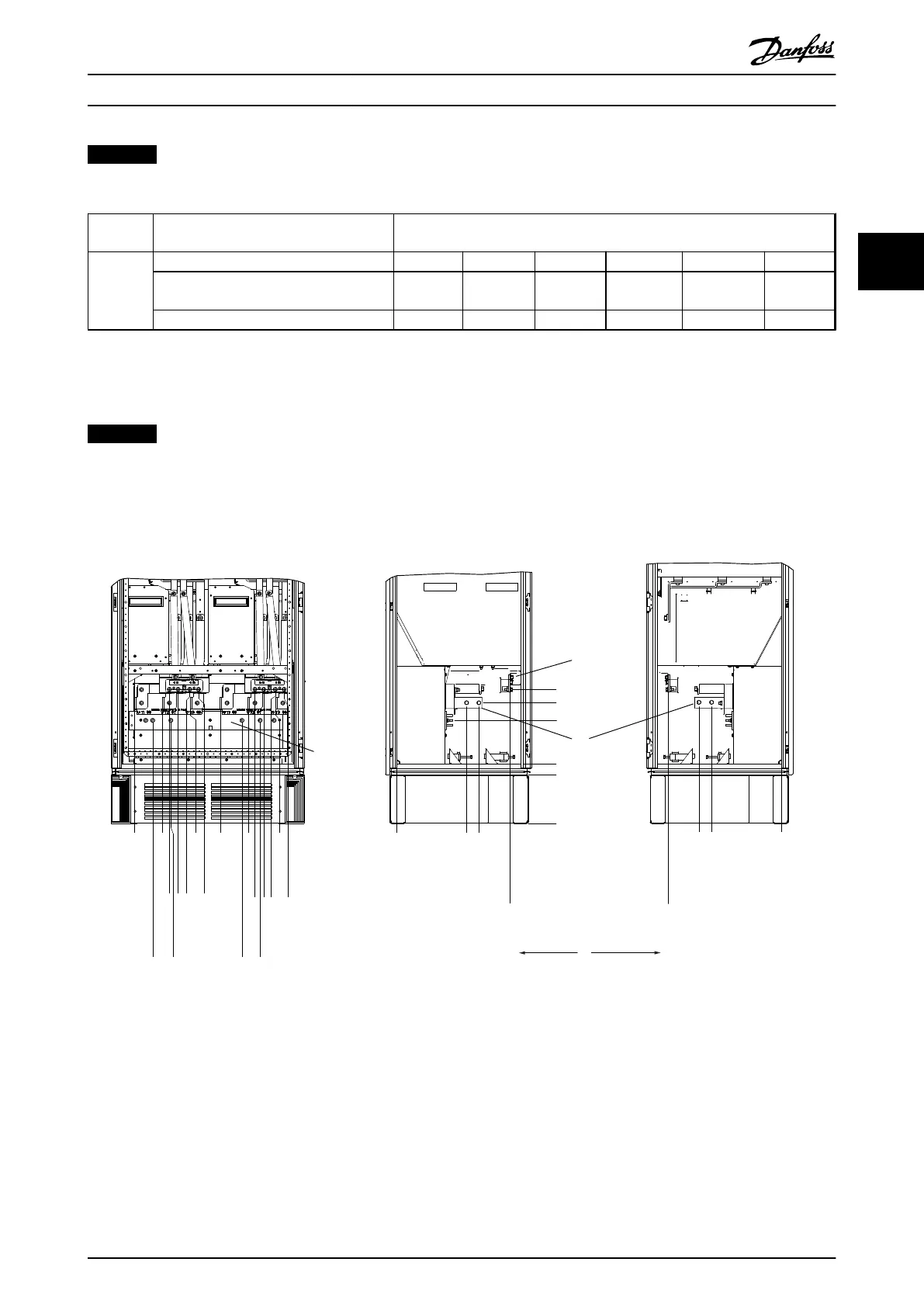

Illustration 3.29 Terminal Locations - Inverter Cabinet - F1 and F3 (Front, Left and Right Side View). The Gland Plate is 42 mm
below .0 Level.
1) Earth ground bar
2) Motor terminals
3) Brake terminals
Mechanical Installation VLT HVAC Drive FC 102 Operating Instructions
MG11F402 - Rev. 2013-12-16 29
3 3
