6.1.3 Function Set-ups
The Function Set-up provides quick and easy access to all
parameters required for most HVAC applications including
most VAV and CAV supply and return fans, cooling tower
fans, primary, secondary and condenser water pumps and
other pump, fan and compressor applications.

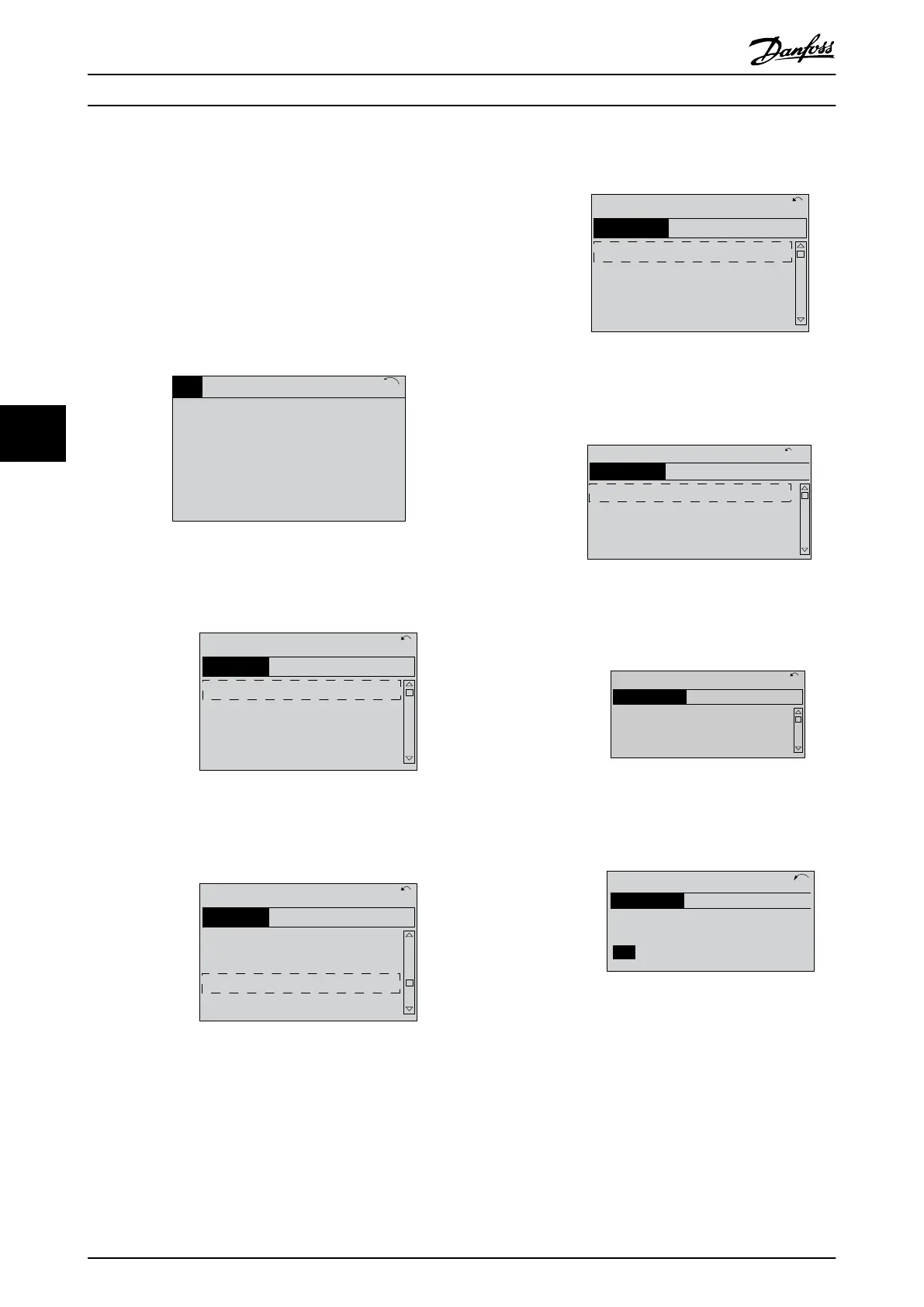

How to access Function Set-up - example
1. Turn on the frequency converter (yellow LED
lights).
28.8%
14.4Hz
Auto Remote Running
5.66A
2.63kW
0kWh
1 (1)
130BT110.11
Status
Illustration 6.2
2. Press [Quick Menus] (Quick Menus choices
appear).
130BT111.10
Q1 My Personal Menu
Q2 Quick Setup
Q3 Function Setups
Q5 Changes Made
13.7% 13.0A 1(1)
Quick Menus
Illustration 6.3
3.
Press [
▲
] and [
▼
] to scroll down to Function set-
ups. Press [OK].
130BT112.10
Q1 My Personal Menu
Q2 Quick Setup
Q3 Function Setups
Q5 Changes Made
69.3% 5.20A 1(1)
Quick Menus
Illustration 6.4
4. Function set-ups choices appear. Select Q3-1
General Settings. Press [OK].
Q3
130BT113.10
Q3-1 General Settings
Q3-2 Open Loop Settings
Q3-3 Closed Loop Settings
Q3-4 Application Settings
28.4% 2.05A 1(1)
Function Setups
Illustration 6.5
5.
Press [
▲
] and [
▼
] to scroll down to i.e. Q3-11
Analog Outputs. Press [OK].
130BT114.10
26.0%
Q3 - 10 Adv. Motor Settings
Q3 - 11 Analog Output
Q3 - 12 Clock Settings
Q3 - 13 Display Settings
7.14A 1(1)
Q3-1
General Settings
Illustration 6.6
6. Selectparameter 6-50 Terminal 42 Output. Press
[OK].
130BA115.10
6 - 50 Terminal 42 Output
(100) Output frequency
26.3%
5.82A 1(1)
Analog Output 03.11
Illustration 6.7
7.
Use [
▲
] and [
▼
] to select between the different
choices. Press [OK].
130BT116.10
43.4%
6-50 Terminal 42 Output
[107]
Speed
Analog Output
7.99A
Q3-11
1(1)
Illustration 6.8
How to Programme VLT HVAC Drive FC 102 Operating Instructions
88 MG11F402 - Rev. 2013-12-16
66
