4.2.2. Mounting A2 and A3.

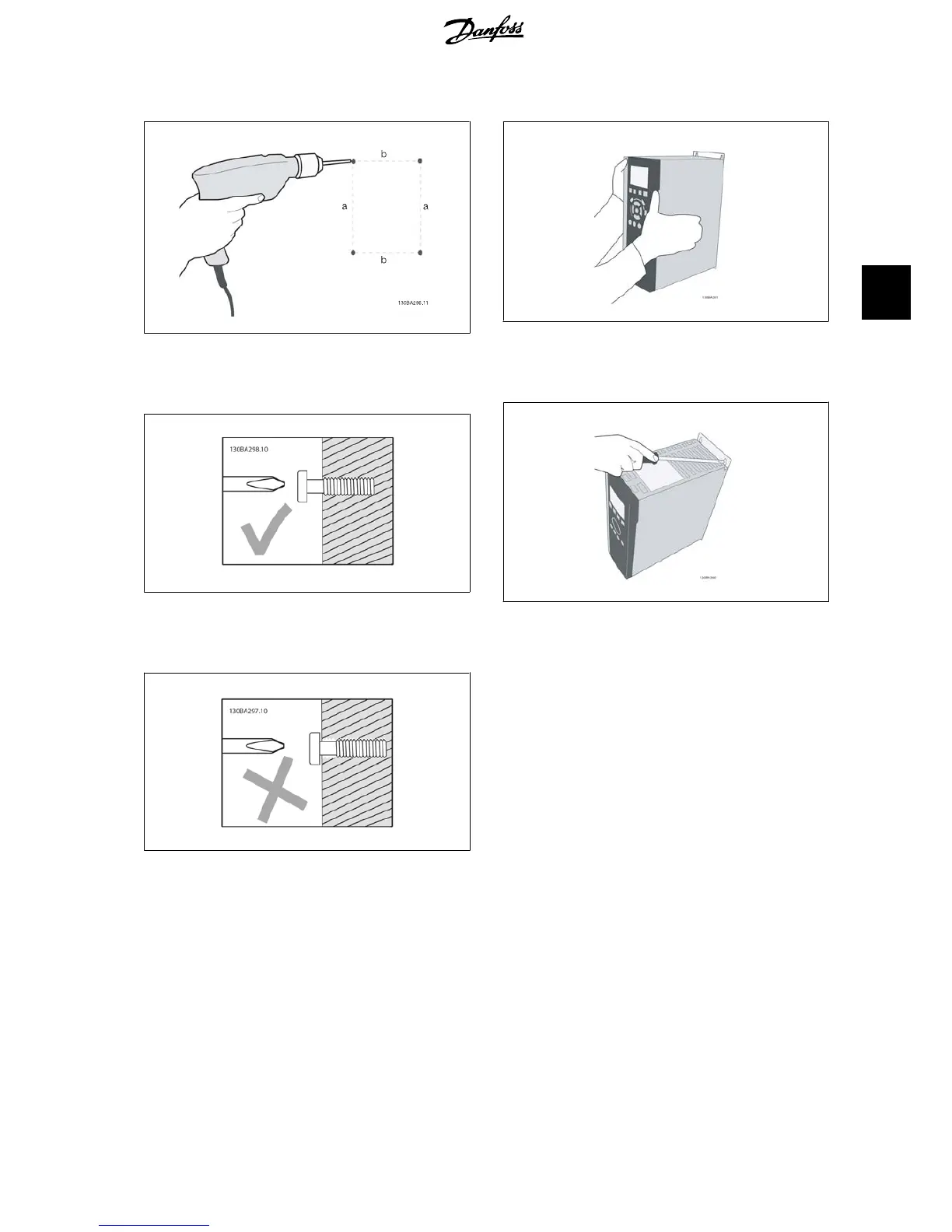

Illustration 4.5: Drilling of holes
Step 1: Drill according to the dimensions in the following table.
Illustration 4.6: Correct mounting of screws.
Step 2A: This way it is easy to hang the unit on the screws.
Illustration 4.7: Wrong mounting of screws.
Step 2B: Do not tighten screws completely.
Illustration 4.8: Mounting of unit.
Step 3: Lift the unit onto the screws.
Illustration 4.9: Tightening of screws
Step 4: Tighten screws completely.
