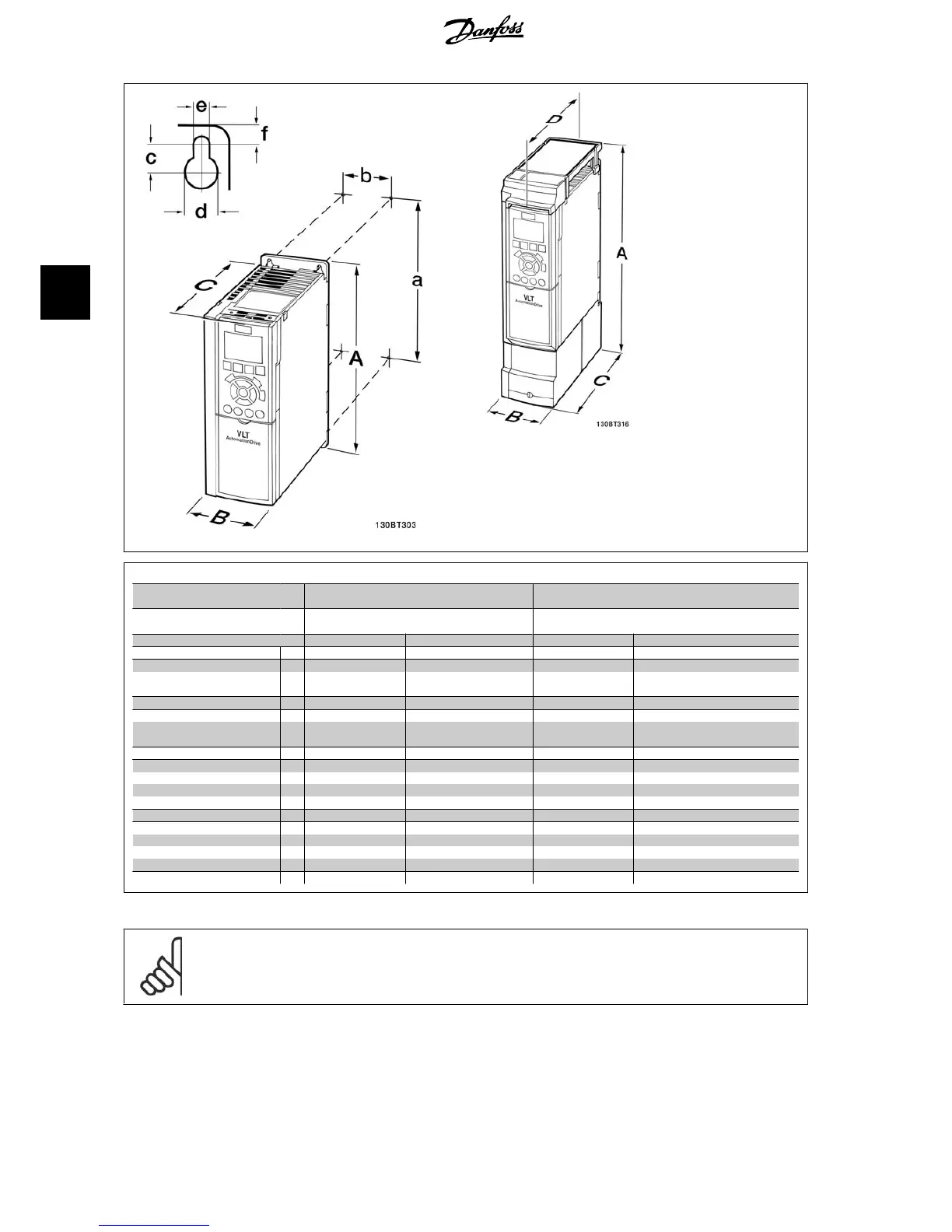

Mechanical dimensions
Voltage
200-240 V
Frame size A2
0.25-3.0 kW
Frame size A3
3.7 kW
Voltage
380-480 V
0.37-4.0 kW 5.5-7.5 kW
Encapsulation IP20 IP21/Type 1 IP20 IP21/Type 1
Height
Height of back plate A 268 mm 375 mm 268 mm 375 mm
Distance between mounting
holes
a 257 mm 350 mm 257 mm 350 mm
Width
Width of back plate B 90 mm 90 mm 130 mm 130 mm
Distance between mounting
holes
b 70 mm 70 mm 110 mm 110 mm
Depth
Depth without option A/B C 205 mm 205 mm 205 mm 205 mm
With option A/B C 220 mm 220 mm 220 mm 220 mm
Without option A/B D 207 mm 207 mm
With option A/B D 222 mm 222 mm
Screw holes
c 8.0 mm 8.0 mm 8.0 mm 8.0 mm
d
ø11 mm ø11 mm ø11 mm ø11 mm
e
ø5.5 mm ø5.5 mm ø5.5 mm ø5.5 mm
f 9 mm 9 mm 9 mm 9 mm
Maximum weight 4.9 kg 5.3 kg 6.6 kg 7.0 kg
Table 4.3: A2 and A3 mechanical dimensions
NB!
Option A/B are serial communication and I/O options, which when fitted increase the depth on some enclosure sizes.
