6.1.5 Q3 Function Setups
The Function Setup provides quick and easy access to all parameters required for the majority of water and wastewater applications including variable
torque, constant torque, pumps, dosing pumps, well pumps, booster pumps, mixer pumps, aeration blowers and other pump and fan applications.
Amongst other features it also includes parameters for selecting which variables to display on the LCP, digital preset speeds, scaling of analog references,
closed loop single zone and multi-zone applications and specific functions related to water and wastewater applications.
How to access Function Set-up - example:

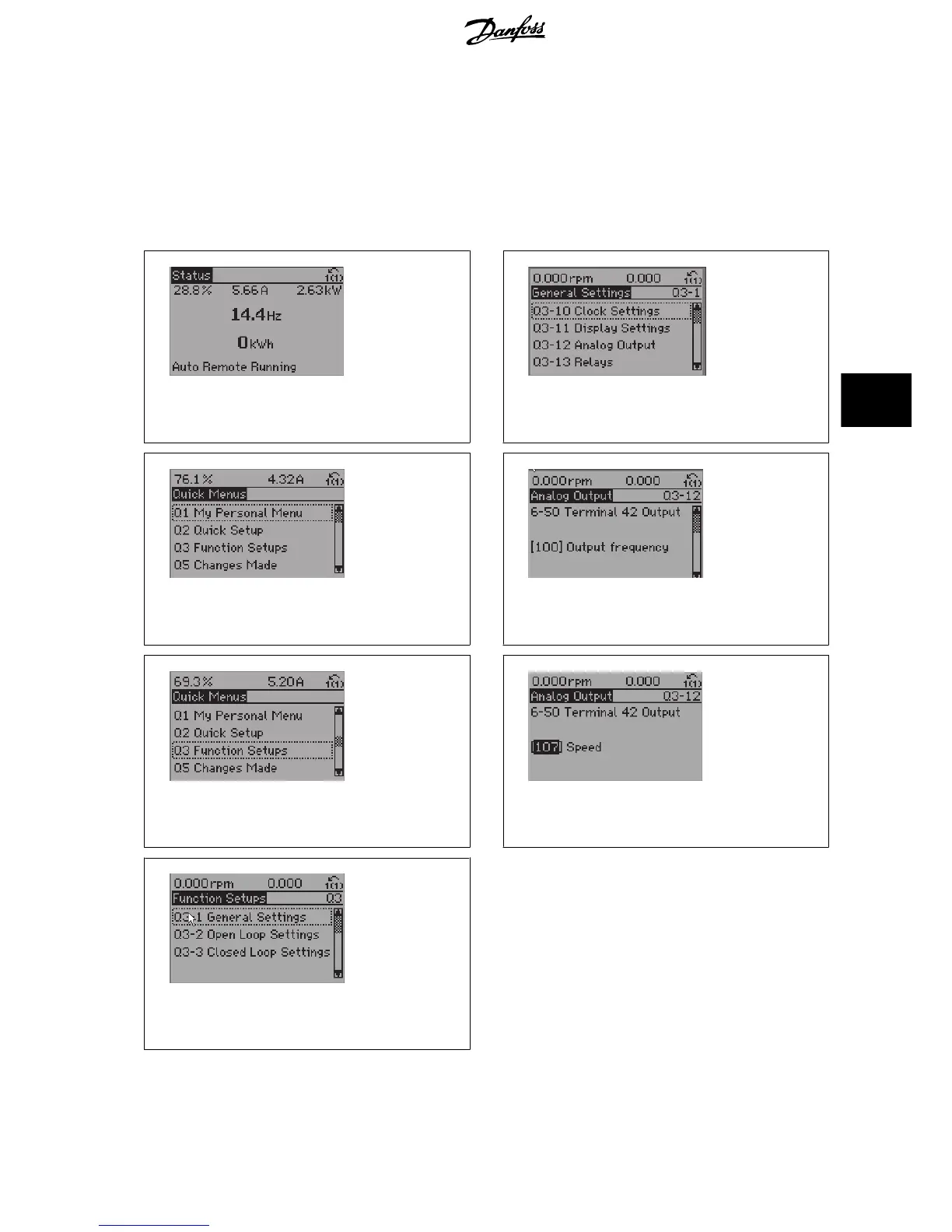

130BT110.10
Illustration 6.2: Step 1: Turn on the frequency converter (On
LED lights)
130BT111.10
Illustration 6.3: Step 2: Press the [Quick Menus] button
(Quick Menus choices appear).
130BT112.10
Illustration 6.4: Step 3: Use the up/down navigation keys to
scroll down to Function Setups. Press [OK].
130BA500.10
Illustration 6.5: Step 4: Function Setups choices appear.
Choose 03-1 General Settings . Press [OK].
130BA501.10
Illustration 6.6: Step 5: Use the up/down navigation keys to
scroll down to i.e. 03-12 Analog Outputs . Press [OK].
130BA502.10
Illustration 6.7: Step 6: Choose parameter 6-50 Terminal 42
Output . Press [OK].
130BA503.10
Illustration 6.8: Step 7: Use the up/down navigation keys to
select between the different choices. Press [OK].
