4.9 Final Set-up and Test
To test the set-up and ensure that the frequency converter is running, follow these steps.

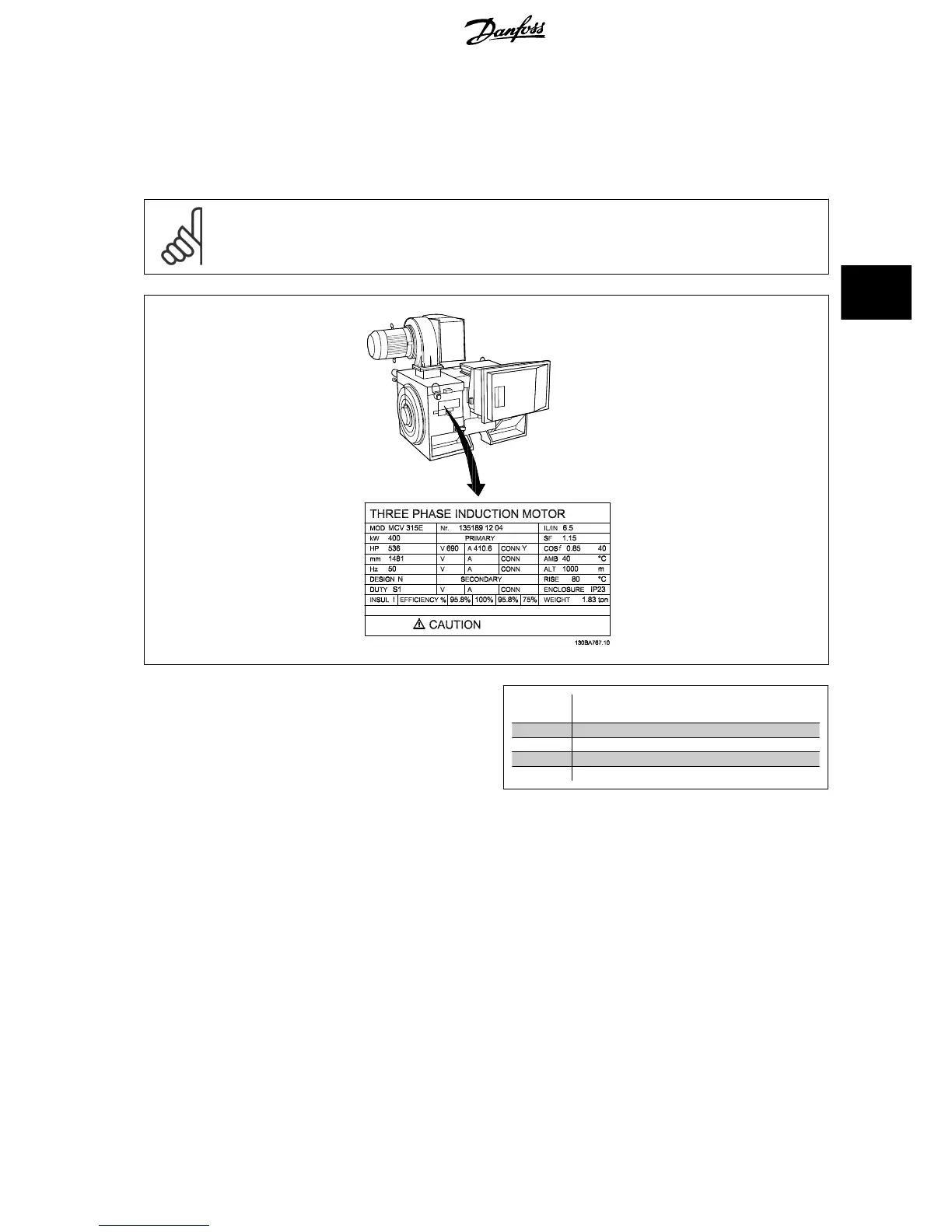

Step 1. Locate the motor name plate
NB!
The motor is either star- (Y) or delta- connected (Δ). This information is located on the motor name plate data.
Step 2. Enter the motor name plate data in this parameter list.
To access this list first press the [QUICK MENU] key then select “Q2 Quick
Setup”.
1. Par. 1-20
Motor Power [kW]
Par. 1-21
Motor Power [HP]
2. Par. 1-22
Motor Voltage
3. Par. 1-23
Motor Frequency
4. Par. 1-24
Motor Current
5. Par. 1-25
Motor Nominal Speed
Step 3. Activate the Automatic Motor Adaptation (AMA)
Performing an AMA will ensure optimum performance. The AMA measures the values from the motor model equivalent diagram.
1. Connect terminal 37 to terminal 12 (if terminal 37 is available).
2. Connect terminal 27 to terminal 12 or set par. 5-12
Terminal 27 Digital Input
to 'No function' (par. 5-12
Terminal 27 Digital Input
[0])
3. Activate the AMA par. 1-29
Automatic Motor Adaptation (AMA)
.
4. Choose between complete or reduced AMA. If a Sine-wave filter is mounted, run only the reduced AMA, or remove the Sine-wave filter during
the AMA procedure.
5. Press the [OK] key. The display shows “Press [Hand on] to start”.
6. Press the [Hand on] key. A progress bar indicates if the AMA is in progress.
Stop the AMA during operation
1. Press the [OFF] key - the frequency converter enters into alarm mode and the display shows that the AMA was terminated by the user.
Successful AMA
1. The display shows “Press [OK] to finish AMA”.
2. Press the [OK] key to exit the AMA state.
VLT AQUA Low Harmonic Drive Operating In-
structions
4 How to Install
MG.20.T1.02 - VLT
®
is a registered Danfoss trademark 65
4
