5.1.5 Q3 Function Set-ups
The function set-up provides quick and easy access to all parameters required for the majority of water and wastewater applications including variable
torque, constant torque, pumps, dosing pumps, well pumps, booster pumps, mixer pumps, aeration blowers and other pump and fan applications. Among
other features, it also includes parameters for selecting which variables to display on the LCP, digital preset speeds, scaling of analog references, closed-
loop single zone and multi-zone applications and specific functions related to water and wastewater applications.
Example of how to access Function Set-up:
130BT110.1
0

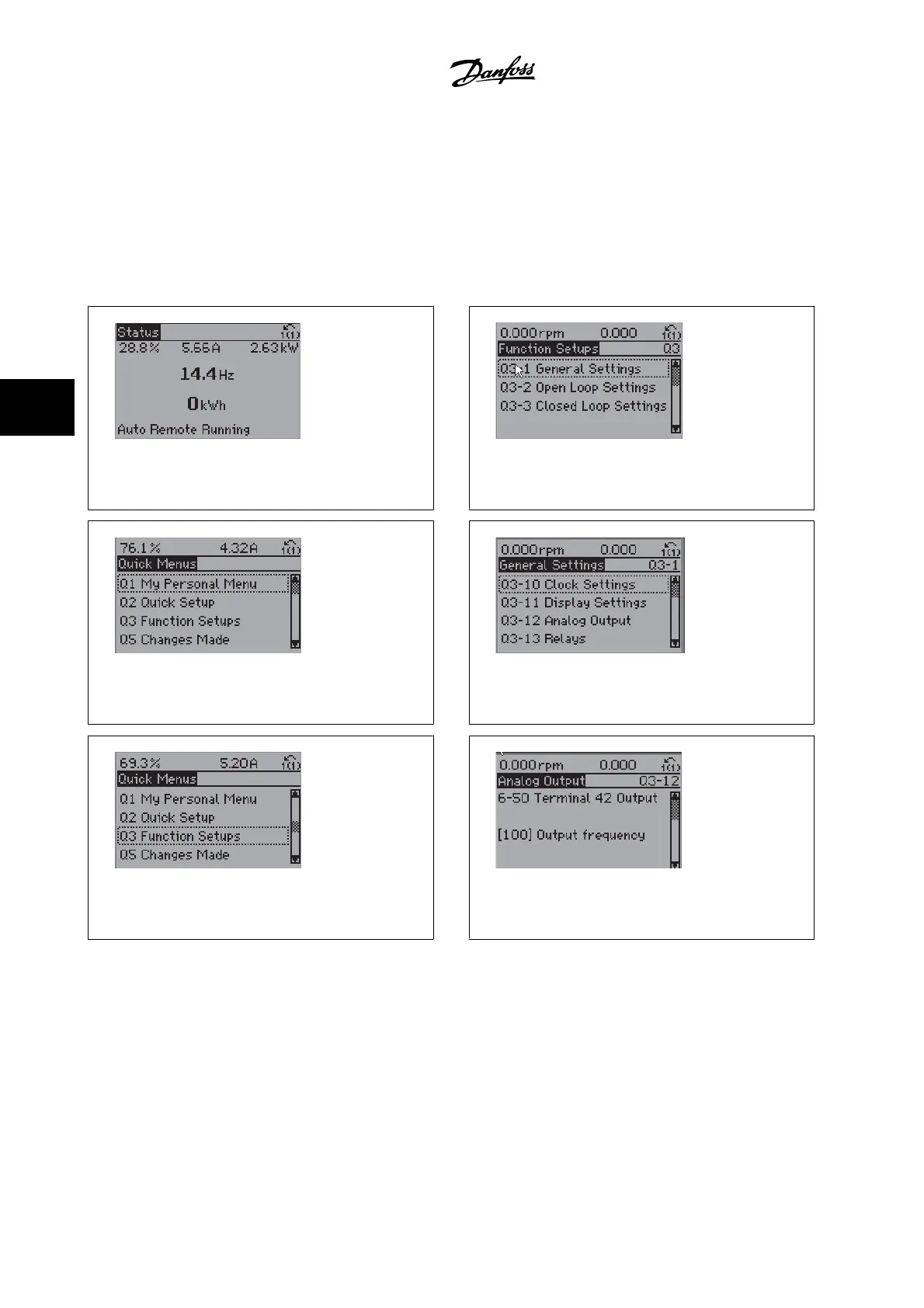

Figure 5.2: Step 1: Turn on the adjustable frequency drive
(On LED lights)
130BT111.1
0
Figure 5.3: Step 2: Press the [Quick Menus] button (quick
menu choices appear).
130BT112.1
0
Figure 5.4: Step 3: Use the up/down navigation keys to
scroll down to Function Set-ups. Press [OK].
130B
A500.1
0
Figure 5.5: Step 4: Function Set-up choices appear. Choose
03-1
General Settings . Press [OK].
130B
A501.1
0
Figure 5.6: Step 5: Use the up/down navigation keys to
scroll down to, e.g., 03-12
Analog Outputs . Press [OK].
130B
A502.1
0
Figure 5.7: Step 6: Choose parameter 6-50 Terminal 42
Output
. Press [OK].
5 How to program the adjustable frequency
drive
VLT AQUA High Power Instruction Manual
5-4 MG.20.P3.22 - VLT
®
is a registered Danfoss trademark
5
