3.2.4 Lifting
Always lift the adjustable frequency drive using the dedicated lifting holes. For all D and E2 (IP00) frames, use a bar to avoid bending the lifting holes of
the adjustable frequency drive.

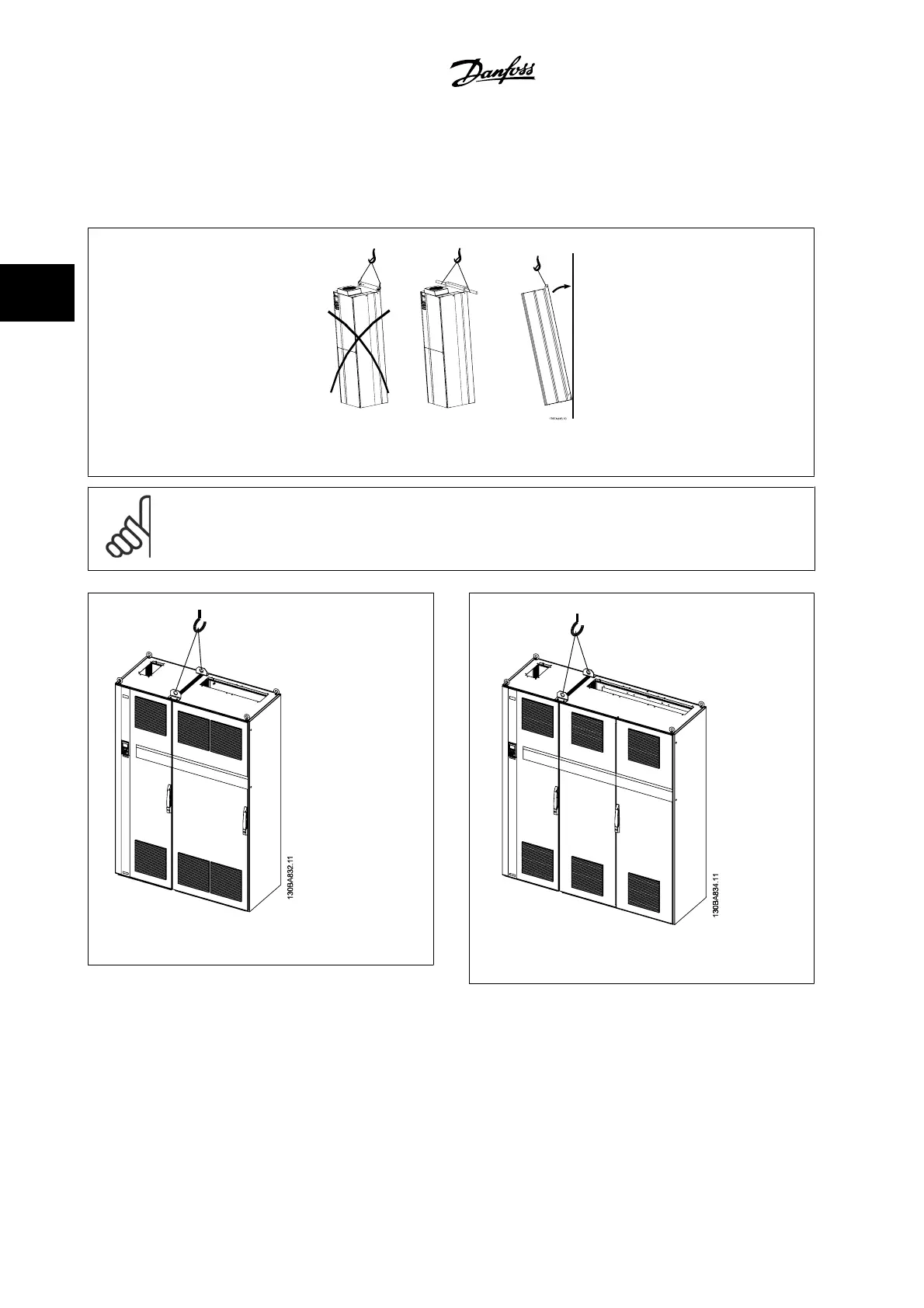

Figure 3.3: Recommended lifting method, frame sizes D and E .
NOTE!
The lifting bar must be able to handle the weight of the adjustable frequency drive. See
Mechanical Dimensions
for the weight of the
different frame sizes. Maximum diameter for bar is 1 in [25 cm]. The angle from the top of the drive to the lifting cable should be 60
degrees or greater.
Figure 3.4: Recommended lifting method, frame size F1.
Figure 3.5: Recommended lifting method, frame size F2.
3 How to Install VLT AQUA High Power Instruction Manual
3-4
MG.20.P3.22 - VLT
®
is a registered Danfoss trademark
3
