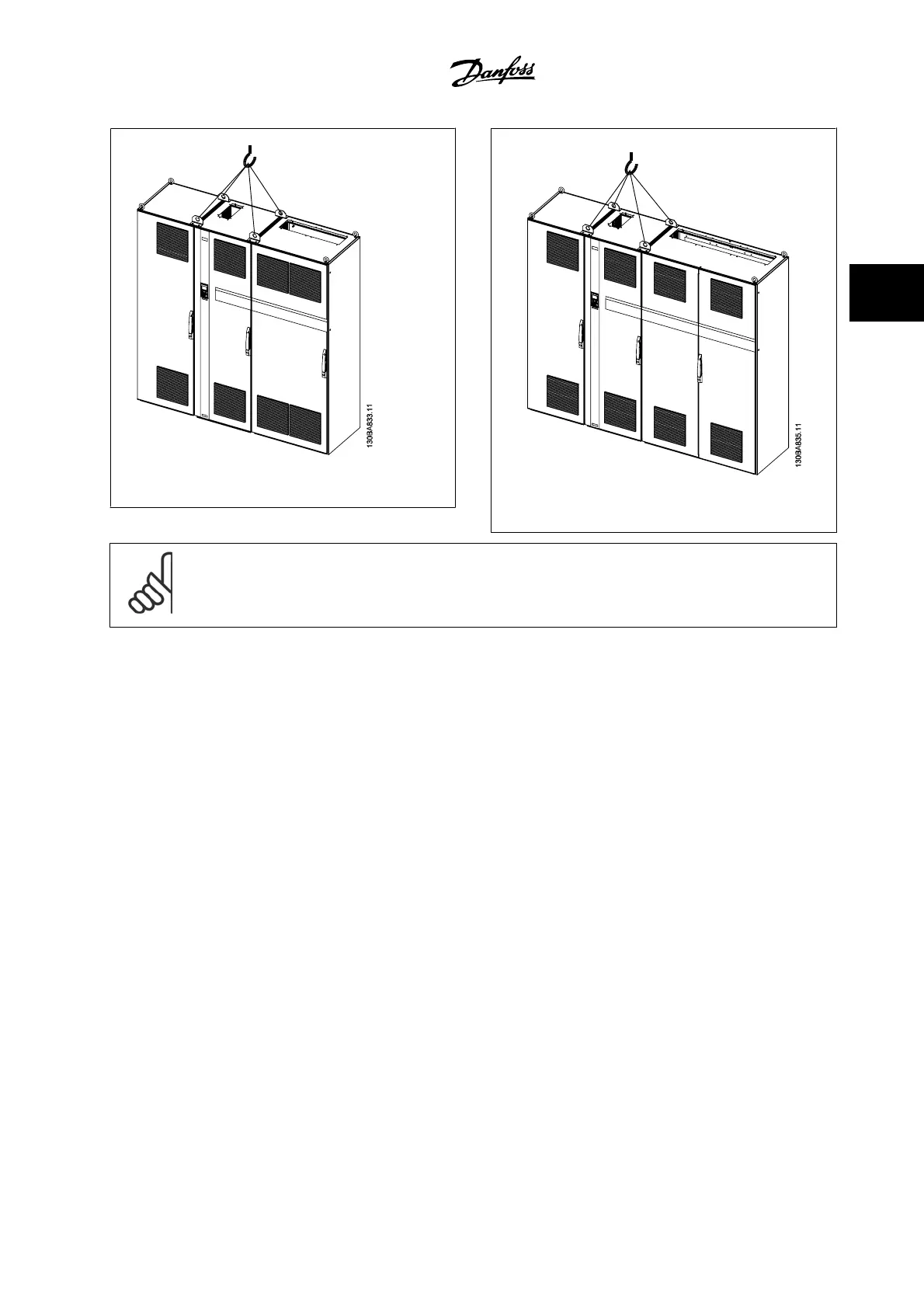

Figure 3.6: Recommended lifting method, frame size F3.
Figure 3.7: Recommended lifting method, frame size F4.
NOTE!
Note the plinth is provided in the same packaging as the adjustable frequency drive but is not attached to F1-F4 frames during shipment.
The plinth is required to allow airflow to the drive to provide proper cooling. The F frames should be positioned on top of the plinth in
the final installation location. The angle from the top of the drive to the lifting cable should be 60 degrees or greater.
VLT AQUA High Power Instruction Manual 3 How to Install
MG.20.P3.22 - VLT
®
is a registered Danfoss trademark
3-5
3
