3.3.4 Terminal Locations - frame size E
Terminal locations - E1
Give thought to the following terminal positions when designing the cable access.

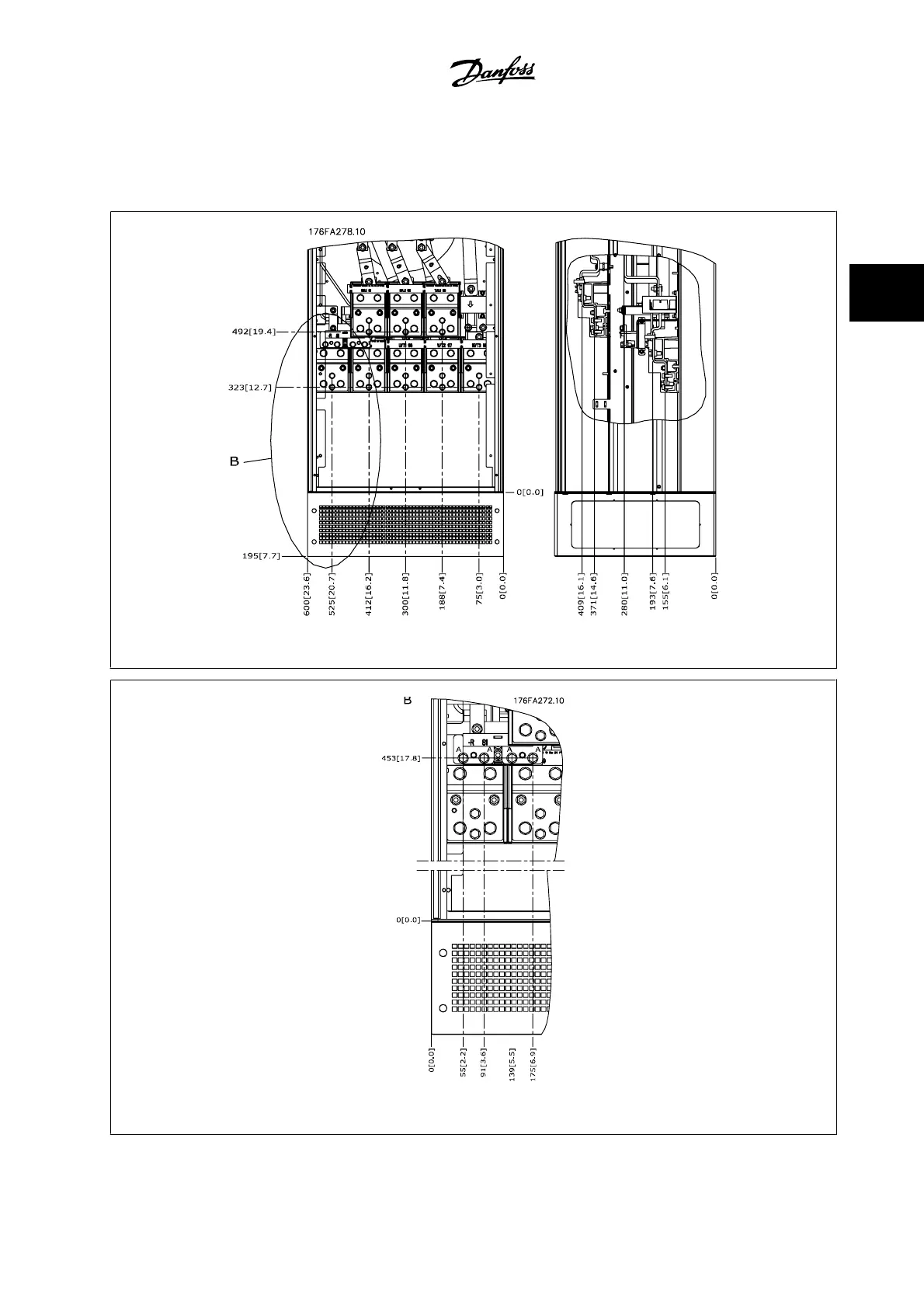

Figure 3.12: IP21 (NEMA Type 1) and IP54 (NEMA Type 12) enclosure power connection positions
Figure 3.13: IP21 (NEMA type 1) and IP54 (NEMA type 12) enclosure power connection positions (detail B)
