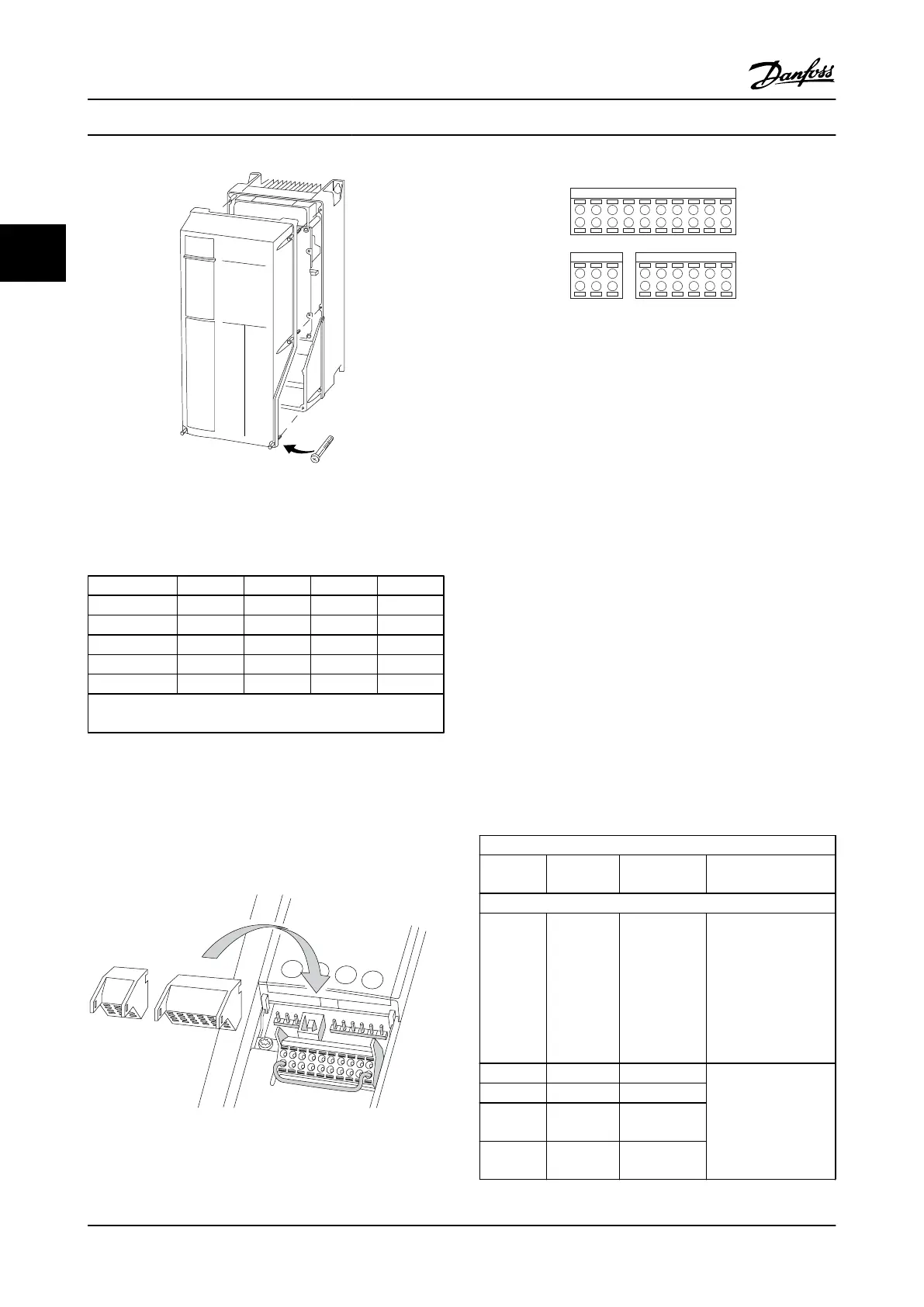

Figure 2.10 Control Wiring Access for A4, A5, B1, B2, C1 and C2
Enclosures
Please see Table 2.2 before tightening the covers.
Frame IP20 IP21 IP55 IP66
A4/A5 - - 2 2
B1 - * 2.2 2.2
B2 - * 2.2 2.2
C1 - * 2.2 2.2
C2 - * 2.2 2.2
* No screws to tighten
14°F Does not exist
Table 2.2 Tightening Torques for Covers (Nm)
2.4.5.2
Control Terminal Types
Figure 2.11 and shows the removable adjustable frequency
drive connectors. Terminal functions and default settings
are summarized in Table 2.3.
Figure 2.11 Control Terminal Locations
12 13 18 19 27 29 32 33 20 37
39 42 50 53 54 55
61 68 69
130BB931.10
1
2 3
Figure 2.12 Terminal Numbers
•
Connector 1 provides four programmable digital
inputs terminals, two additional digital terminals
programmable as either input or output, a 24V
DC terminal supply voltage, and a common for
optional customer supplied 24V DC voltage. FC
302 and FC 301 (optional in A1 enclosure) also
provide a digital input for STO (Safe Torque Off)
function.
•
Connector 2 terminals (+)68 and (-)69 are for an
RS-485 serial communications connection
•
Connector 3 provides two analog inputs, one
analog output, 10V DC supply voltage, and
commons for the inputs and output
•
Connector 4 is a USB port available for use with
the MCT 10 Set-up Software
•
Also provided are two Form C relay outputs that
are in various locations depending upon the
adjustable frequency drive configuration and size
•
Some options available for ordering with the unit
may provide additional terminals. See the manual
provided with the equipment option.
See 10.2 General Technical Data for terminal ratings details.
Terminal description
Terminal Parameter
Default
setting Description
Digital inputs/outputs
12, 13 - +24V DC 24V DC supply
voltage. Maximum
output current is
200mA total (130mA
for FC 301) for all 24V
loads. Useable for
digital inputs and
external transducers.
18 5-10 [8] Start
Digital inputs.
19 5-11 [10] Reversing
32 5-14 [0] No
operation
33 5-15 [0] No
operation
Installation
VLT
®
AutomationDrive Instruction
Manual
2-8 MG.33.AI.22 - VLT
®
is a registered Danfoss trademark
2
