Danfoss VLT AutomationDrive FC 303 User Manual

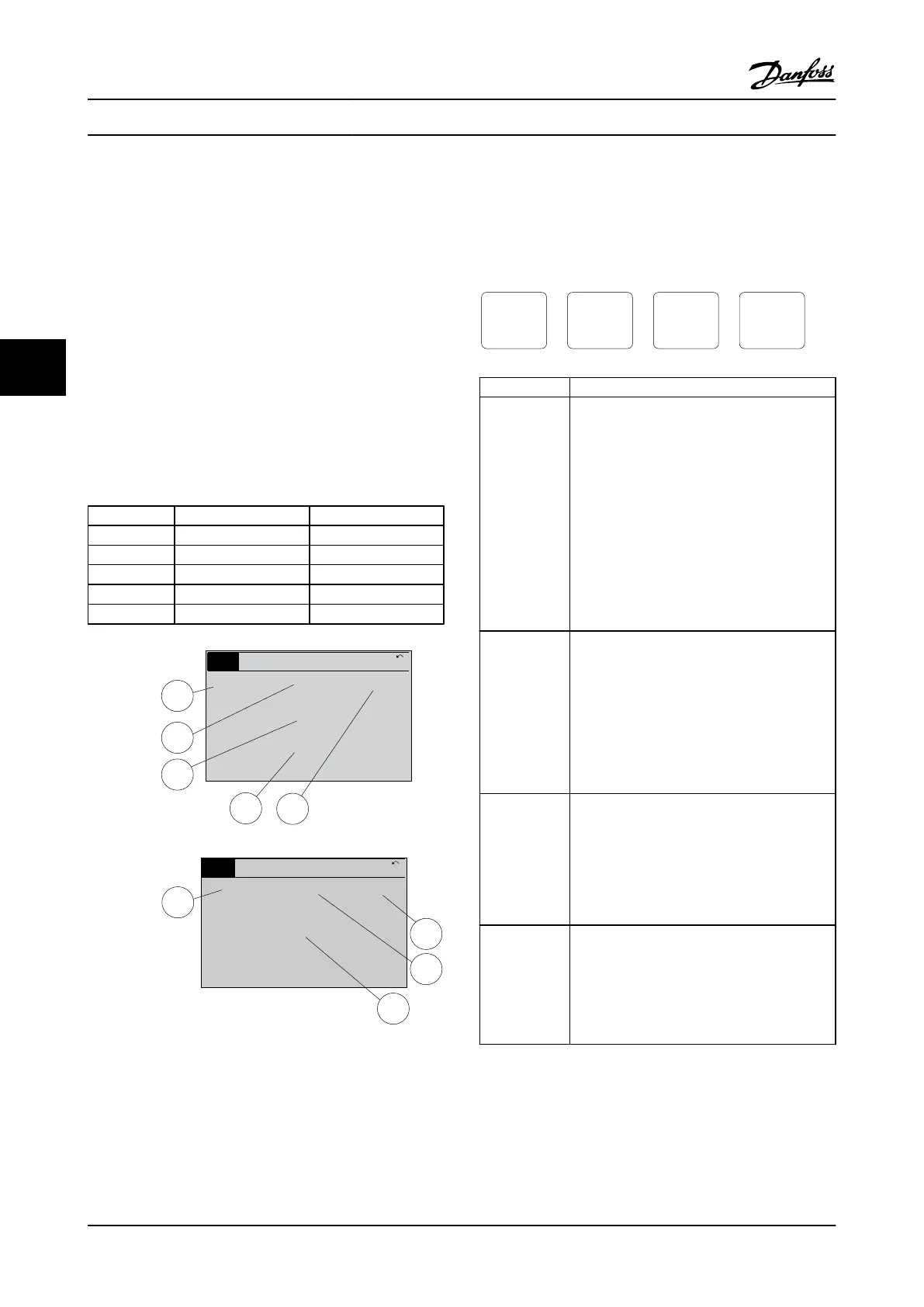

4.1.2 Setting LCP Display Values
The display area is activated when the adjustable
frequency drive receives power from AC line voltage, a DC
bus terminal, or an external 24 V supply.
The information displayed on the LCP can be customized
for user application.
•
Each display readout has a parameter associated
with it.
•
Options are selected in main menu 0-2*.
•
The adjustable frequency drive status at the
bottom line of the display is generated automat-
ically and is not selectable. See 7 Status Messages
for definitions and details.
Display Parameter number Default setting
1.1 0-20 Speed [RPM]
1.2 0-21 Motor Current
1.3 0-22 Power [kW]
2 0-23 Frequency
3 0-24 Reference [%]
1.1
2
3
1.3
1.2
130BP041.10
799 RPM
Auto Remote Ramping
1 (1)
36.4 kW7.83 A
0.000
53.2%
Status
1.1
1.2
2
1.3
130BP062.10
207RPM
Auto Remote Running
1 (1)
24.4 kW5.25A
6.9Hz
Status
4.1.3 Display Menu Keys
Menu keys are used for menu access for parameter set-up,
toggling through status display modes during normal
operation, and viewing fault log data.
130BP045.10
Status
Quick
Menu
Main
Menu
Alarm
Log
Key Function
Status Press to show operational information.
•
In Auto mode, press and hold to toggle
between status readout displays
•
Press repeatedly to scroll through each
status display.
•
Press and hold [Status] plus [
▲
] or [
▼
] to
adjust the display brightness.
•
The symbol in the upper right corner of the
display shows the direction of motor
rotation and which set-up is active. This is
not programmable.
Quick Menu Allows access to programming parameters for
initial set-up instructions and many detailed
application instructions.
•
Press to access Q2 Quick Setup for
sequenced instructions to program the basic
adjustable frequency drive set-up
•
Follow the sequence of parameters as
presented for the function set-up
Main Menu Allows access to all programming parameters.
•
Press twice to access top level index.
•
Press once to return to the last location
accessed.
•
Press and hold to enter a parameter
number for direct access to that parameter.
Alarm Log Displays a list of current warnings, the last 10
alarms, and the maintenance log.
•
For details about the adjustable frequency
drive before it entered the alarm mode,
select the alarm number using the
navigation keys and press [OK].
User Interface
VLT
®
AutomationDrive Instruction
Manual
4-2 MG.33.AI.22 - VLT
®
is a registered Danfoss trademark
44
