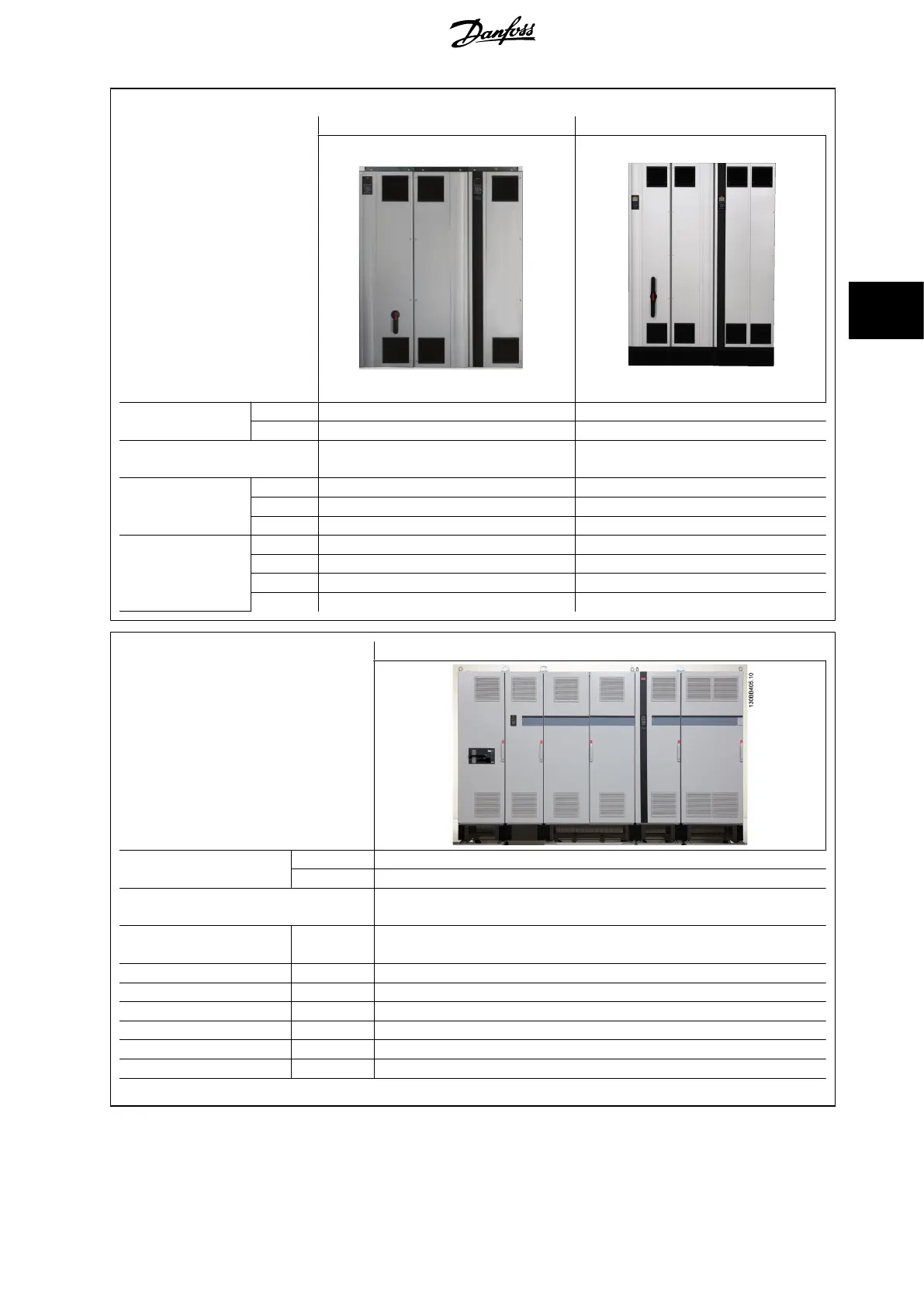

Mechanical Dimensions and Rated Power
Frame size D11 E7
130BB403.10
Enclosure protection
IP 21/54* 21/54*
NEMA Type 1 Type 1
Normal overload rated power -
110% overload torque
160 - 250 kW at 400 V
(380 - 480 V)
315 - 450 kW at 400 V
(380 - 480 V)
Shipping Dimensions Height 1712 mm 1942 mm
Width 1261 mm 1440 mm
Depth 1016 mm 1016 mm
Drive Dimensions Height 1750 mm 2000
Width 1260 mm 1440
Depth 380 mm 494
Max Weight 406 kg 646 kg
Frame size F17
Enclosure protection
IP 21/54*
NEMA Type 1
Normal overload rated power - 110% over-
load torque
500 - 710 kW at 400 V
(380 - 480 V)
Shipping Dimensions - filter
section/ drive section
Height 2324/ 2324
Width 2578/ 1569
Depth 1130/ 1130
Drive Dimensions Height 2200 mm
Width 3700 mm
Depth 600 mm
Max Weight 2000 kg
* Hybrid IP54 electronics, IP21 magnetics
VLT HVAC Low Harmonic Drive Operating In-
structions 4 How to Install
MG.16.A1.02 - VLT
®
is a registered Danfoss trademark 23
4
