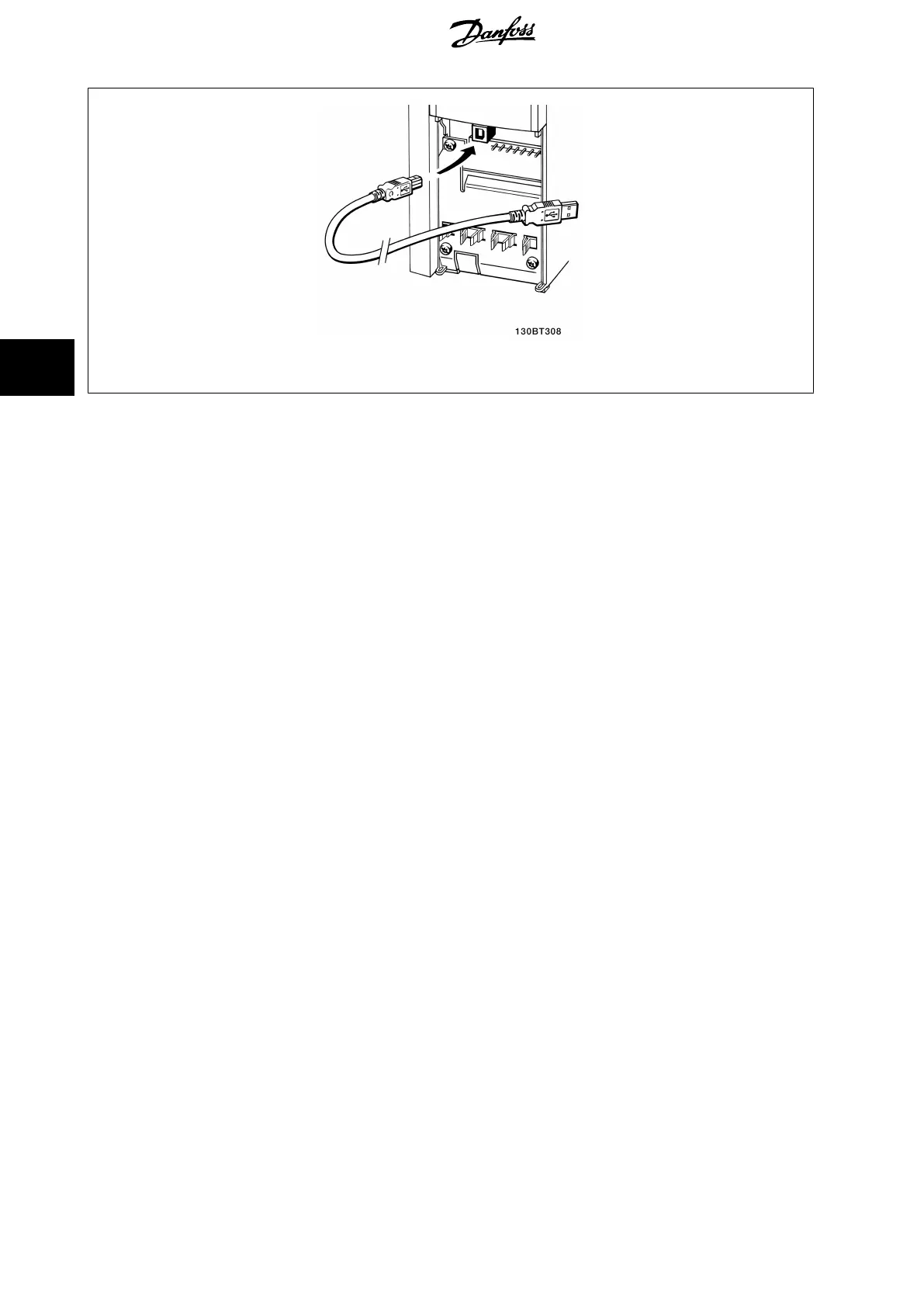

Illustration 5.5: For control cable connections, see section on
Control Terminals
.
5.1.12 PC software tools
PC-based Configuration Tool MCT 10
The Low Harmonic Drive is equipped with two serial communication ports. Danfoss provides a PC tool for communication between PC and frequency
converter, PC-based Configuration Tool MCT 10. Please check the section on
Available Literature
for detailed information on this tool.
MCT 10 set-up software
MCT 10 has been designed as an easy to use interactive tool for setting parameters in our frequency converters. The software can be downloaded from
the Danfoss internet site
http://www.Danfoss.com/BusinessAreas/DrivesSolutions/Softwaredownload/DDPC+Software+Program.htm
.
The MCT 10 set-up software will be useful for:
• Planning a communication network off-line. MCT 10 contains a complete frequency converter database
• Commissioning frequency converters on line
• Saving settings for all frequency converters
• Replacing a frequency converter in a network
• Simple and accurate documentation of frequency converter settings after commissioning.
• Expanding an existing network
• Future developed frequency converters will be supported
MCT 10 set-up software supports Profibus DP-V1 via a Master class 2 connection. It makes it possible to on line read/write parameters in a frequency
converter via the Profibus network. This will eliminate the need for an extra communication network.
Save frequency converter settings:
1. Connect a PC to the unit via USB com port. (NOTE: Use a PC, which is isolated from the mains, in conjunction with the USB port. Failure to do
so may damage equipment.)
2. Open MCT 10 Set-up Software
3. Choose “Read from drive”
4. Choose “Save as”
All parameters are now stored in the PC.
Load frequency converter settings:
1. Connect a PC to the frequency converter via USB com port
2. Open MCT 10 Set-up software
3. Choose “Open”– stored files will be shown
5 How to Operate the Low Harmonic Drive
VLT HVAC Low Harmonic Drive Operating In-
structions
78 MG.16.A1.02 - VLT
®
is a registered Danfoss trademark
5
