Danfoss VLT FC 103 - D10 H Enclosed Drive Exterior Dimensions

1
Passive harmonic lter/line reactor cabinet
2
D9h drive cabinet
3
Sine-wave cabinet
4
Standard pedestal
10.9.3 D10h Enclosed Drive Exterior Dimensions
e30bu143.10
400 (15.8) /
2000
55
(78.7)
100 (3.9)
600 (23.6)
600 (23.6)
(2.2)
1
3
4
5
600 (23.6)
2
600 (23.6)
600 (23.6)

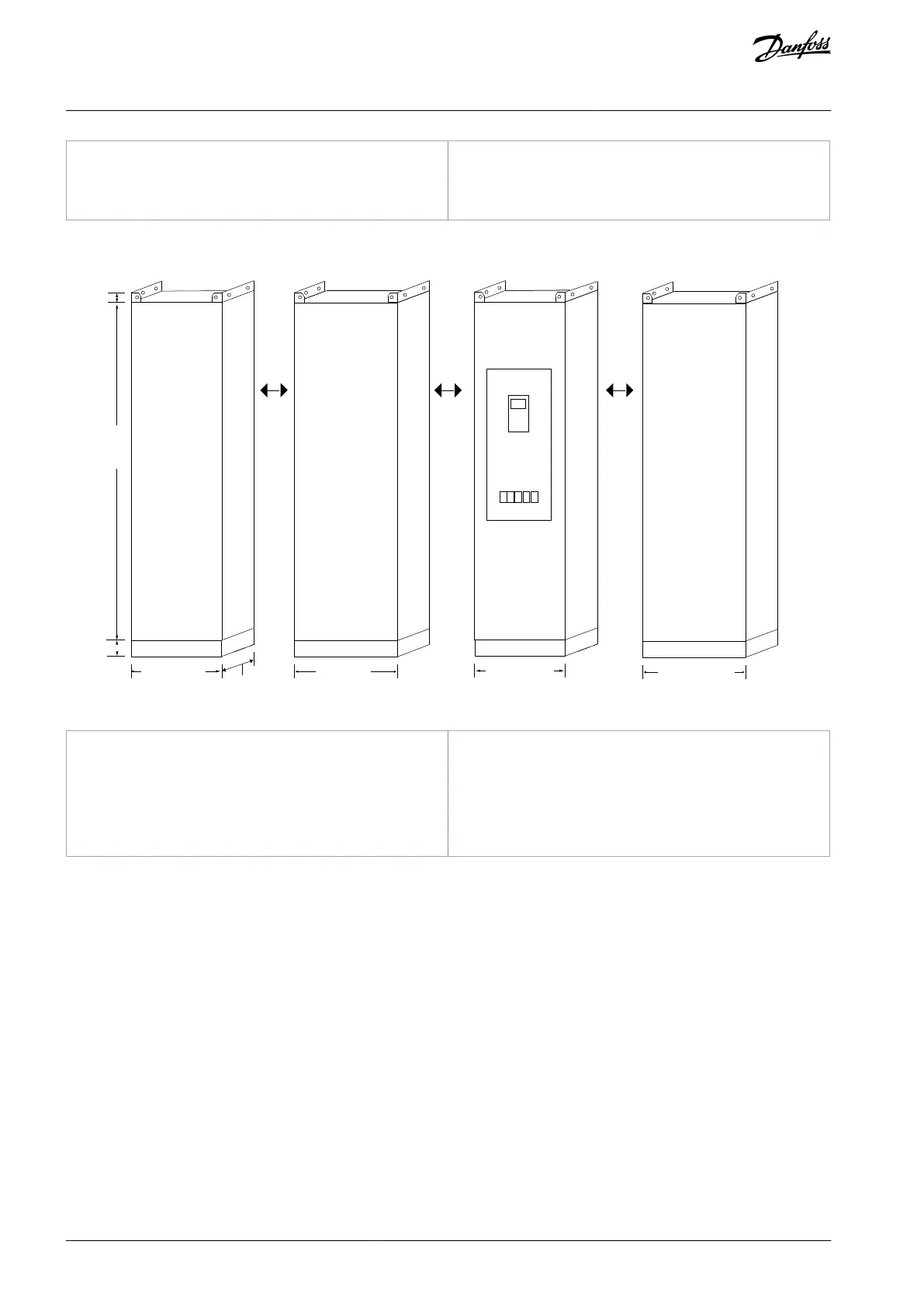

Illustration 73: Dimensions for D10h Enclosure with Standard Pedestal
1
Passive harmonic lter/line reactor cabinet
2
Options cabinet (provided when more than 1 input
option is ordered)
3
D10h drive cabinet
4
Sine-wave cabinet
5
Standard pedestal
AQ357954340588en-000201 / 130R0881162 | Danfoss A/S © 2020.09
Specications
VLT® Refrigeration Drive FC 103
Operating Guide
