Danfoss VLT FC 103 - 5.7 Control Compartment Wiring

-
-
e30bu148.10
R
S
T
R S T U V W
L1R
L2S
L3T
R S
T

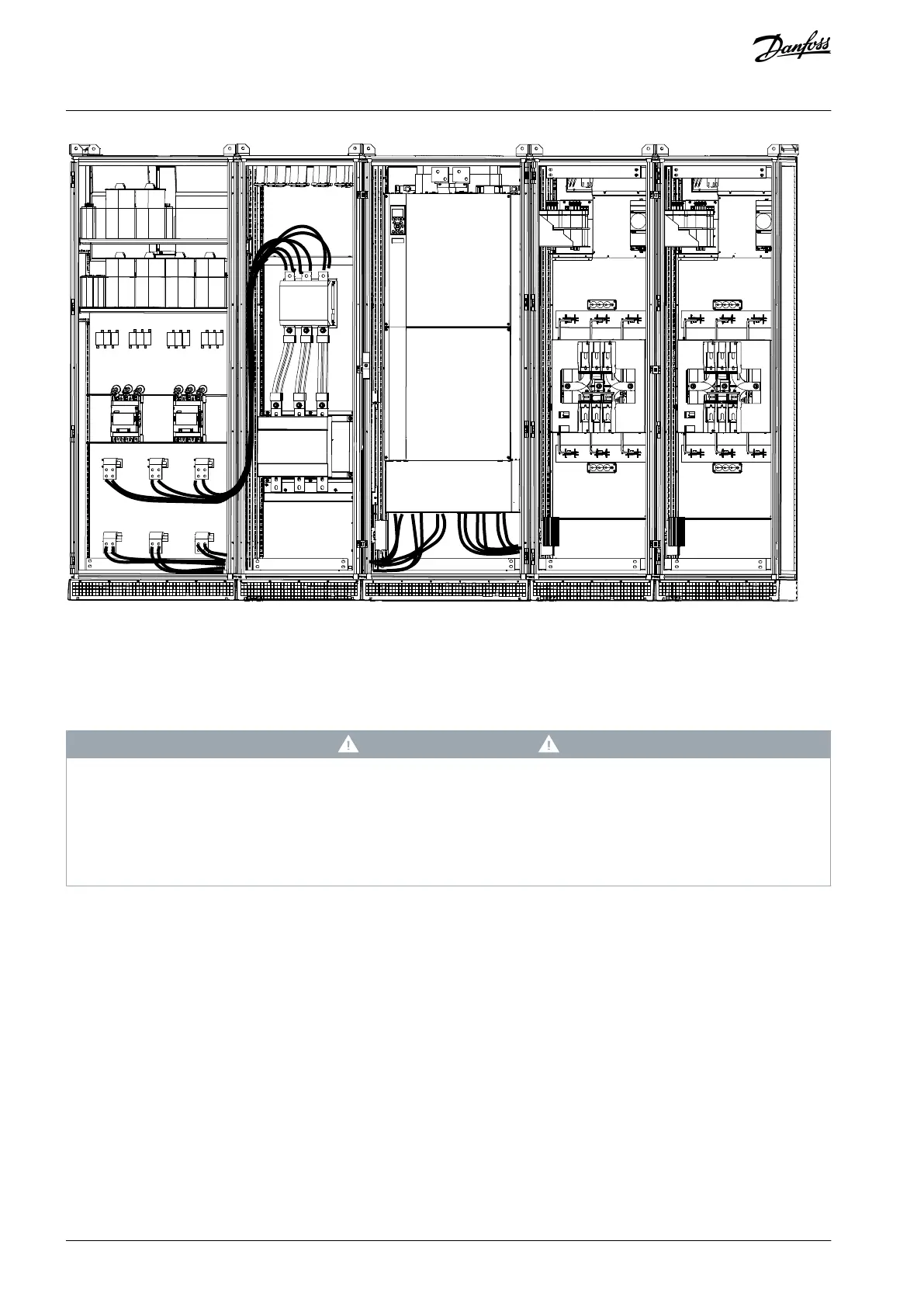

Illustration 39: Connecting Motor and Mains Cables (Example Shows a PHF Cabinet + Input Power Options Cabinet + E6h Drive Cabinet + Sine-
wave Cabinets)
5.7 Control Compartment Wiring
5.7.1 Safety Precautions
W A R N I N G
HIGH VOLTAGE
The mains disconnect switch does not disconnect the external voltage supply. Failure to disconnect the external voltage supply
before touching any components in the control compartment can result in death or serious injury.
Only qualied personnel must install, start up, and maintain the drive.
Disconnect the external voltage supply.
AQ357954340588en-000201 / 130R088168 | Danfoss A/S © 2020.09
Electrical Installation
VLT® Refrigeration Drive FC 103
Operating Guide
