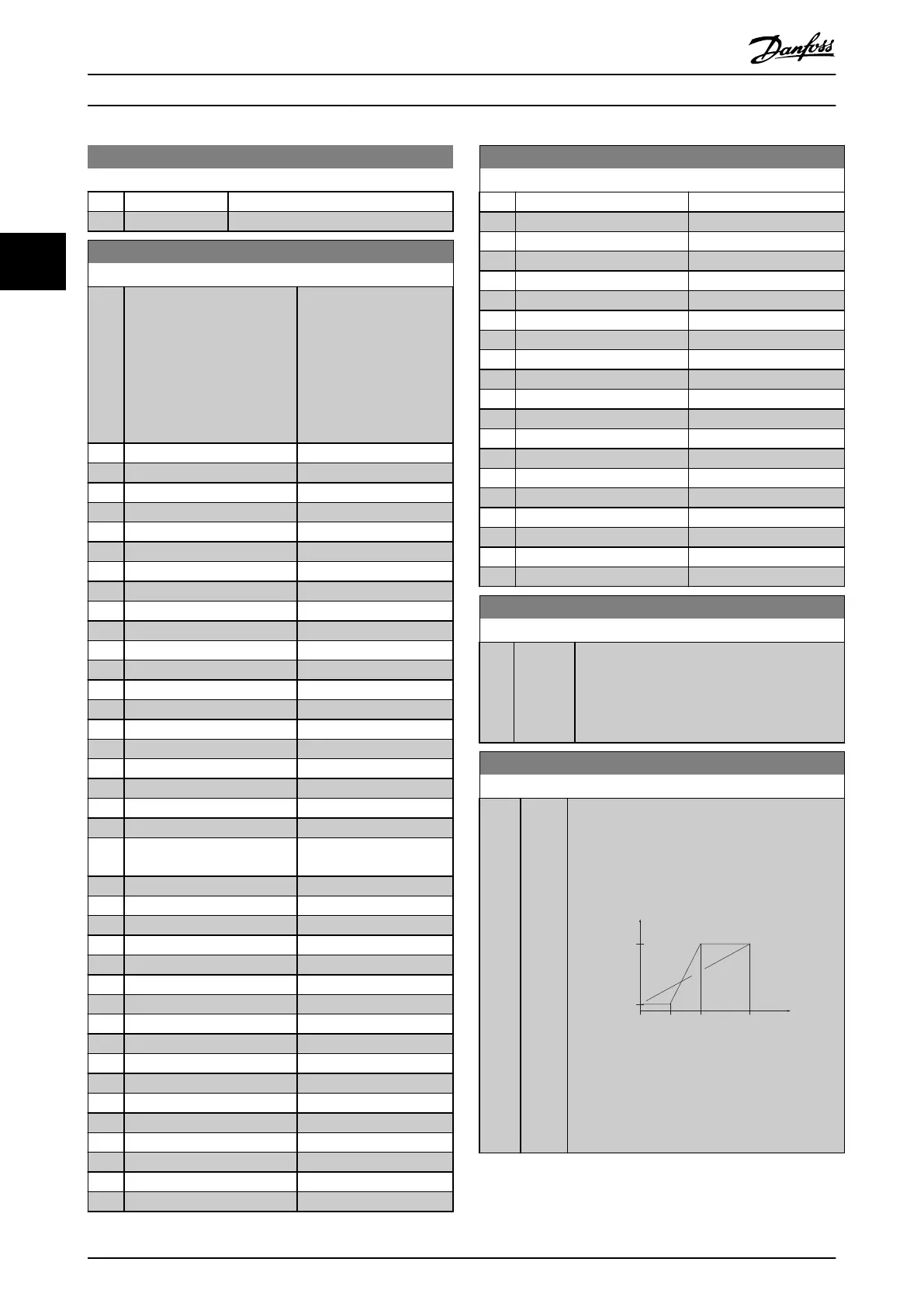

6-91 Terminal 42 Analog Output
Option: Function:
[185] Mirror AI54 mA 0–20
[254] DC Link Voltage 0–65535 V
6-92 Terminal 42 Digital Output
Option: Function:
Select the function of
terminal 42 as an analog
current output. See also
parameter 6-90 Terminal 42
Mode. See
parameter 5-40 Function
Relay for description of the
choices.
[0] * No operation
[1] Control Ready
[2] Drive ready
[3] Drive ready/remote control
[4] Standby / no warning
[5] Drive running
[6] Running / no warning
[7] Run in range/no warning
[8] Run on ref/no warning
[9] Alarm
[10] Alarm or warning
[12] Out of current range
[13] Below current, low
[14] Above current, high
[16] Below speed, low
[17] Above speed, high
[19] Below feedback, low
[20] Above feedback, high
[21] Thermal warning
[22] Ready, no thermal warning
[23] Remote, ready, no thermal
warning
[24] Ready, Voltage OK
[25] Reverse
[26] Bus OK
[35] External Interlock
[36] Control word bit 11
[37] Control word bit 12
[41] Below reference, low
[42] Above ref, high
[45] Bus Control
[60] Comparator 0
[61] Comparator 1
[62] Comparator 2
[63] Comparator 3
[64] Comparator 4
[65] Comparator 5
[70] Logic rule 0
[71] Logic rule 1
6-92 Terminal 42 Digital Output
Option: Function:
[72] Logic rule 2
[73] Logic rule 3
[74] Logic rule 4
[75] Logic rule 5
[80] SL digital output A
[81] SL digital output B
[82] SL digital output C
[83] SL digital output D
[160] No alarm
[161] Running reverse
[165] Local ref. active
[166] Remote ref. active
[167] Start command activ
[168] Drive in hand mode
[169] Drive in auto mode
[190] No-Flow
[193] Sleep Mode
[194] Broken Belt Function
[196] Fire Mode
[198] Drive Bypass
6-93 Terminal 42 Output Min Scale
Range: Function:
0 %* [0 -
200 %]
Scale for the minimum output (0 mA or 4 mA)
of the analog signal at terminal 42. Set the
value to be the percentage of the full range of
the variable selected in parameter 6-91 Terminal
42 Analog Output.
6-94 Terminal 42 Output Max Scale
Range: Function:
100
%*
[0 -
200 %]
Scale for the maximum output (20 mA) of the
scaling at terminal 42. Set the value to be the
percentage of the full range of the variable
selected in parameter 6-91 Terminal 42 Analog
Output.
(mA)
0%
20
0/4
100%
Current
Analog
output
Min Scale
par. 6-93
Variable
for
output
example:
Power
Analog
Output
Max Scale
par. 6-94
130BB772.10
Illustration 3.12 Output Maximum Scale
Parameters
VLT
®
HVAC Basic Drive FC 101
60 Danfoss A/S © 04/2018 All rights reserved. MG18B502
