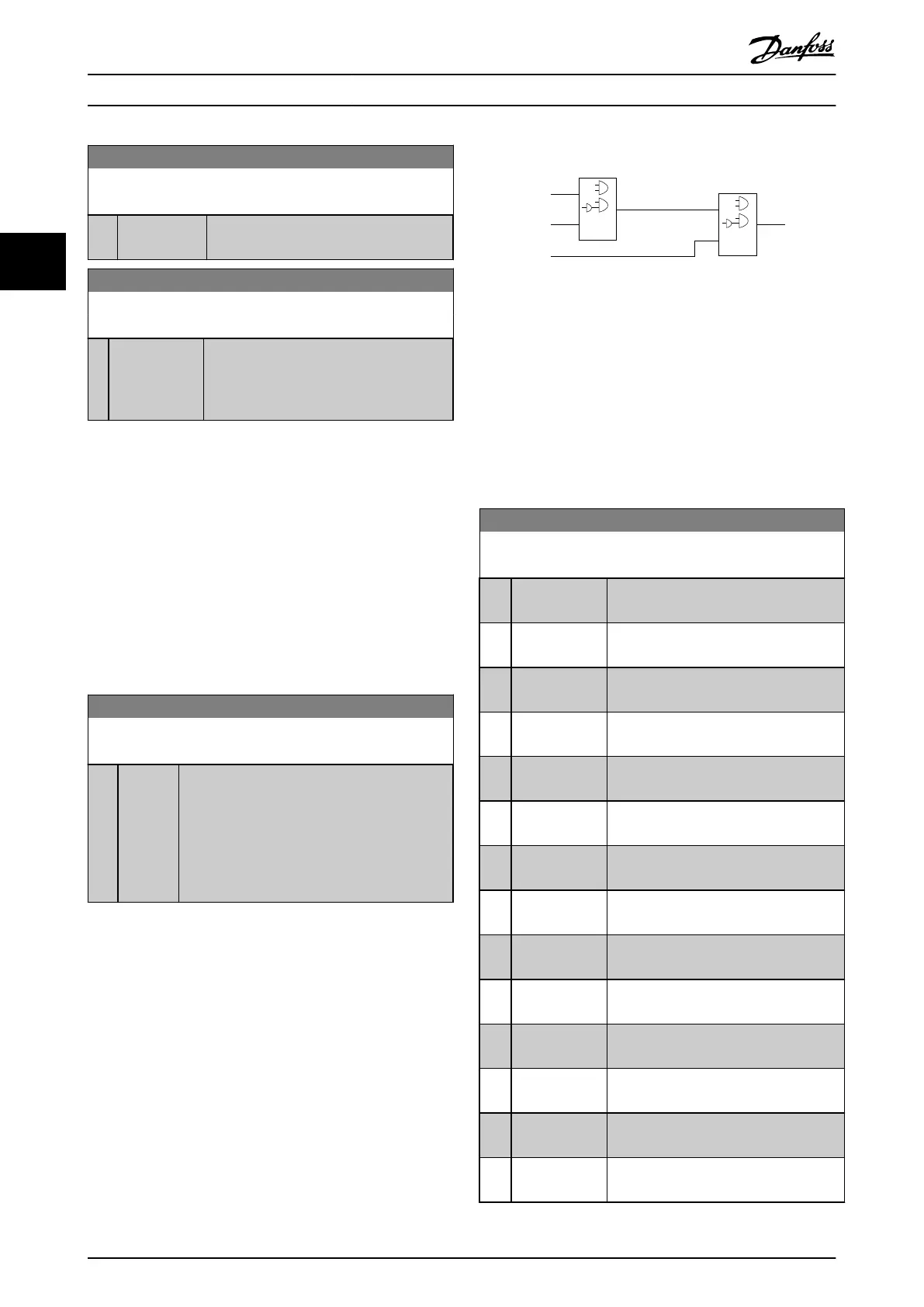

Danfoss VLT HVAC Basic Drive FC 101 Programming Guide

13-11 Comparator Operator
Array [6]
Option: Function:
[2] Greater Than
(>)
Select [2] > for the inverse logic of option
[0] <.
13-12 Comparator Value
Array [6]
Range: Function:
0* [-9999 -
9999 ]
Enter the trigger level for the variable that is
monitored by this comparator. This
parameter is an array parameter containing
comparator values 0–5.
3.9.4 13-2* Timers
Use the result (true or false) from timers directly to dene
an event (see parameter 13-51 SL Controller Event), or as
boolean input in a logic rule (see parameter 13-40 Logic
Rule Boolean 1, parameter 13-42 Logic Rule Boolean 2, or
parameter 13-44 Logic Rule Boolean 3). A timer is only false
when started by an action (for example [29] Start timer 1)
until the timer value entered in this parameter has elapsed.
Then it becomes true again.
All parameters in this parameter group are array
parameters with index 0–2. Select index 0 to program
timer 0, select index 1 to program timer 1, and so on.
13-20 SL Controller Timer
Array [8]
Range: Function:
0 s* [0 -
3600 s]
Enter the value to dene the duration of the
false output from the programmed timer. A timer
is only false if it is started by an action (see
parameter 13-52 SL Controller Action [29–31] and
parameter 13-52 SL Controller Action [70–74] Start
timer X) and until the timer value has elapsed.
Array parameters contain timers 0–7.
3.9.5 13-4* Logic Rules
Combine up to 3 boolean inputs (true/false inputs) from
timers, comparators, digital inputs, status bits, and events
using the logical operators AND, OR, and NOT. Select
boolean inputs for the calculation in parameter 13-40 Logic
Rule Boolean 1, parameter 13-42 Logic Rule Boolean 2, and
parameter 13-44 Logic Rule Boolean 3. Dene the operators
used to combine the selected inputs logically in
parameter 13-41 Logic Rule Operator 1 and
parameter 13-43 Logic Rule Operator 2.
. . .
. . .
. . .
. . .
Par. 13-43
Logic Rule Operator 2
Par. 13-41
Logic Rule Operator 1
Par. 13-40
Logic Rule Boolean 1
Par. 13-42
Logic Rule Boolean 2
Par. 13-44
Logic Rule Boolean 3
130BB673.10
Illustration 3.15 Logic Rules
Priority of calculation
The results of parameter 13-40 Logic Rule Boolean 1,
parameter 13-41 Logic Rule Operator 1, and
parameter 13-42 Logic Rule Boolean 2 are calculated rst.
The outcome (true/false) of this calculation is combined
with the settings of parameter 13-43 Logic Rule Operator 2
and parameter 13-44 Logic Rule Boolean 3, yielding the nal
result (true/false) of the logic rule.
13-40 Logic Rule Boolean 1
Array [6]
Option: Function:
[0] * False Enters the xed value of false in the logic
rule.
[1] True Enters the xed value true in the logic
rule.
[2] Running See parameter 13-01 Start Event for further
description.
[3] In range See parameter 13-01 Start Event for further
description.
[4] On reference See parameter 13-01 Start Event for further
description.
[7] Out of current
range
See parameter 13-01 Start Event for further
description.
[8] Below I low See parameter 13-01 Start Event for further
description.
[9] Above I high See parameter 13-01 Start Event for further
description.
[16] Thermal
warning
See parameter 13-01 Start Event for further
description.
[17] Mains out of
range
See parameter 13-01 Start Event for further
description.
[18] Reversing See parameter 13-01 Start Event for further
description.
[19] Warning See parameter 13-01 Start Event for further
description.
[20] Alarm (trip) See parameter 13-01 Start Event for further
description.
[21] Alarm (trip lock) See parameter 13-01 Start Event for further
description.
Parameters
VLT
®
HVAC Basic Drive FC 101
70 Danfoss A/S © 04/2018 All rights reserved. MG18B502
33
