4.1.6 Initial Commissioning
The easiest way of carrying out the initial commissioning is by pressing [Quick Menu] and following the quick setup procedure us-
ing LCP 102 (read the following table from left to right). The example applies to open-loop applications.

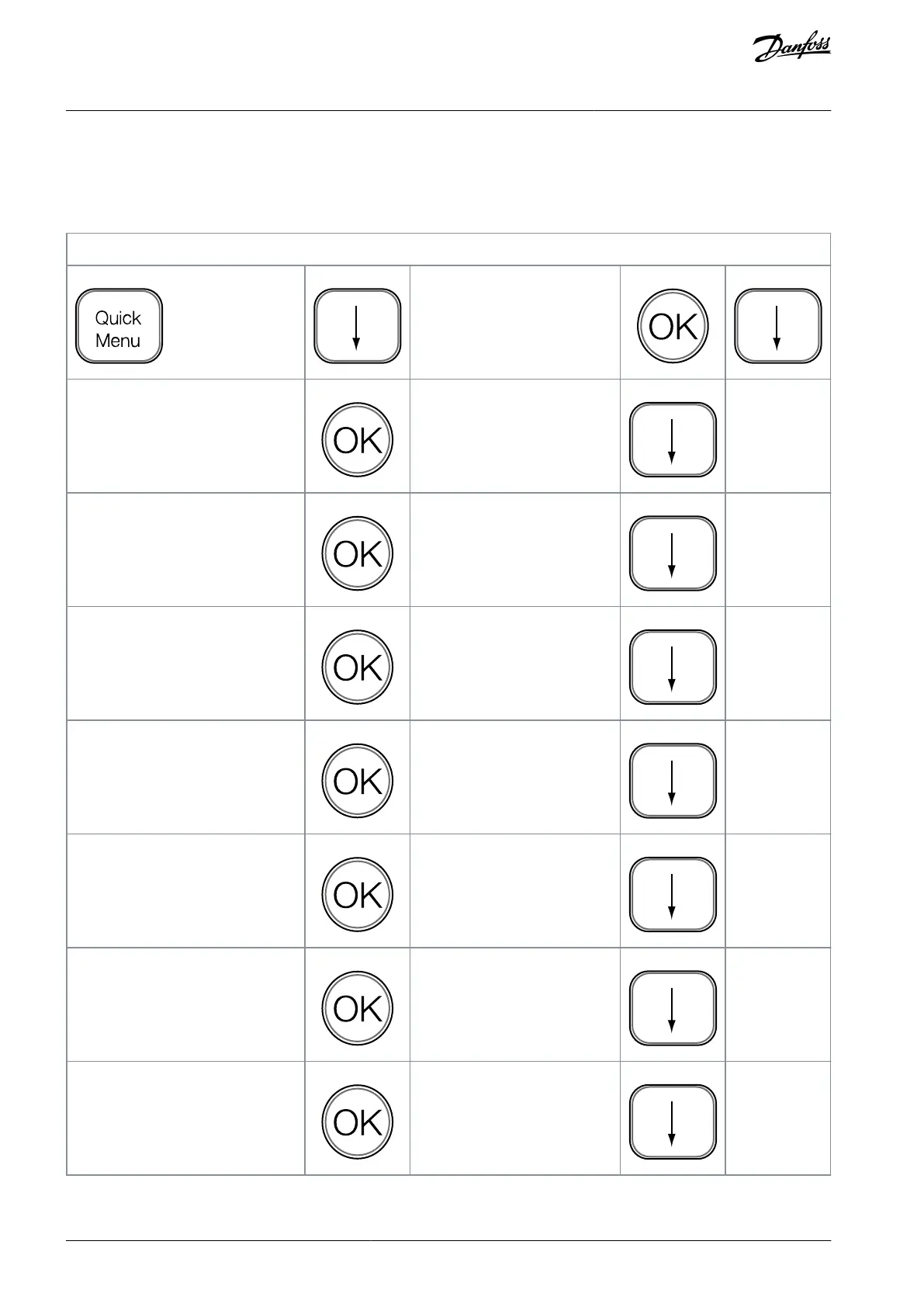

Table 3: Quick Setup Procedure
Press
Q2 Quick Menu.
Parameter 0-01 Language
Set language.
Parameter 1-20 Motor Power [kW]
Set motor nameplate power.
Parameter 1-22 Motor Voltage
Set nameplate voltage.
Parameter 1-23 Motor Frequency
Set nameplate frequency.
Parameter 1-24 Motor Current
Set nameplate current.
Parameter 1-25 Motor Nominal Speed
Set nameplate speed in RPM.
Parameter 5-12 Terminal 27 Digital In-
put
If terminal default is [2] Coast in-
verse, it is possible to change this
setting to [0] No function. No con-
nection to terminal 27 is then
needed for running AMA.
AU275636650261en-000101 / 130R033426 | Danfoss A/S © 2022.12
How to Program
VLT AutomationDrive FC 301/302
Programming Guide

Danfoss VLT HVAC Drive FC 102 Specifications

General

Enclosure	IP20, IP21, IP55
Ambient Temperature Range	-10°C to +40°C
Storage Temperature Range	-25°C to +70°C
Relative Humidity	5-95% (non-condensing)
Communication Protocols	Modbus RTU, BACnet, Profibus
Certifications	CE, UL, cUL
Control Principle	PWM
Cooling Method	Forced air cooling
Input Voltage	200-240V, 380-480V, 525-600V
Control Modes	sensorless vector control, closed loop vector control
