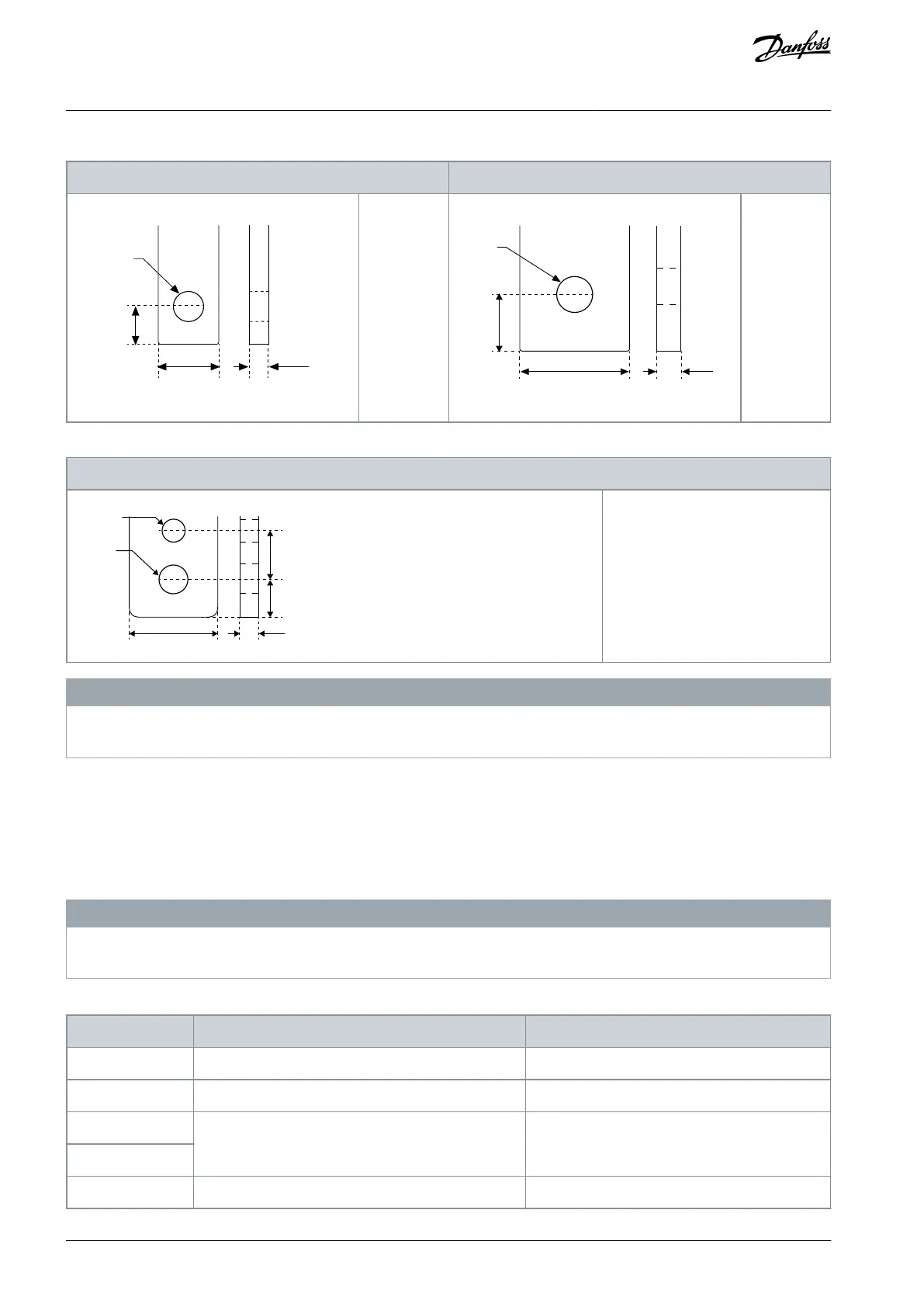

Table 22: Power Terminations, MCD6-0144B~MCD6-0244B, MCD6-0287B~MCD6-0579B, and MCD6-0160C~MCD6-0448C
MCD6-0144B~MCD6-0244B
MCD6-0287B~MCD6-0579B and MCD6-0160C~MCD6-0448C
6 mm
0.24 in
10 mm 0.4 in
20 mm
0.8 in
9 mm
(M8)
e77ha722.10
19 Nm
(14 ft-lb)
6 mm
0.24 in
17 mm 0.7 in
34 mm
1.7 in
13 mm
(M12)
e77ha723.10
66 Nm
(49 ft-lb)
Table 23: Power Terminations, 0654B~1250B & 0590C~1134C
0654B~1250B & 0590C~1134C
10 mm
15 mm
40 mm
13 mm
(M12)
10.5 mm
(M10)
35 mm
e77ha800.10
66 Nm (49 ft-lb)
N O T I C E
If the installation requires large diameter cables, it is possible to complete each termination with 2 smaller cables, 1 on each side
of the busbar.
5.7.1 Wiring Connectors
Select a connector according to the wire size, material, and application requirements.
5.7.1.1 Models MCD6-0144B~MCD6-0579B
For models MCD6-0144B to MCD6-0579B, a compression connector is recommended. The recommended crimping tool is
TBM8-750.
N O T I C E
S3 internal bypass model has 6 busbars (x3 for AC in, x3 for motor out), meaning that 2 x 157G0203 are required. S3 external
bypass models have 9 busbars (x3 for AC in, x3 for bypass, x3 for motor out) meaning that 3 x 157G0203 are required.
Table 24: Recommended Lugs
Model
Example connector - aluminum cable
Example connector - copper cable
MCD6-0144B
61162
60150
MCD6-0171B
61165
60156
MCD6-0194B
61171
60165
MCD6-0244B
MCD6-0287B
61162
60150
AQ262141844215en-000401 / 175R117438 | Danfoss A/S © 2020.12
Installation
VLT® Soft Starter MCD 600
Operating Guide
