Danfoss VLT Micro Drive

130BD020.10
(mA)
0%
20
0/4
100%
Current
Analogue
output
Min Scale
par. 6-93
Variable
for
output
example:
Speed
(RPM)
Analogue
Output
Max Scale
par. 6-94

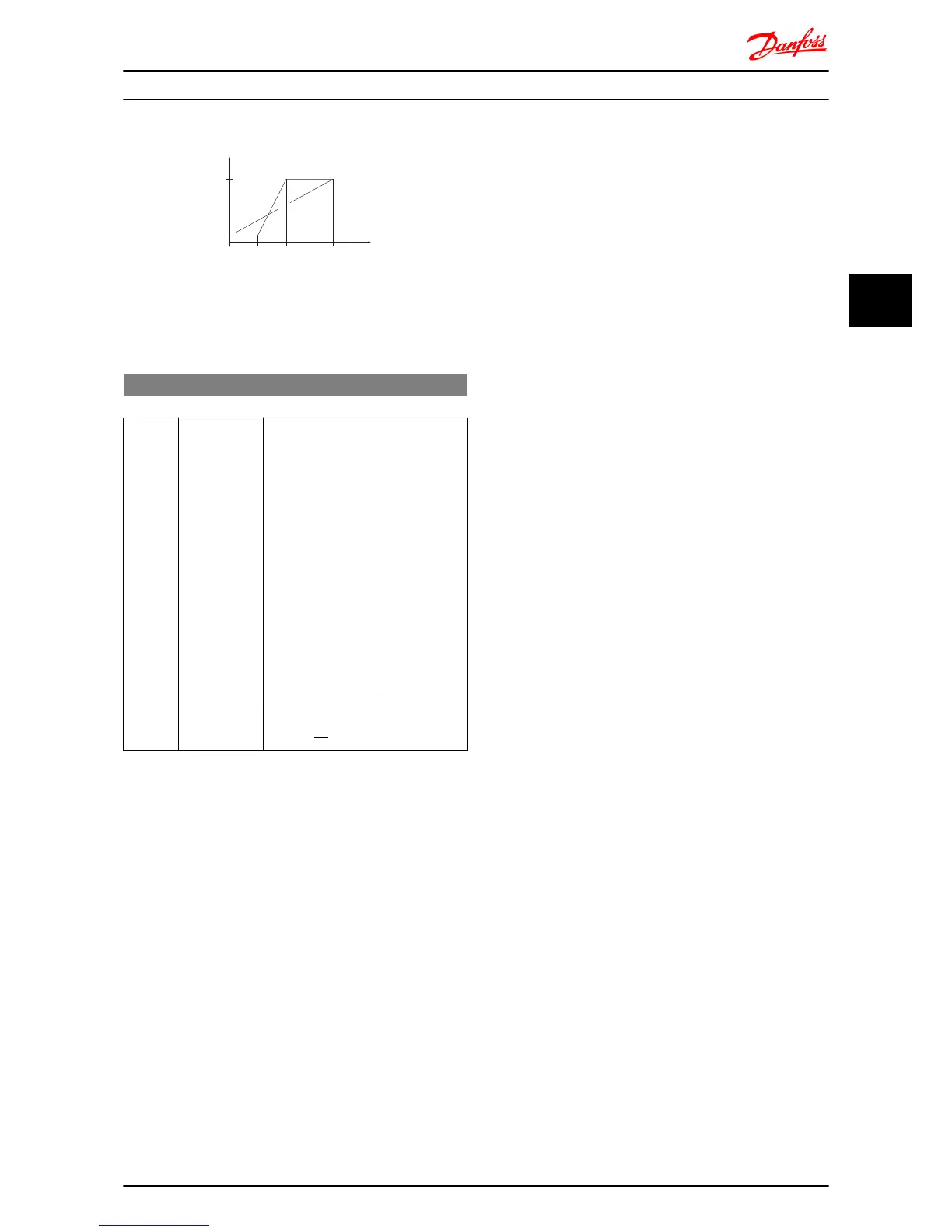

Illustration 4.9
6-94 Terminal 42 Output Max. Scale
Range: Function:
100.00%*
[0.00-200.00%]
Scale maximum output of selected
analog signal at terminal 42. Set value
to maximum value of current signal
output. Scale output to give a current
lower than 20 mA at full scale; or 20
mA at an output below 100% of
maximum signal value.
If 20 mA is the desired output current
at a value between 0-100% of the full-
scale output, programme percentage
value in the parameter, i.e. 50% = 20
mA. If a current between 4 and 20
mA is desired at maximum output
(100%), calculate percentage value as
follows:
20 mA
desired maximum current
× 100 %
i.e.
10 mA =
20
10
× 100 = 200 %
