99

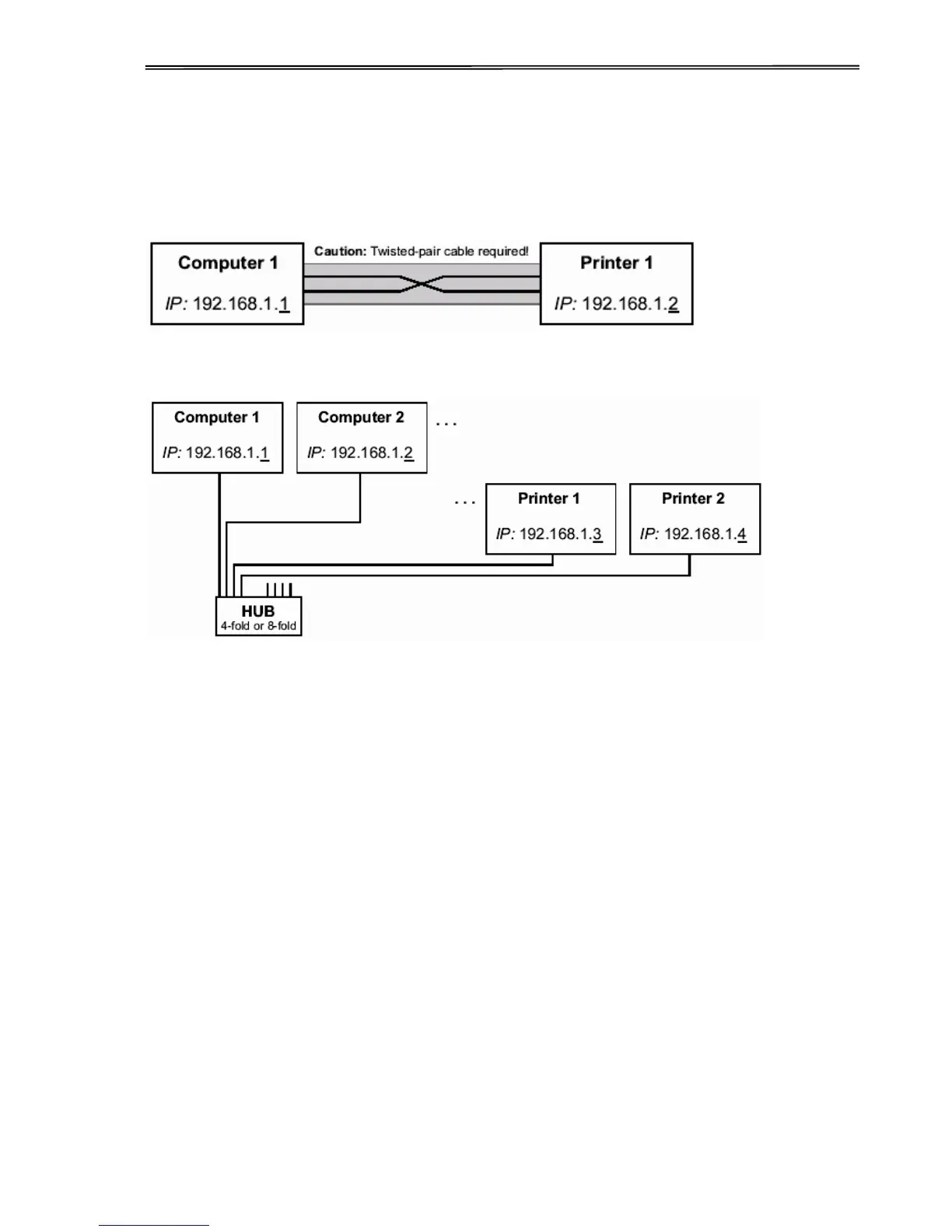

Example of a Printer connected to a computer in an Network
◆ The assumed address space corresponds to the TCP/IP address, class C, 192.168.1.xxx.
◆ The subnet mask to be used is 255.255.255.0.
◆ The address of the router, or gateway, is 0.0.0.0, if not available.
Example of several devices in an Ethernet
7.3.3 USB 2.0 I/O – Full Speed
The USB interface conforms to the Universal Serial Bus 2.0 Specifications. It supports the Full
Speed mode at 12 Mbps. It uses the “B” type USB connector.
