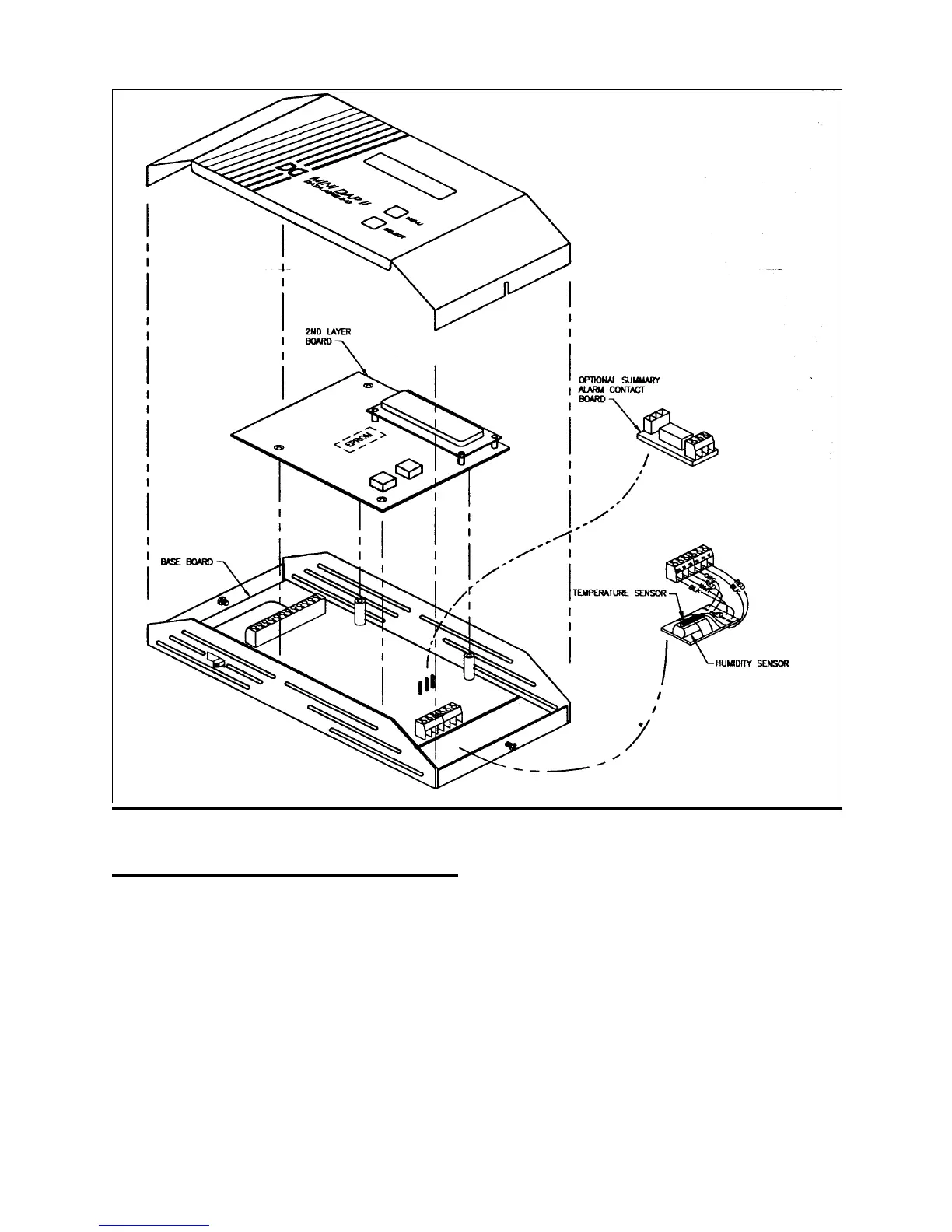

Figure 4: Board assembly with
temperature, humidity sensor and optional summary alarm contact
Programming and Selections
Menu Operations and Settings
To access the menus setting of Mini-Dap II,
Press Menu button to go to menu 1
1-SET POINTS
Press Select button to display current
temperature setpoint report
TEMP SP: 72°F
Press Select button again to display current
humidity setpoint report
HUM SP: 50%
Press Menu button
NOTE: Menu #2 -OVERRIDE RQST will not
show if Menu #13- DAY SCHEDULE is set for
“N” or Menu #14-OVERRIDE ENBL is set for “N”
2-OVERRIDE RQST
Press Select button to display current setting
OVERRIDE RQST: N (No)
Press Select button to change to “Y” (yes)
An override request will temporarily
force the Mini-DAP II to operate in
“occupied” mode for the time period
REV 8/03
8
To Next Page
