DataCard CD800 User Manual

40 Card Printer Driver Management Tasks
Windows 7, Windows 8.1, and Windows 10

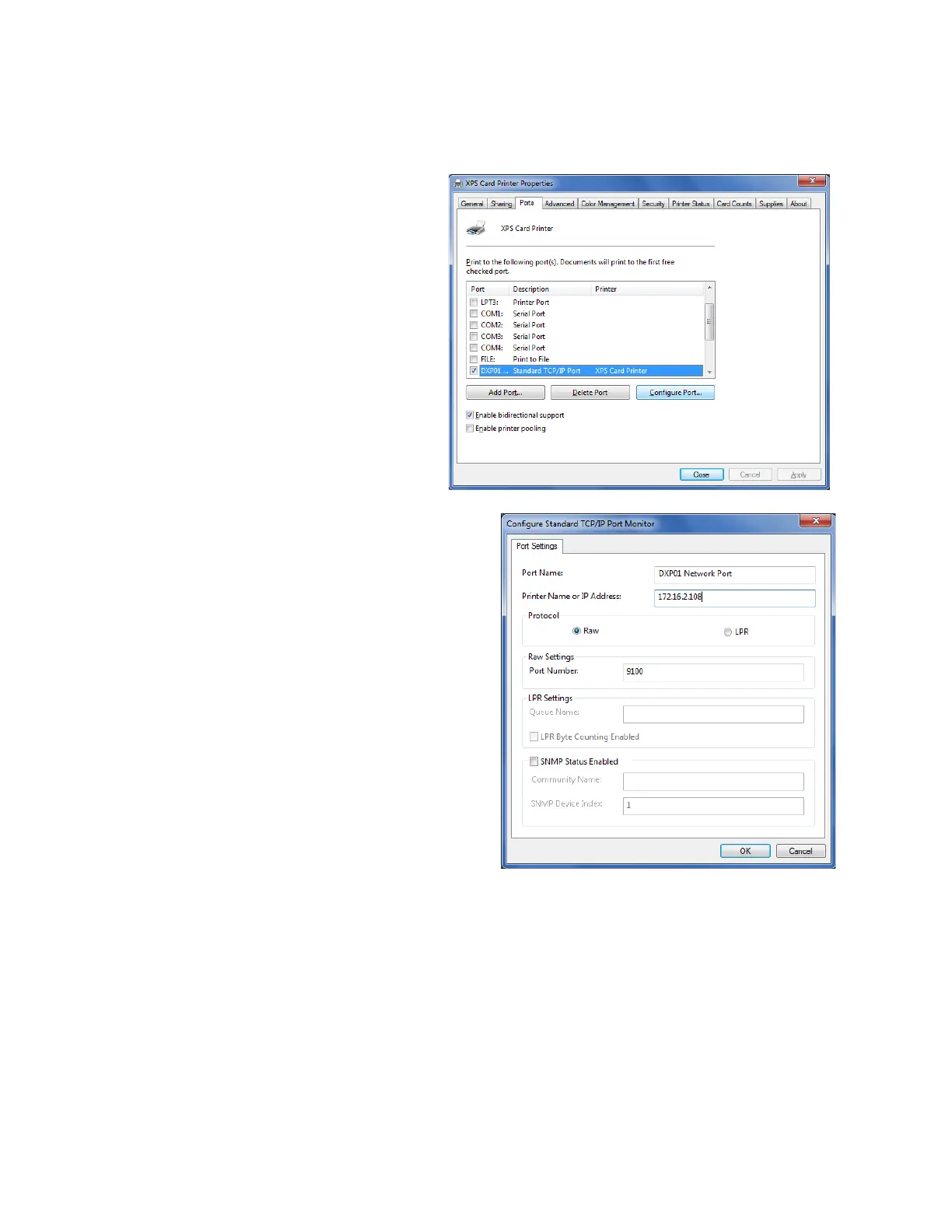

1. Open the Printer Properties
window and select the Ports tab.
2. Select the installed network
printer you want to change and
click Configure Port.
3. On the Configure Standard TCP/IP
Port Monitor dialog box, enter the new
IP address for the printer.
4. Click OK to save the new settings and
then click Close on the Printer Properties
window.

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
