DataCard CD800 User Manual

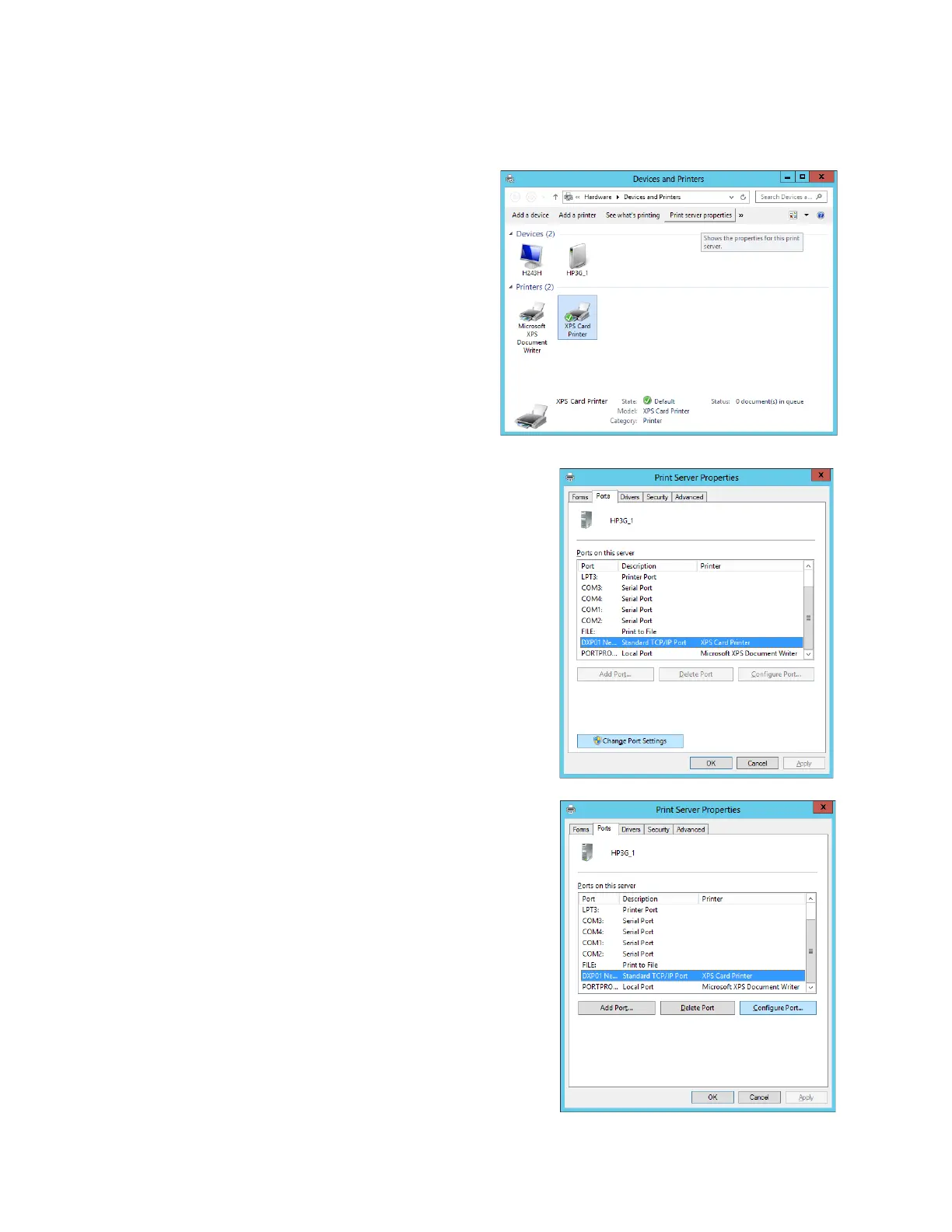

XPS Card Printer Driver User’s Guide 41
Windows Server 2008 and Windows Server 2012
1. Open the Devices and Printers window
and click the network printer you want to
change. Print server properties displays in
the menu bar.
2. Click Print server properties and select
the Ports tab on the Print Server Properties
window.
3. Scroll down and select the printer whose IP
address you want to change. Click Change Port
Settings.
4. The Print Server Properties window displays
again. Select the printer again and click Configure
Port.

DataCard CD800 Specifications

General

Print Resolution	300 dpi
Weight	12 lbs (5.4 kg)
Power Requirements	100-240 VAC, 50/60 Hz
Print Technology	Dye-sublimation
Card Capacity	100 cards (standard hopper)
Connectivity	USB
Card Size	CR80 (85.6 mm x 54 mm)
Operating System Compatibility	Windows
Card Thickness	0.020" - 0.040" (0.51 mm - 1.02 mm)
