DataCard CE870

CE870 Instant Issuance System Installation and Administrator’s Guide 31

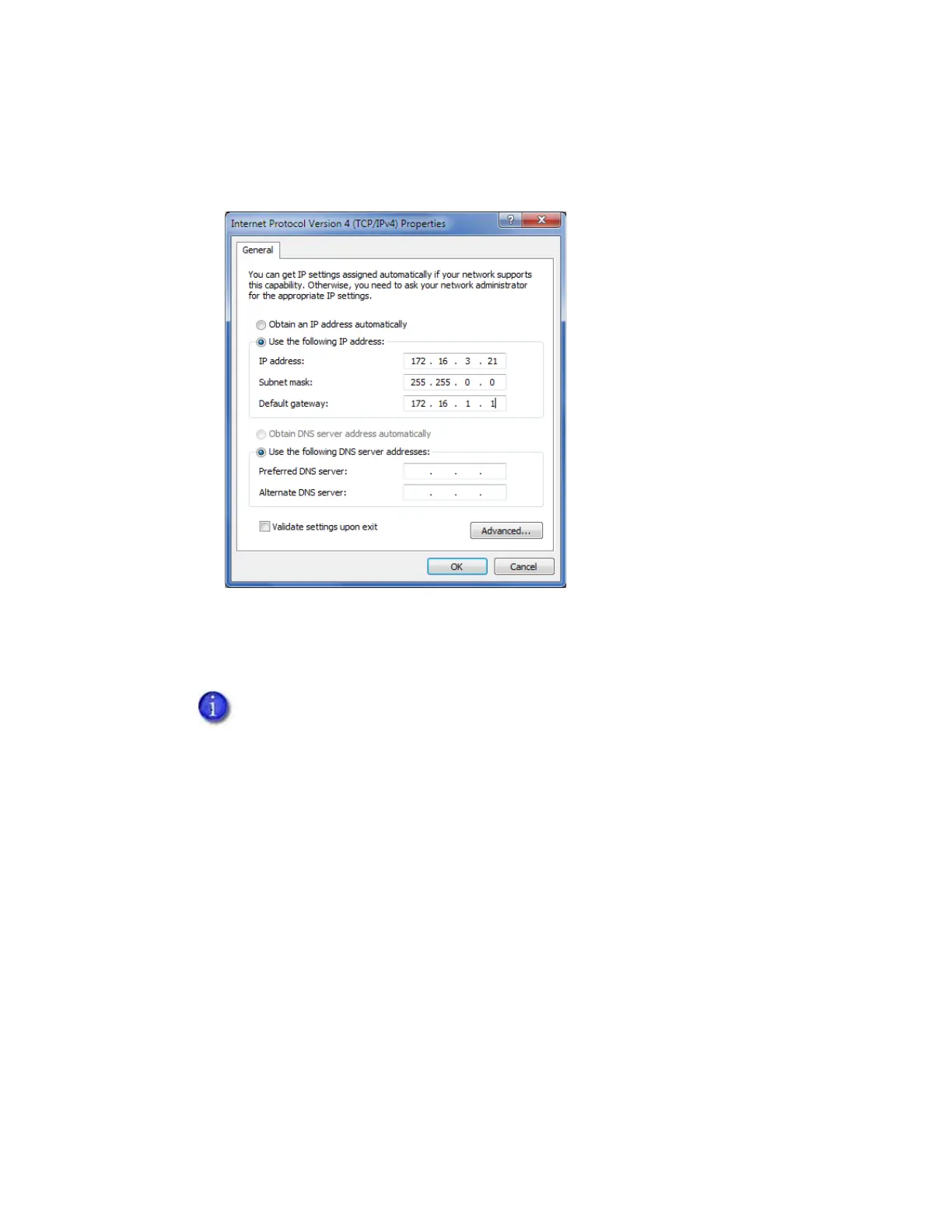

4. Use the Properties dialog box to enter the IP address information. Select Use the following IP
address.
a. In the IP address field, enter the value for the static IP address that you set on the front
panel of the printer. Give the last section of the IP address a value that is at least plus one
from the address on the printer front panel.
b. In the Subnet mask and Default gateway fields, enter the subnet mask and default
gateway address that you entered on the front panel of the printer.
c. When you finish entering values for IP address, subnet mask, and gateway address,
click OK.
For example, if the IP address that is set on the front panel of the printer is
172.17.1.113, enter the address as 172.17.1.114 on the computer.
