CE870 Instant Issuance System Installation and Administrator’s Guide 13

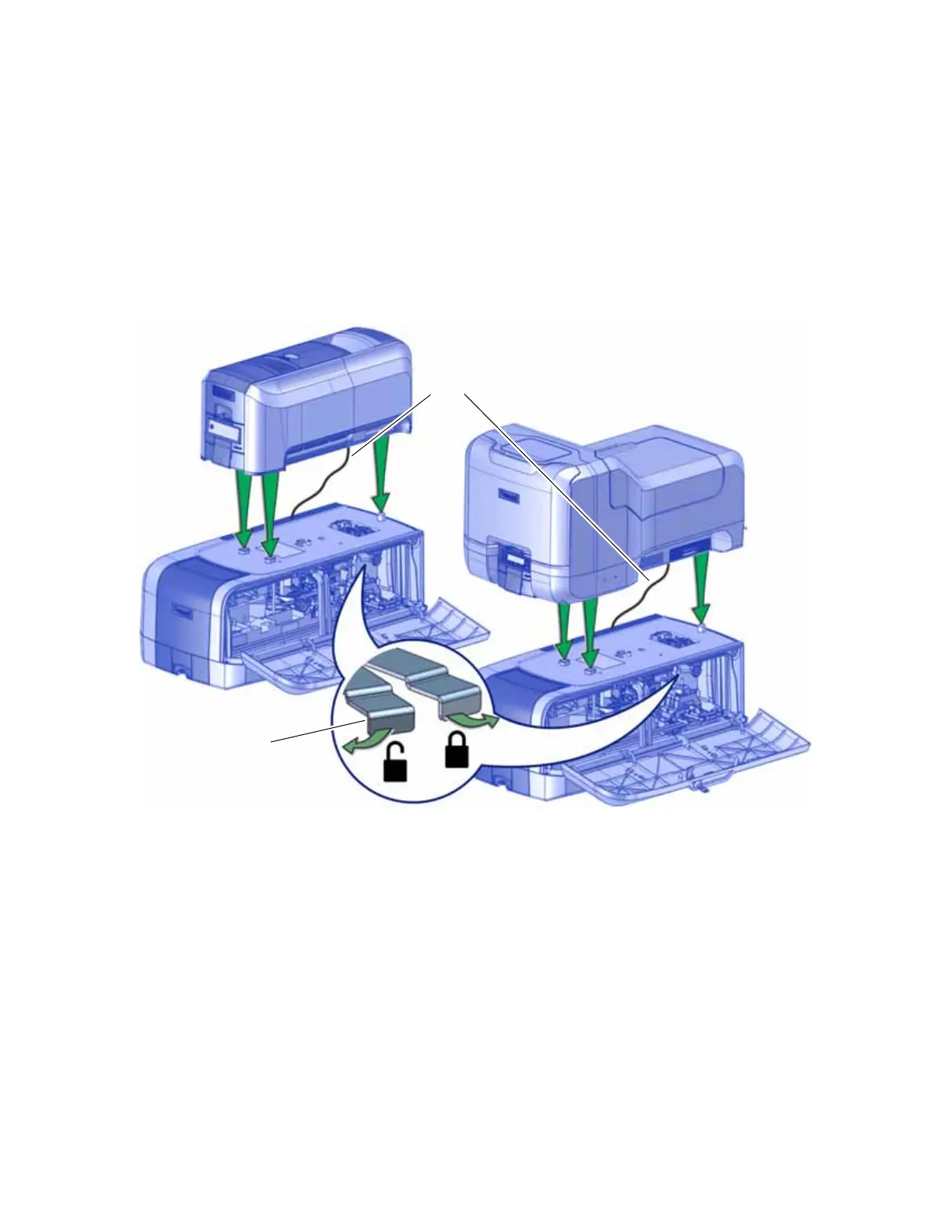

Assemble the Printer and Embosser
1. Locate the interconnect cable in the cable routing area of the embosser and make sure it
remains accessible.
2. Slide the printer locking lever in the embosser to the left to place the mounting lock in the
unlocked position.
3. Lift the printer over the embosser and align the pins on the embosser with the holes on the
underside of the printer.
4. Press down carefully, but firmly, on the printer component to position it.
5. Push the printer locking lever to the right to lock the printer onto the embosser. Make sure
that the printer is securely locked to the embosser.
Single-Hopper System
Multi-Hopper System
Printer Locking
Lever
Interconnect
Cable
To Next Page
