6-54 Removal and Replacement
Replacement Notes

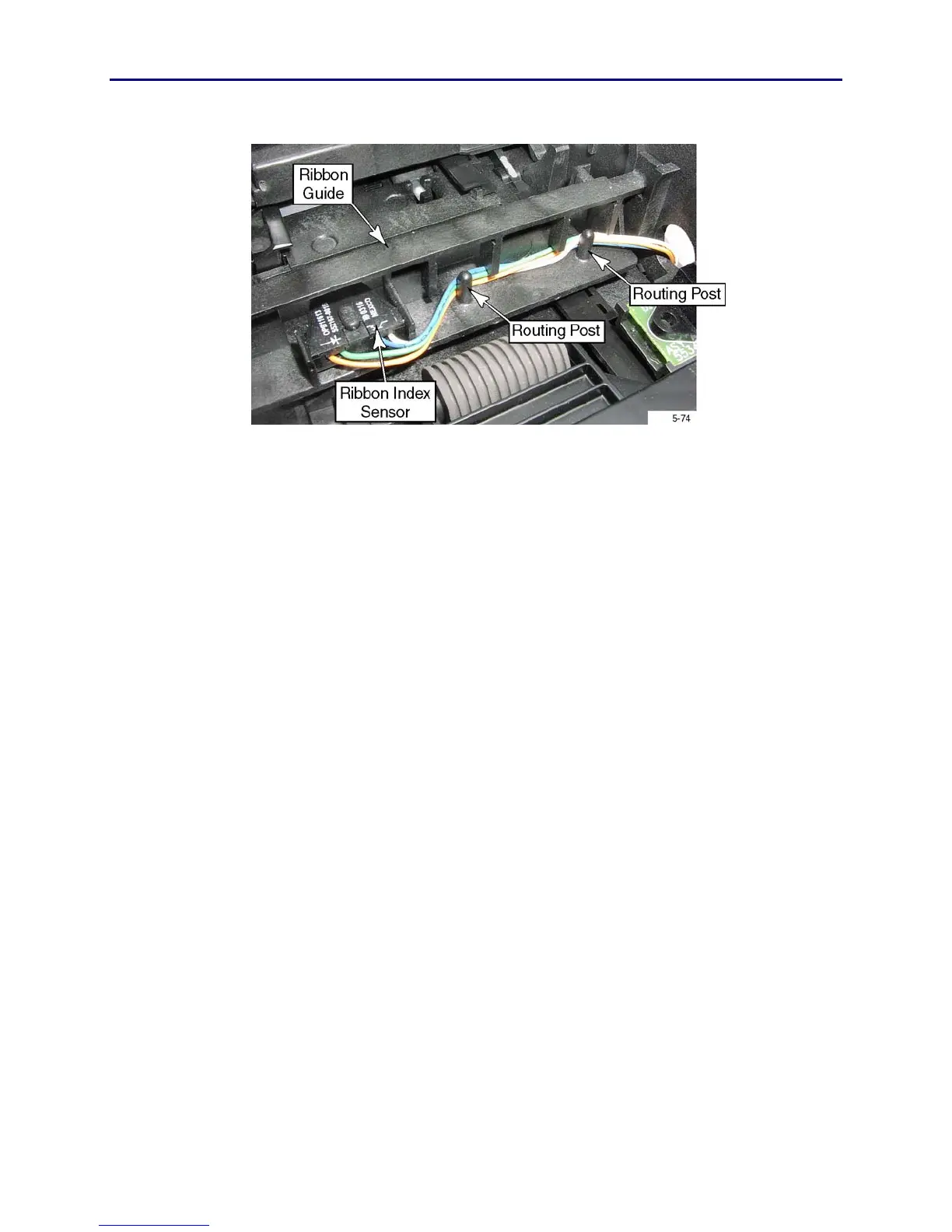

• Route the cable through the ribbon guide as shown below.
• Refer to the Print Engine Front Wire Routing Diagram and Print Engine Cable
Connection Diagram for replacement details.
• Use the sensor display in Diagnostics to verify the sensor changes state as the
ribbon is advanced.
