3-10 Routine Maintenance
Run the Cleaning Cards
1. Connect the printer to the computer and turn on the power.
2. Remove the cleaning roller, print ribbon, laminator cartridges, and any cards
from the input hopper.

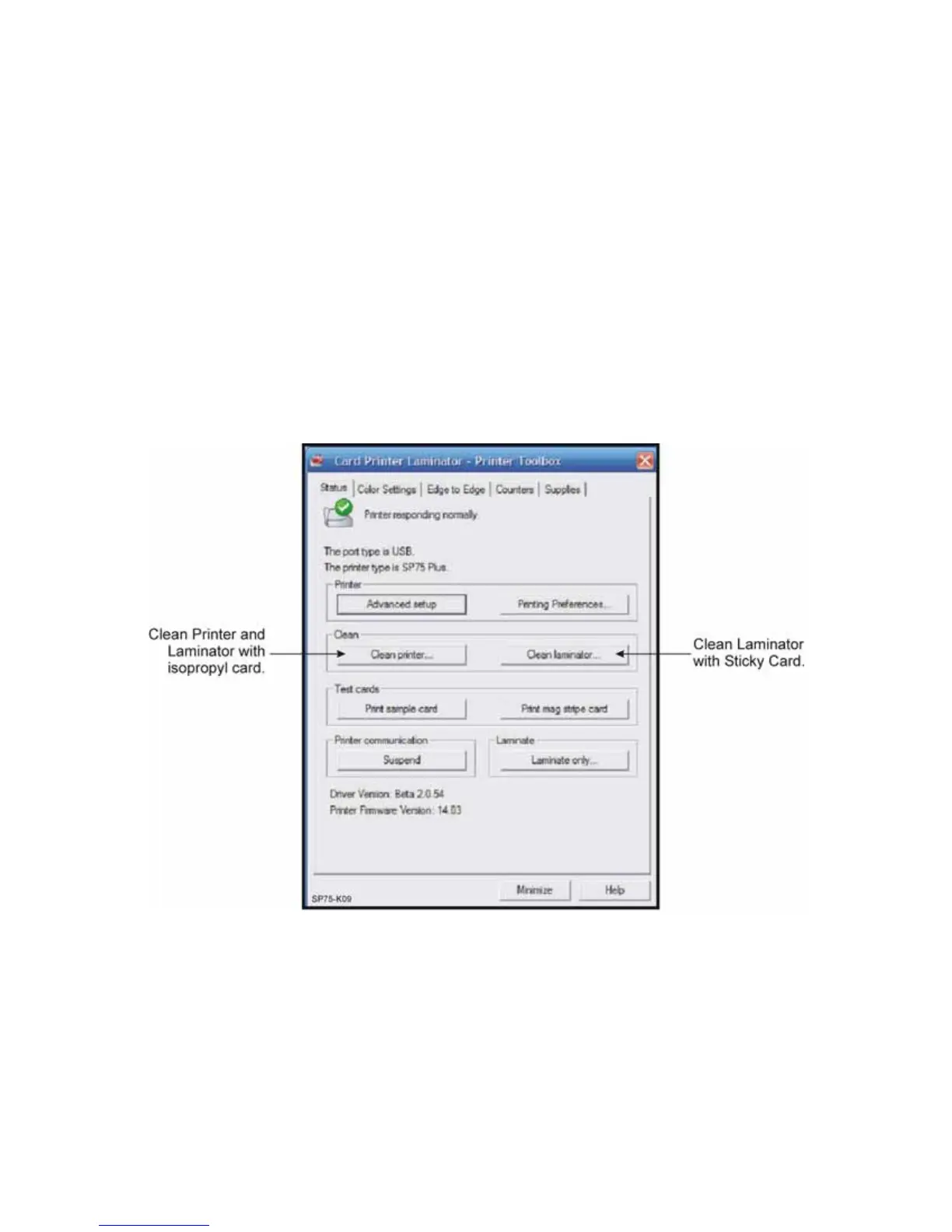

3. Open the Printer Toolbox Dialog, and click on Clean Laminator.
4. Load the sticky cleaning card in the output hopper just below the static
brush.
A. The printer will pull the card into the laminator.
B. When the cleaning is complete, you may have to manually pull the card
from the exit roller.
5. Load the isopropyl cleaning card in the input hopper.
6. Open the Printer Toolbox Dialog and click on Clean Printer.
7. If additional cleaning is required, wipe the rollers with the isopropanol
cleaning pen or 99% isopropanol.
8. Put a new cleaning sleeve on the cleaning spindle and replace the roller.
9. Print several test cards and examine them for quality.

