6-80 Removal and Replacement
Magnetic Clutch/Spring Clutch/Duplex Rollers
These three procedures require the same preliminary steps and are grouped
together for convenience.
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the ribbon cartridge and cleaning roller.
3. Remove the
Main Enclosure (page 6-15).
4. Disconnect the duplex interface cable from the interface board.
5. Remove the
Upper Duplex Module (page 6-71) from the printer.

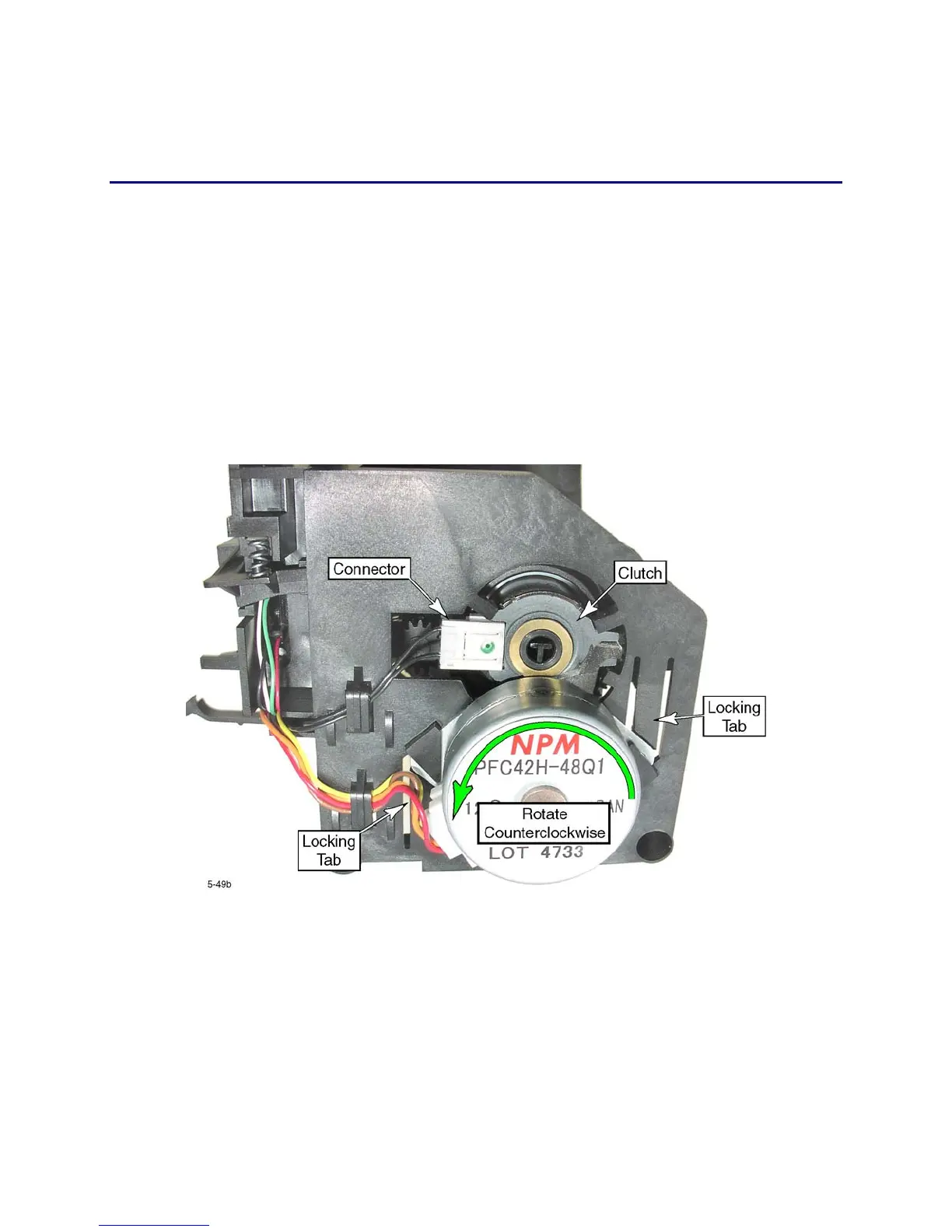

6. Remove the duplex motor by simultaneously pressing in on the locking tabs,
and rotating the motor.
7. Disconnect the clutch connector from the clutch.
