CP80 and CP80 Plus Service Manual 6-125
Lower Heater Assembly
Removal Procedure
1. Turn off the printer and unplug the power cord.
2. Remove the
Main Enclosure (page 6-15).
3. Remove the
Upper Printer Assembly (page 6-38).
4. Remove the
Laminator Transport Assembly from the base and control board
(page
6-97). (This includes disconnecting all of the cable connectors.)

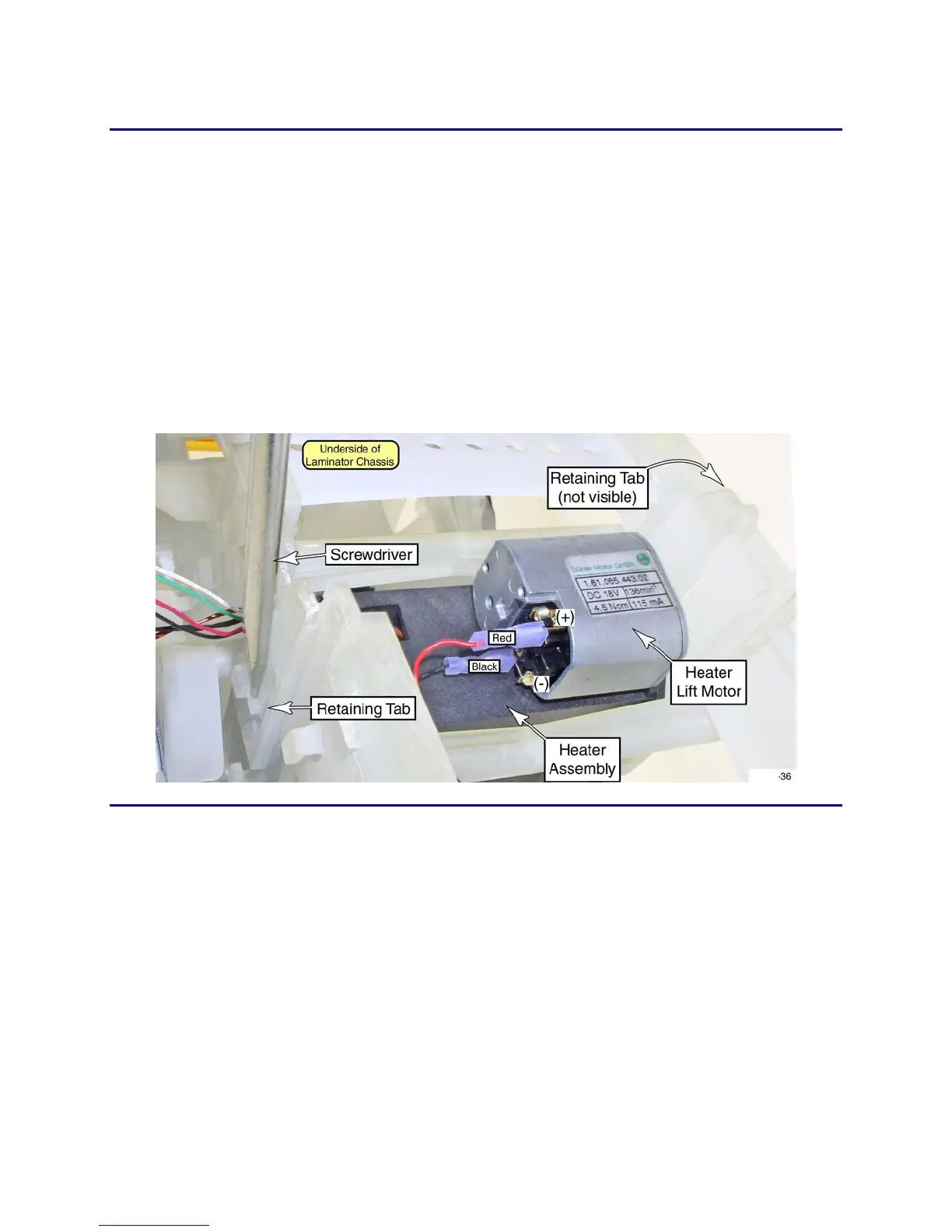

5. Disconnect the two wires from the heater lift motor.
6. Free the wires from their cable guides.
7. Gently pry the two retaining tabs away from the heater assembly and slide
the assembly up to remove it.
Follow-up Procedure
• Make sure the motor wires are connected properly. Reversing the wires will
reverse the rotation of the motor. The polarity is shown above.
• Refer to the Laminator Cable Connection Diagram and Laminator Rear Wire
Routing Diagram for replacement details.
• Print several test cards.
