6-56 Removal and Replacement

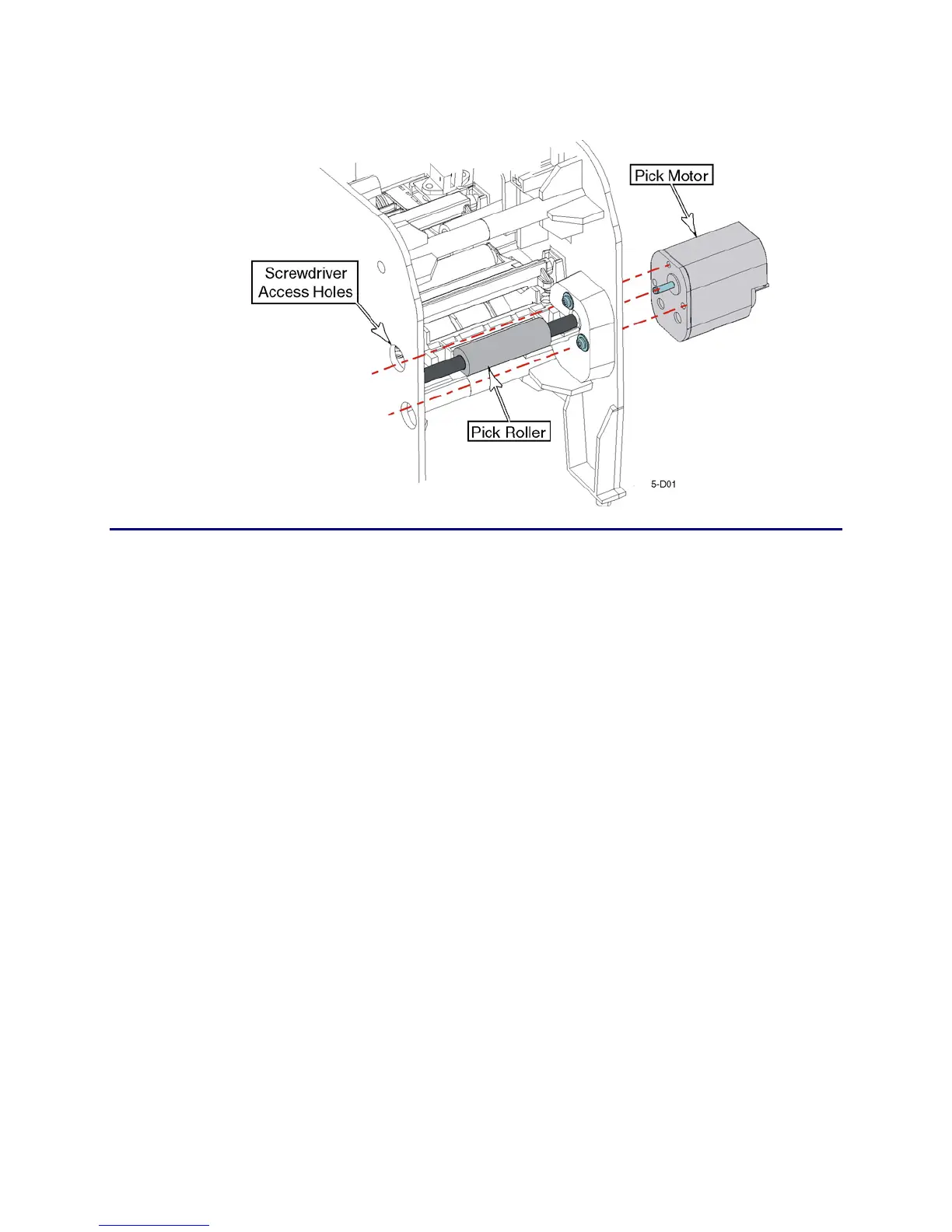

5. Remove the two screws that secure the pick motor to the transport chassis,
and remove the motor and roller.
Replacement Procedure
1. Place the pick roller in the transport chassis.
2. While positioning the pick motor, rotate the pick roller until the shaft-flat
lines up with the flat on the roller.
3. Tighten the mounting screws to 8 in-lbs.
4. Continue reassembling the printer.
5. Run the Pick and Eject Card Test in Diagnostics to verify that the motor is
functioning properly.
