CP80 and CP80 Plus Service Manual 6-83

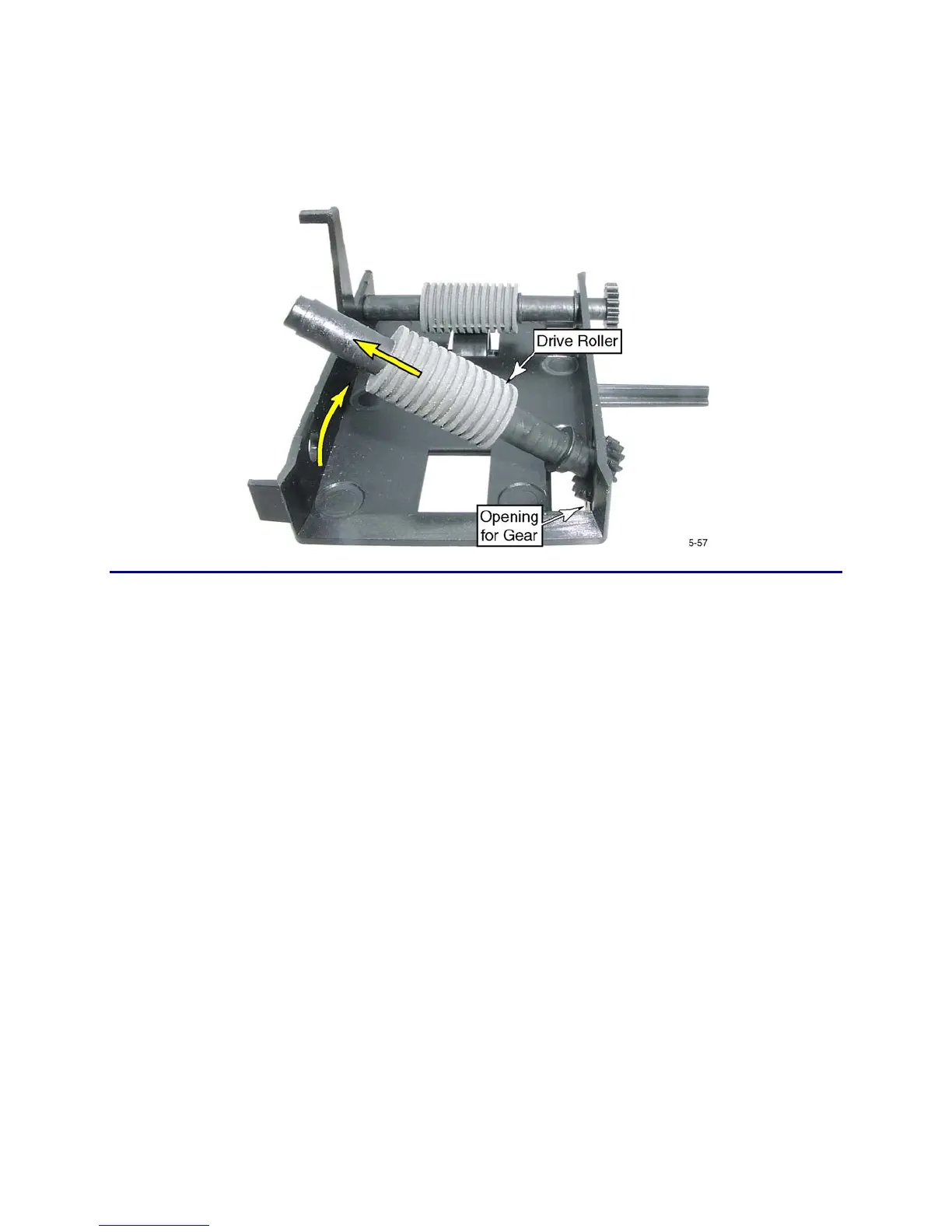

14. To remove the drive rollers:
A. Spread the non-gear sidewall of the flipper and pull back on the roller.
B. Tilt the roller shaft up and withdraw the gear through the opening in the
sidewall.
Replacement Notes
• The magnetic clutch will not fit into the opening if it is rotated incorrectly.
• After replacing the flipper assembly in the duplex module, rotate the flipper
until the spring clutch engages the stop tabs (clockwise as viewed from the
motor).
• If you rotate the flipper counterclockwise you can feel the drag of the spring
clutch, but it will not engage the stop tabs.
• When the flipper is rotated clockwise, the spring clutch will snap over the
stop tabs and will no longer turn in that direction.
• Verify that the clutch is properly engaged. When properly engaged, the
flipper will rotate in only one direction.
• If necessary, adjust the duplex home offset.
• Print several test cards to verify that the duplex assembly is functioning
properly.
