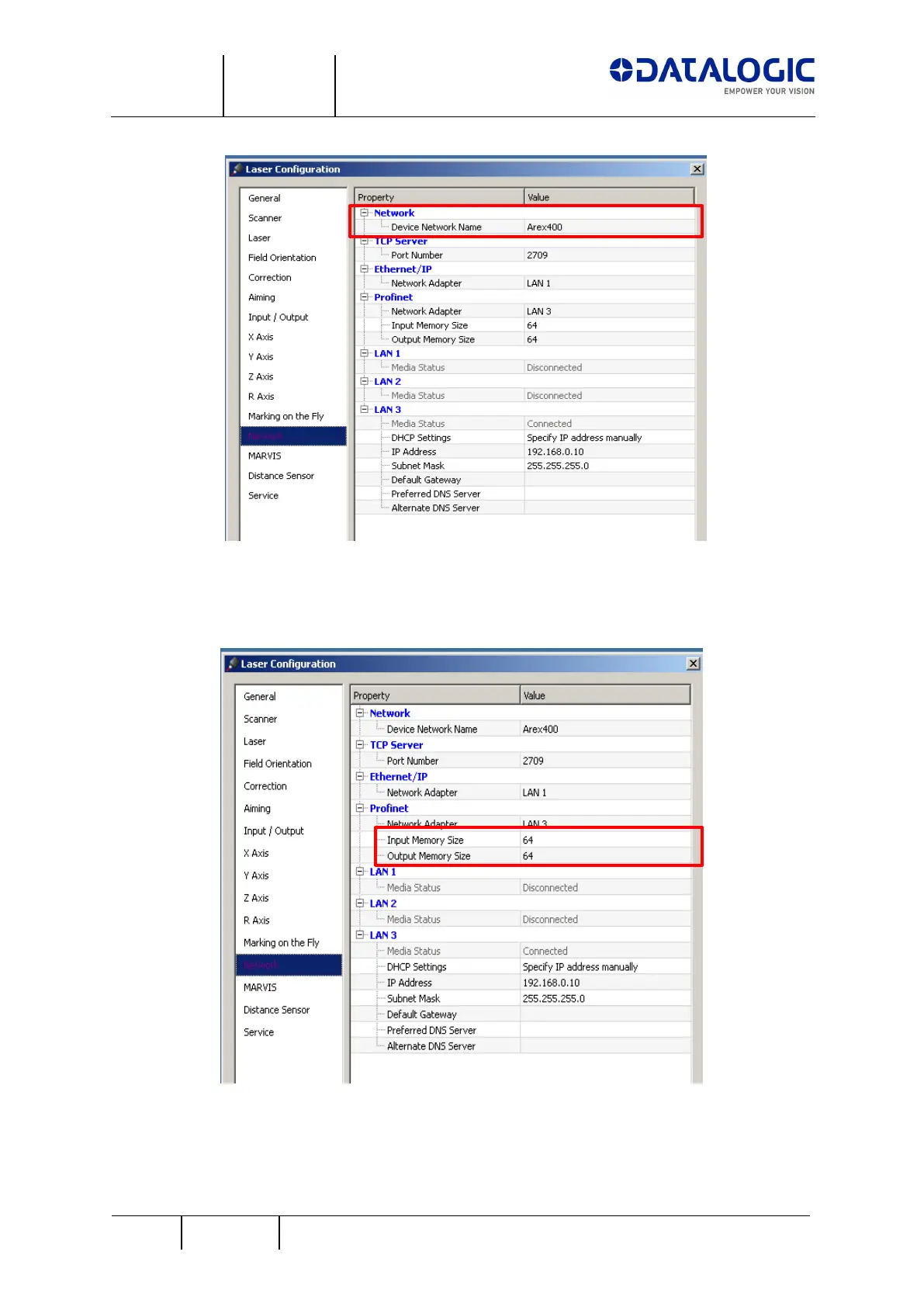

c) The size of the Input and Output Memory Maps has to be set also inside the
‘Profinet’ section, choosing from the 3 possible sizes expressed in Bytes (64,
128 or 254).
d) Once these parameters have been set, press ‘Apply’ followed by ‘OK’ on the
bottom of the Interface.
