Datalogic DS2100N Quick Reference Guide

DS2100N QUICK GUIDE
11
STEP 5 – TEST MODE
Use a code suitable to your application to test the system. Alternatively, you can use the Datalogic Test Chart
(Interleaved 2/5 or Code 39).
1. Enter the Test mode function by holding the X-PRESS™ push button pressed until the TEST LED is on.
2. Release the button to enter the Test mode function.
Once entered, the Bar-Graph on the five LEDs is activated and if the scanner starts reading barcodes the
Bar-Graph shows the Good Read Rate. In case of no read condition, only the STATUS LED is on and blinks.
green
green
yellow
yellow
red
SETUP
LEARN
TEST
READY
GOOD
TRIGGER
COM
STATUS

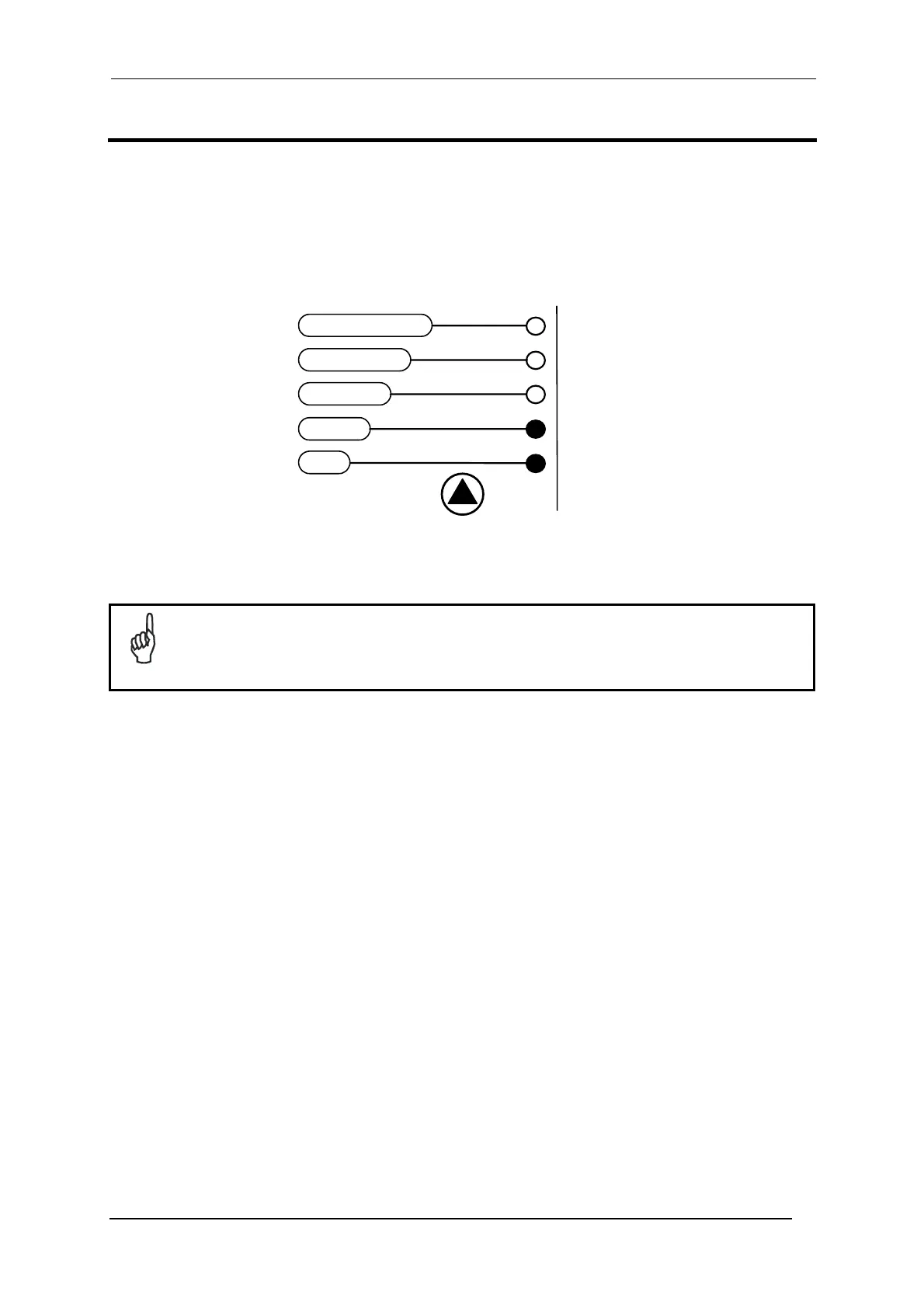

Figure 8 – X-PRESS™ Interface: Test Mode Function
3. To exit the Test Mode, press the X-PRESS™ push button once.
NOTE
By default, the Test Mode exits automatically after two minutes.
