Datalogic DS2100N Quick Reference Guide

DS2100N QUICK GUIDE
5
STEP 2 – MOUNT AND POSITION THE SCANNER
1. To mount the DS2100N, use the mounting bracket to obtain the most suitable position for the reader as
shown in the figures below.

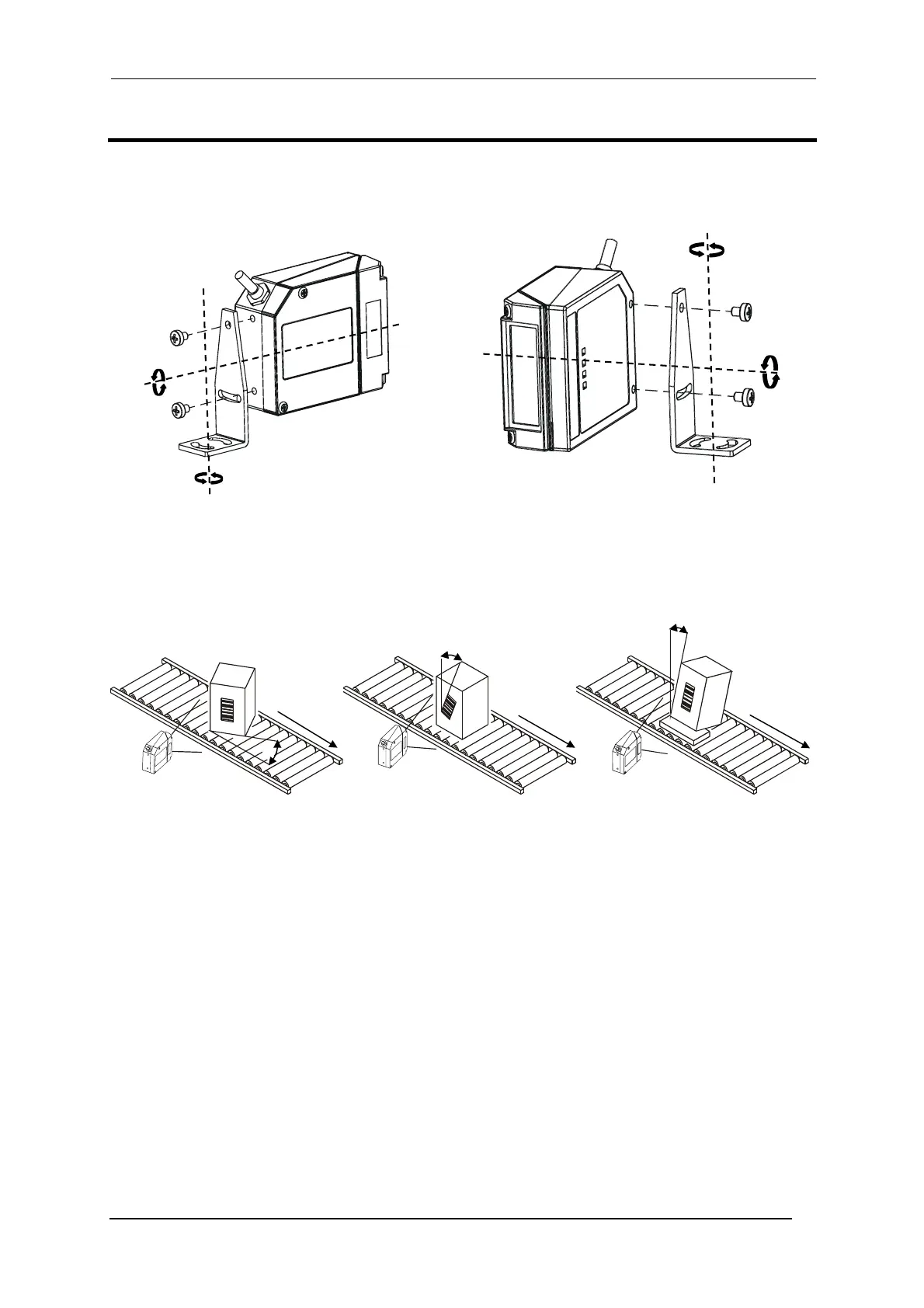

Figure 3 - Positioning with Mounting Bracket
2. When mounting the DS2100N take into consideration these three ideal label position angles:, Skew 10° to 30°,
Tilt 0° and Pitch 0°.
Assure at least 10° Minimize Minimize
Figure 4 –, Skew, Tilt and Pitch Angles
3. Refer to the Reading Diagrams in the Appendix of this Quick Reference Guide to decide the distance your
scanner should be positioned at.
P
Skew
Tilt
Skew
Pitch
T
S
