Datalogic DS4600A

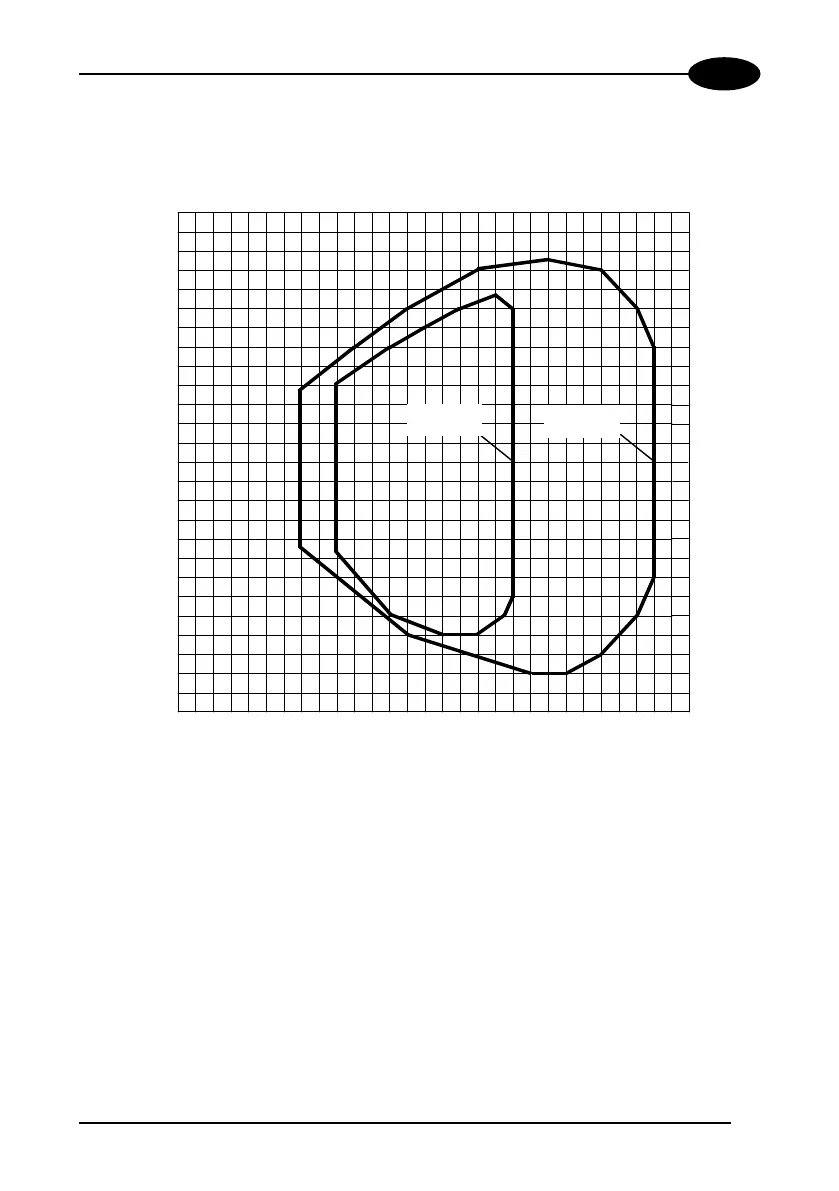

READING FEATURES
3
DS4600A-22XX (Short Range)
2
1
0
-1
5
4
3
-2
-3
-4
-5
(in)
01 3 2 106
(in)
45 7 8 9
0
20
40 60
80 100 120
140
160
180
200
220
240
260
(mm)
120
100
80
60
40
20
0
-20
-40
-60
-80
-100
-120
(mm)
280
11
0.20 mm
(8 mils)
0.30 mm
(12 mils)
NOTE: (0,0) is the center of the laser beam output window
CONDITIONS
Code = Interleaved 2/5 or Code 39
PCS = 0.90
"Pitch" angle = 0
°
"Skew" angle = 10
°
"Tilt" angle = 0
°
*SW Resolution = High
* Parameter selectable in WinHost
33
