Datalogic DS4600A User Manual

READING FEATURES
3

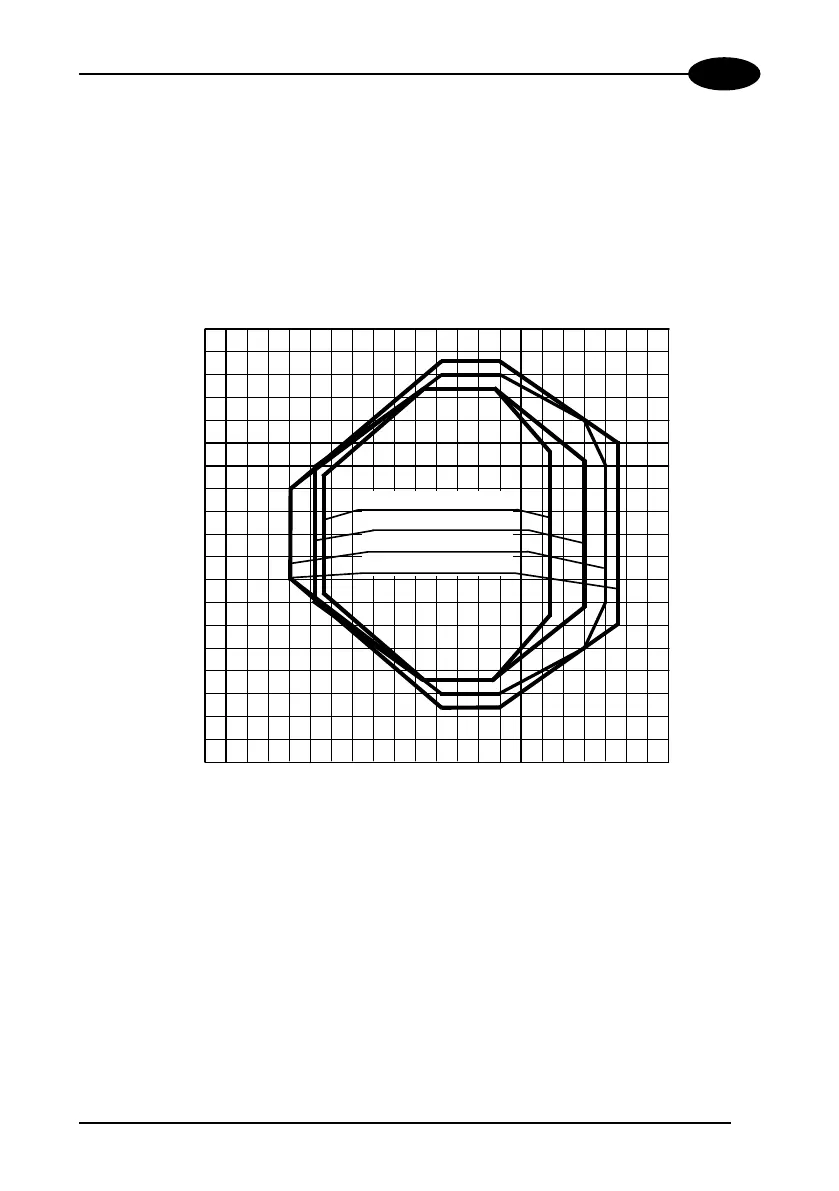

3.4 READING DIAGRAMS
The following diagrams show the reading distance for barcodes with different
densities.
DS4600A-210X (Long Range)
4
-4
12
-12
-16
(in)
0 4 2012
(in)
8 16
0
100 200 300 400 500 600 700 800 900 1000
(mm)
400
300
200
100
0
-100
-200
-300
-400
(mm)
24 28 32 36 40
16
8
-8
0.50 mm
(20 mils)
0.60 mm
(24 mils)
0.80 mm
(31 mils)
1.00 mm
(40 mils)
NOTE: (0,0) is the center of the laser beam output window
CONDITIONS:
Test Codes used = Interleaved 2/5 and Code 39
"Pitch" angle = 0
°
"Skew" angle = 15
°
"Tilt" angle = 0
°
Code Resolution* = Standard for 0.50 mm (20 mils) codes and greater
Code Reading Cond.* = Standard
* Parameter selectable in WinHost
31
